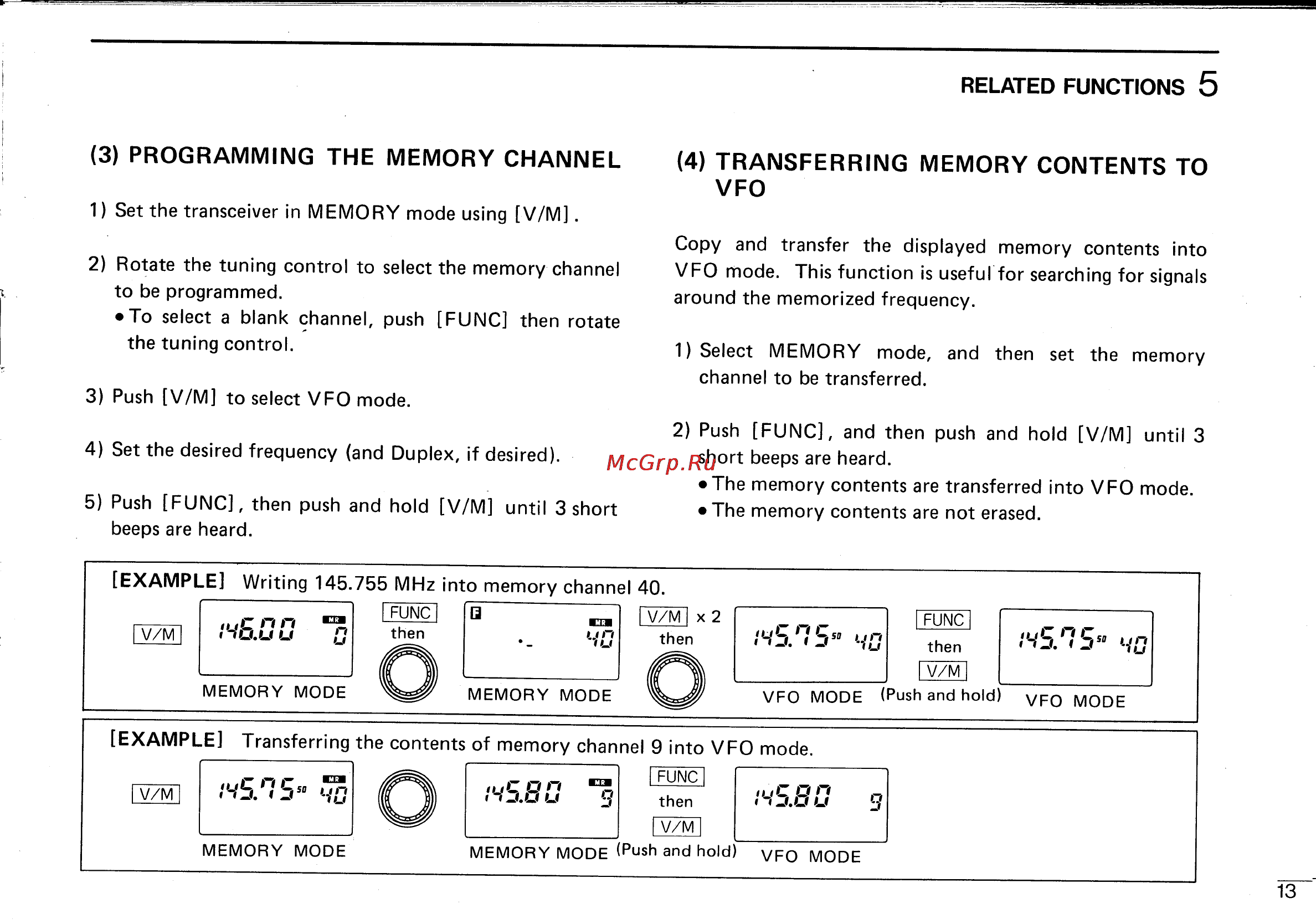

RELATED FUNCTIONS 5 3 PROGRAMMING THE MEMORY CHANNEL 4 TRANSFERRING MEMORY CONTENTS TO VFO 1 Set the transceiver in MEMORY mode using V M 2 Rotate the tuning control to select the memory channel to be programmed To select a blank channel push FUNC then rotate the tuning control Copy and transfer the displayed memory contents into VFO mode This function is usefulfor searching for signals around the memorized frequency 1 Select MEMORY mode and then set the memory channel to be transferred 3 Push V M to select VFO mode 2 Push FUNC and then push and hold V M until 3 short beeps are heard 4 Set the desired frequency and Duplex if desired The memory contents are transferred into VFO mode The memory contents are not erased 5 Push FUNC then push and hold V M until 3 short beeps are heard EXAMPLE Writing 145 755 MHz into memory channel 40 I V M I IHB B0 I FUNC then _ I II rt U IV M x 2 then 1 FUNC I IHS SU HQ WS 75M HQ 1 V M MEMORY MODE then MEMORY MODE VFO MODE Pushandhold VFO MODE EXAMPLE Transferring the contents of memory channel 9 into VFO mode V M H E TS HQ HS BG 1 FUNC then IHS BG 3 I V M I MEMORY MODE MEMORY MODE Push and hold VFQ MODE 13
