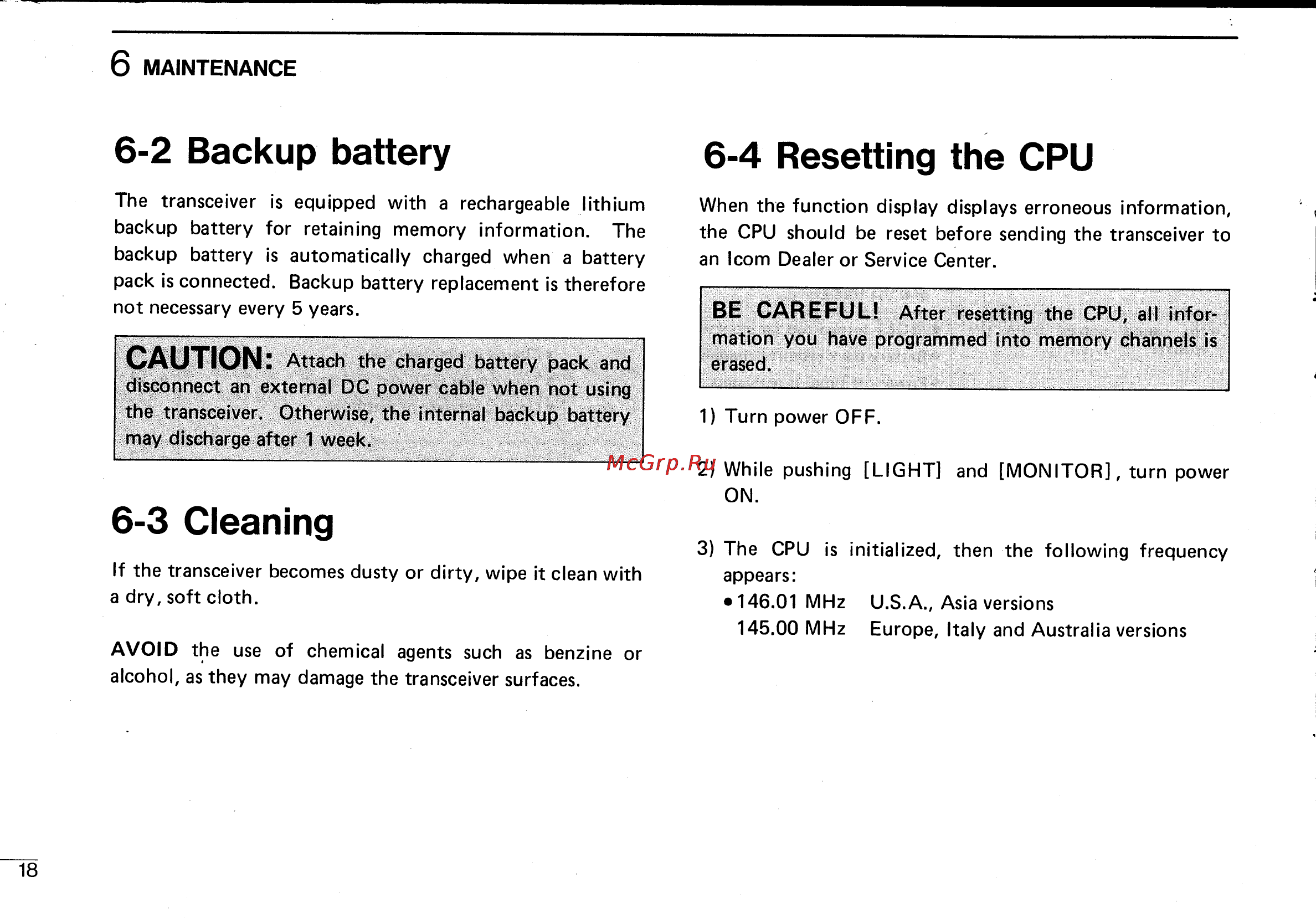

6 MAINTENANCE 6 2 Backup battery 6 4 Resetting the CPU The transceiver is equipped with a rechargeable lithium backup battery for retaining memory information The backup battery is automatically charged when a battery pack is connected Backup battery replacement is therefore not necessary every 5 years When the function display displays erroneous information the CPU should be reset before sending the transceiver to an Icom Dealer or Service Center CAUTION Attach the charged battery pack and disconnect an external DC power cable when not using the transceiver Otherwise the internal backup battery may discharge after 1 week BE CAREFUL After resetting the CPU all infor mation you have programmed into memory channels is erased 1 Turn power OFF 2 While pushing LIGHT and MONITOR turn power ON 6 3 Cleaning If the transceiver becomes dusty or dirty wipe it clean with a dry soft cloth AVOID the use of chemical agents such as benzine or alcohol as they may damage the transceiver surfaces 18 3 The CPU is initialized then the following frequency appears 146 01MHz U S A Asia versions 145 00 MHz Europe Italy and Australia versions
