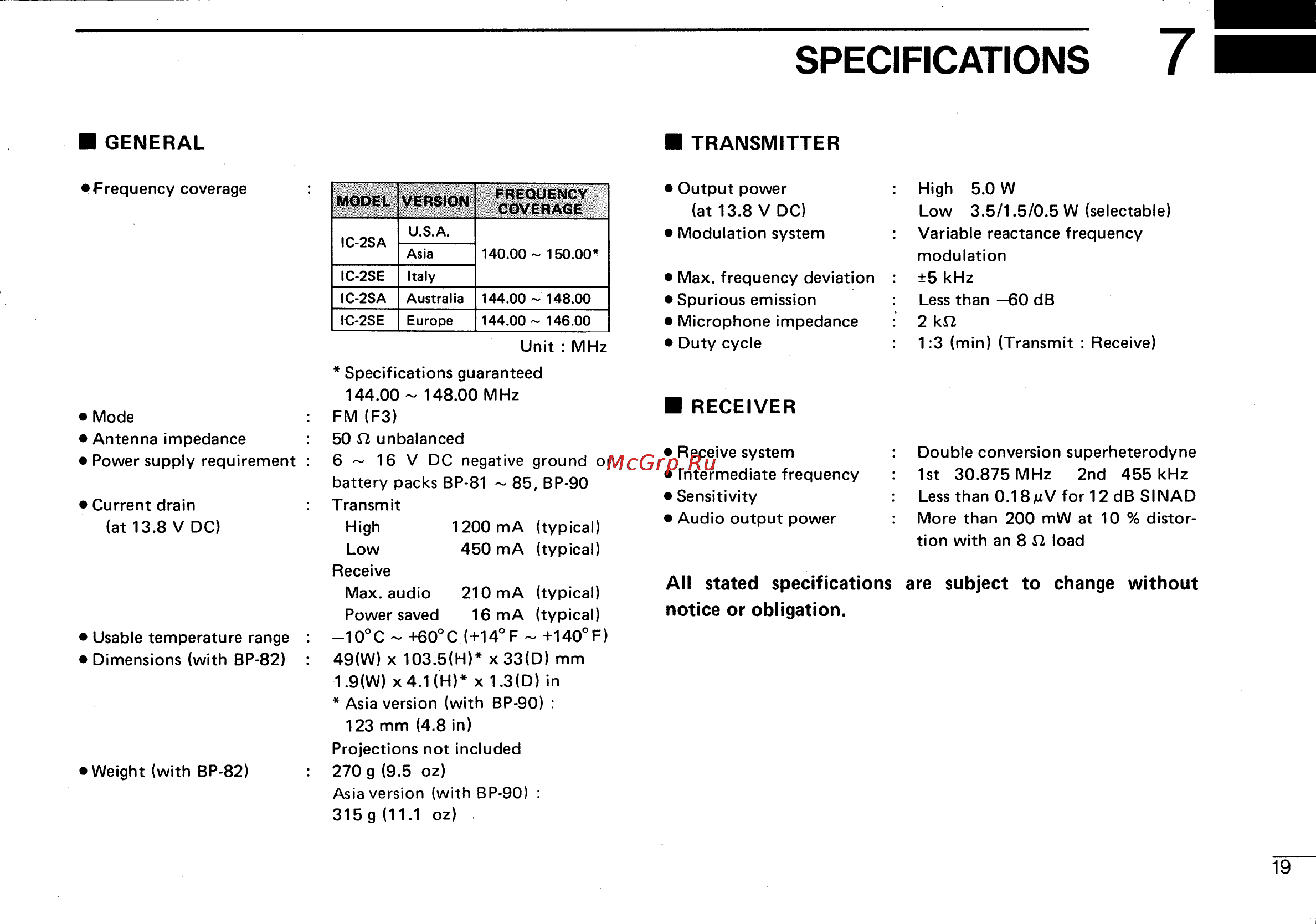

SPECIFICATIONS GENERAL Frequency coverage TRANSMUTER MODEL VERSION IC 2SA FREQUENCY COVERAGE U S A Asia 140 00 150 00 IC 2SE Italy IC 2SA Australia 144 00 148 00 IC 2SE Europe 144 00 146 00 Unit MHz Mode Antenna impedance Power supply requirement Current drain at 13 8 V DC Usable temperature range Dimensions with BP 82 Weight with BP 82 Output power at 13 8 V DC Modulation system Specifications guaranteed 144 00 148 00 MHz FM F3 50 2 unbalanced 6 16 V DC negative ground or battery packs BP 81 85 BP 90 Transmit High 1200 mA typical Low 450 mA typical Receive Max audio 210 mA typical Power saved 16 mA typical 10 C 60 C 14 F 140 F 49 W x 103 5 H x 33 D mm 1 9 W x 4 1 H x 1 3 D in Asia version with BP 90 123 mm 4 8 in Projections not included 270 g 9 5 oz Asia version with BP 90 315g 11 1 oz Max frequency deviation Spurious emission Microphone impedance Duty cycle High 5 0 W Low 3 5 1 5 0 5 W selectable Variable reactance frequency modulation 5 kHz Less than 60 dB 2 k 2 1 3 min Transmit Receive RECEIVER Receive system Intermediate frequency Sensitivity Audio output power Double conversion superheterodyne 1st 30 875 MHz 2nd 455 kHz Less than 0 1 8MV for 12 dB SINAD More than 200 mW at 10 distor tion with an 8 2 load All stated specifications are subject to change without notice or obligation 19
