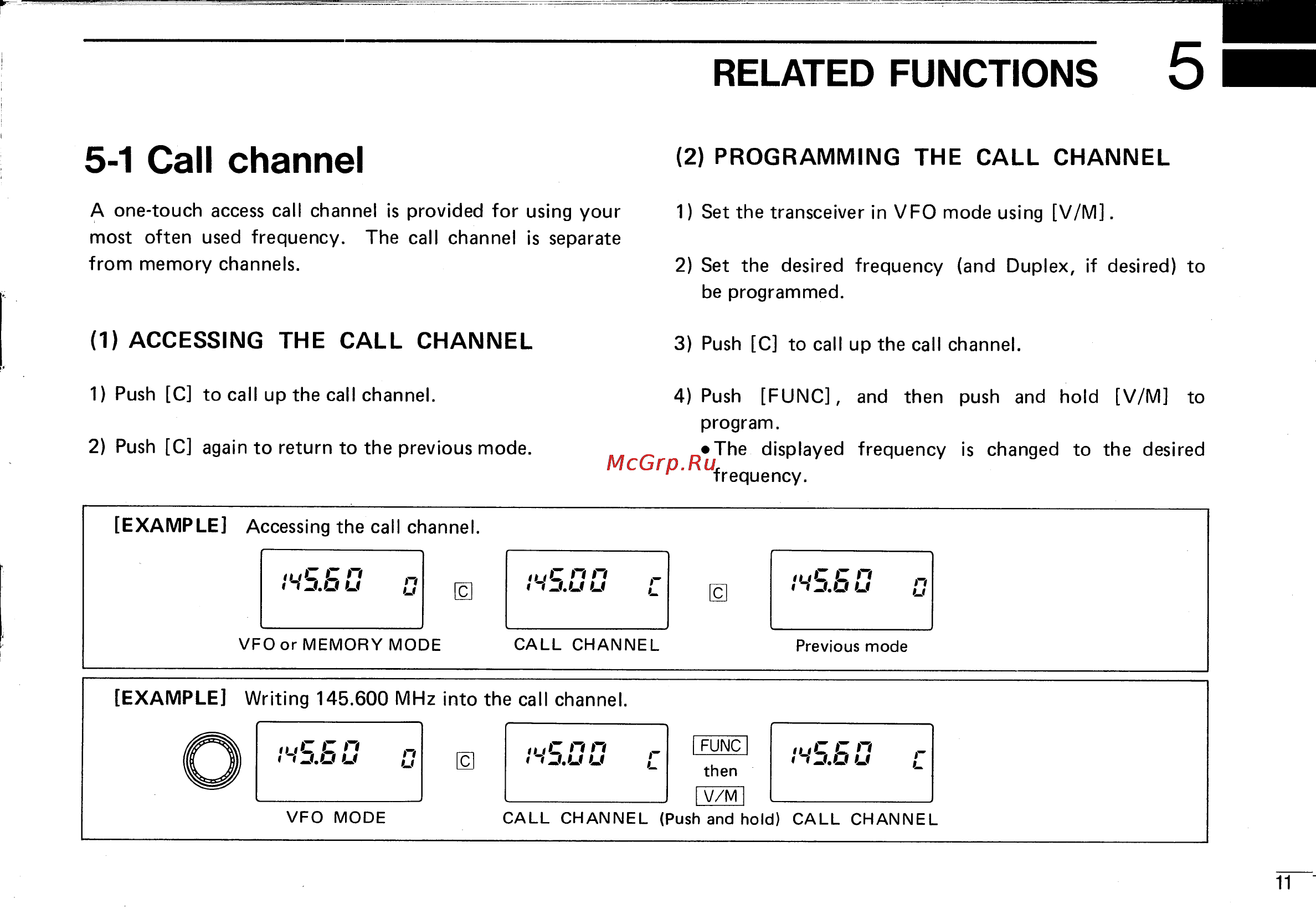

RELATED FUNCTIONS 5 1 Call channel 2 PROGRAMMING THE CALL CHANNEL A one touch access call channel is provided for using your most often used frequency The call channel is separate from memory channels 1 Set the transceiver in VFO mode using V M 5 2 Set the desired frequency and Duplex if desired to be programmed 1 ACCESSING THE CALL CHANNEL 3 Push C to call up the call channel 1 Push C to call up the call channel 4 Push FUNC and then push and hold V M to program The displayed frequency is changed to the desired frequency 2 Push C again to return to the previous mode 11
