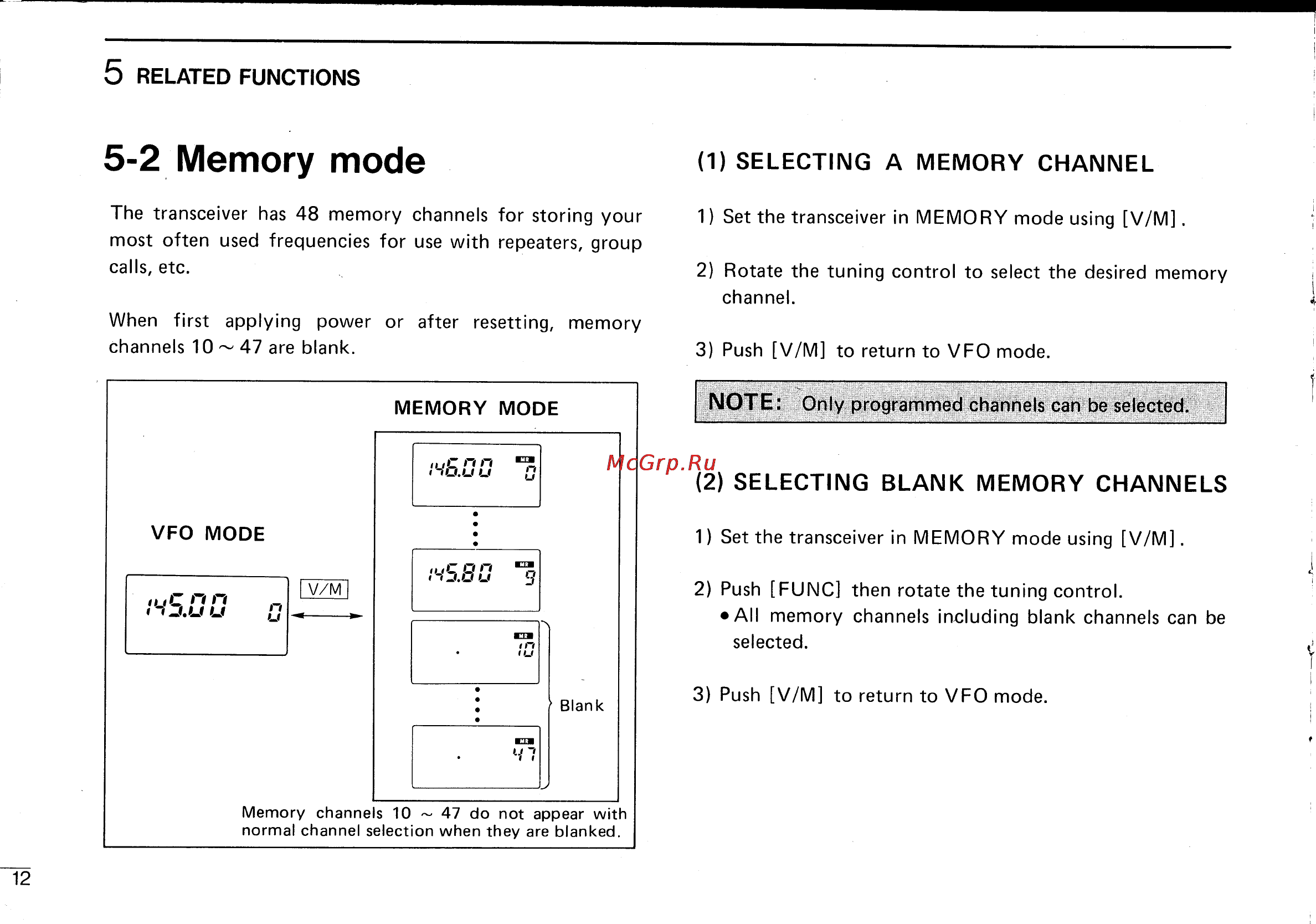

5 RELATED FUNCTIONS 5 2 Memory mode 1 SELECTING A MEMORY CHANNEL The transceiver has 48 memory channels for storing your most often used frequencies for use with repeaters group calls etc 1 Set the transceiver in MEMORY mode using V M When first applying power or after resetting memory channels 10 47 are blank MEMORY MODE 2 Rotate the tuning control to select the desired memory channel 3 Push V M to return to VFO mode NOTE Only programmed channels can be selected 2 SELECTING BLANK MEMORY CHANNELS VFO MODE 1 Set the transceiver in MEMORY mode using V M 2 Push FUNC then rotate the tuning control All memory channels including blank channels can be selected 3 Push V M to return to VFO mode Memory channels 10 47 do not appear with normal channel selection when they are blanked
