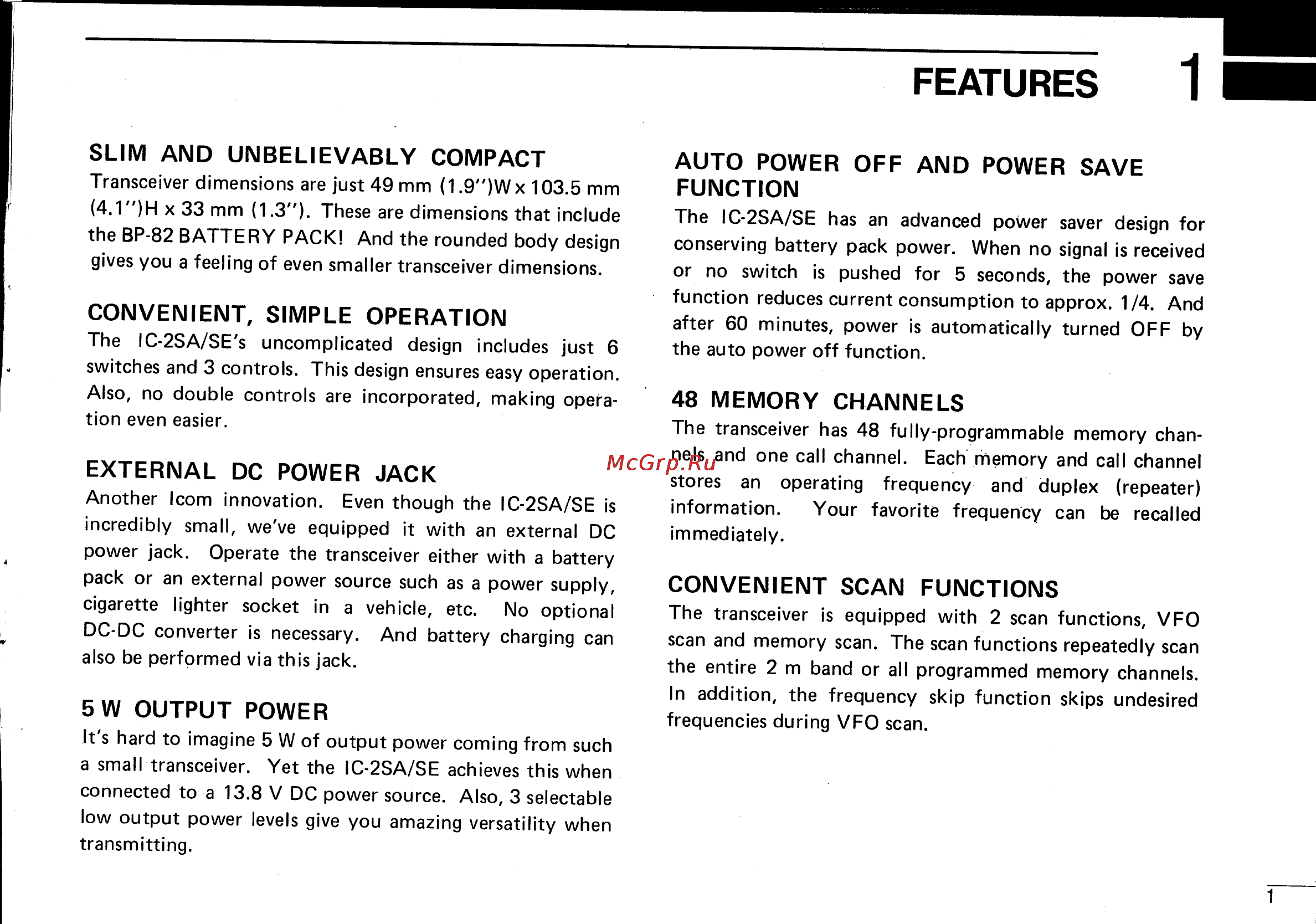

FEATURES SLIM AND UNBELIEVABLY COMPACT Transceiver dimensions are just 49 mm 1 9 Wx 103 5 mm 4 r H x 33 mm 1 3 These are dimensions that include the BP 82 BATTERY PACK And the rounded body design gives you a feeling of even smaller transceiver dimensions CONVENIENT SIMPLE OPERATION The IC 2SA SE s uncomplicated design includes just 6 switches and 3 controls This design ensures easy operation Also no double controls are incorporated making opera tion even easier EXTERNAL DC POWER JACK Another Icom innovation Even though the IC 2SA SE is incredibly small we ve equipped it with an external DC power jack Operate the transceiver either with a battery pack or an external power source such as a power supply cigarette lighter socket in a vehicle etc No optional DC DC converter is necessary And battery charging can also be performed via this jack 5W OUTPUT POWER AUTO POWER OFF AND POWER SAVE FUNCTION The IC 2SA SE has an advanced power saver design for conserving battery pack power When no signal is received or no switch is pushed for 5 seconds the power save function reduces current consumption to approx 1 4 And after 60 minutes power is automatically turned OFF by the auto power off function 48 MEMORY CHANNELS The transceiver has 48 fully programmable memory chan nels and one call channel Each rhemory and call channel stores an operating frequency and duplex repeater information Your favorite frequency can be recalled immediately CONVENIENT SCAN FUNCTIONS The transceiver is equipped with 2 scan functions VFO scan and memory scan The scan functions repeatedly scan the entire 2 m band or all programmed memory channels In addition the frequency skip function skips undesired frequencies during VFO scan It s hard to imagine 5 W of output power coming from such a small transceiver Yet the IC 2SA SE achieves this when connected to a 13 8 V DC power source Also 3 selectable low output power levels give you amazing versatility when transmitting 1
