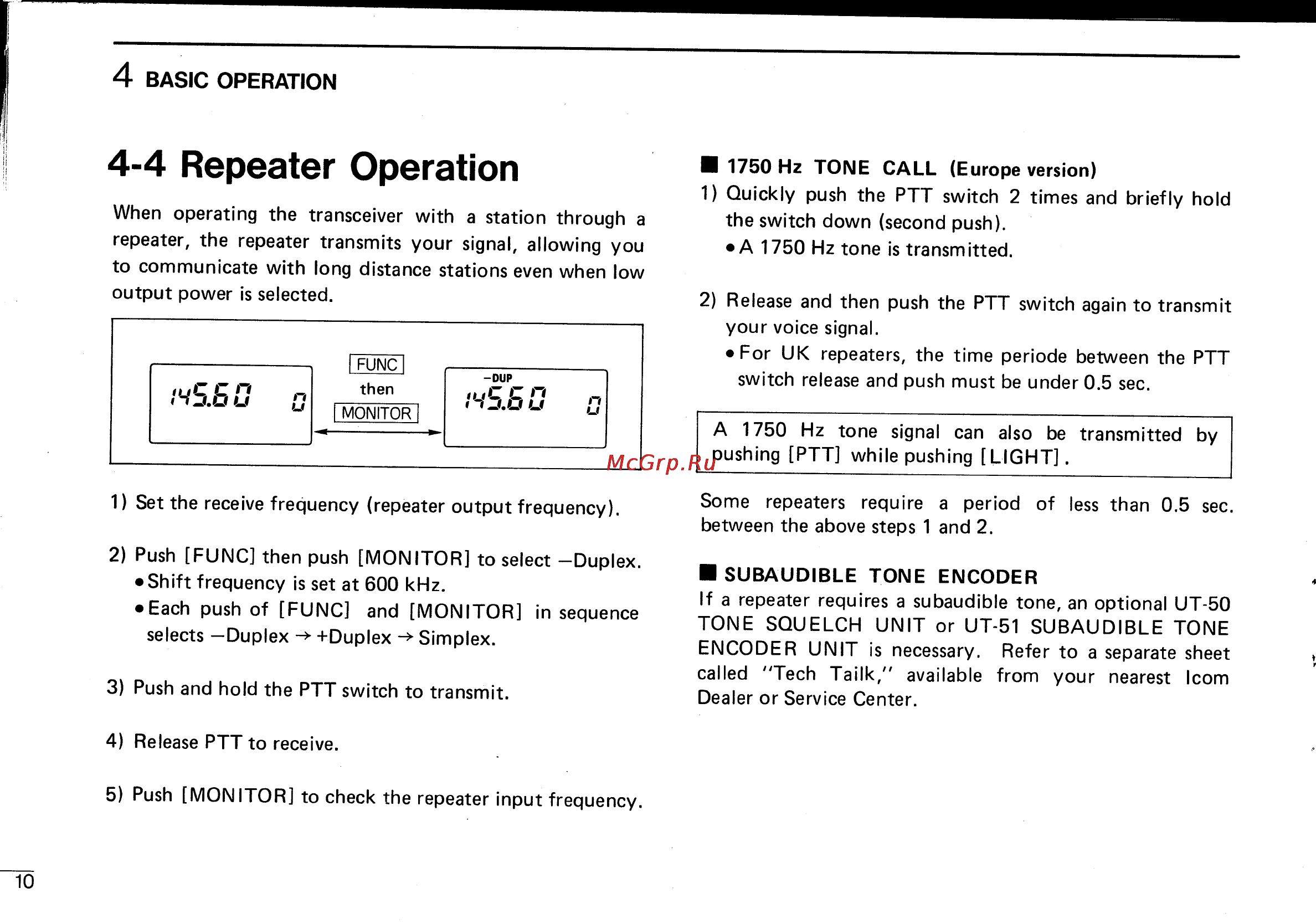

4 BASIC OPERATION 4 4 Repeater Operation When operating the transceiver with a station through a repeater the repeater transmits your signal allowing you to communicate with long distance stations even when low output power is selected 1750 Hz TONE CALL Europe version 1 Quickly push the PTT switch 2 times and briefly hold the switch down second push A 1750 Hz tone is transmitted 2 Release and then push the PTT switch again to transmit your voice signal For UK repeaters the time periode between the PTT switch release and push must be under 0 5 sec A 1750 Hz tone signal can also be transmitted by pushing PTT while pushing LIGHT 1 Set the receive frequency repeater output frequency 2 Push FUNC then push MONITOR to select Duplex Shift frequency is set at 600 kHz Each push of FUNC and MONITOR in sequence selects Duplex Duplex Simplex 3 Push and hold the PTT switch to transmit 4 Release PTT to receive 5 Push MONITOR to check the repeater input frequency 10 Some repeaters require a period of less than 0 5 sec between the above steps 1 and 2 SUBAUDIBLE TONE ENCODER If a repeater requires a subaudible tone an optional UT 50 TONE SQUELCH UNIT or UT 51 SUBAUDIBLE TONE ENCODER UNIT is necessary Refer to a separate sheet called Tech Tailk available from your nearest Icom Dealer or Service Center
