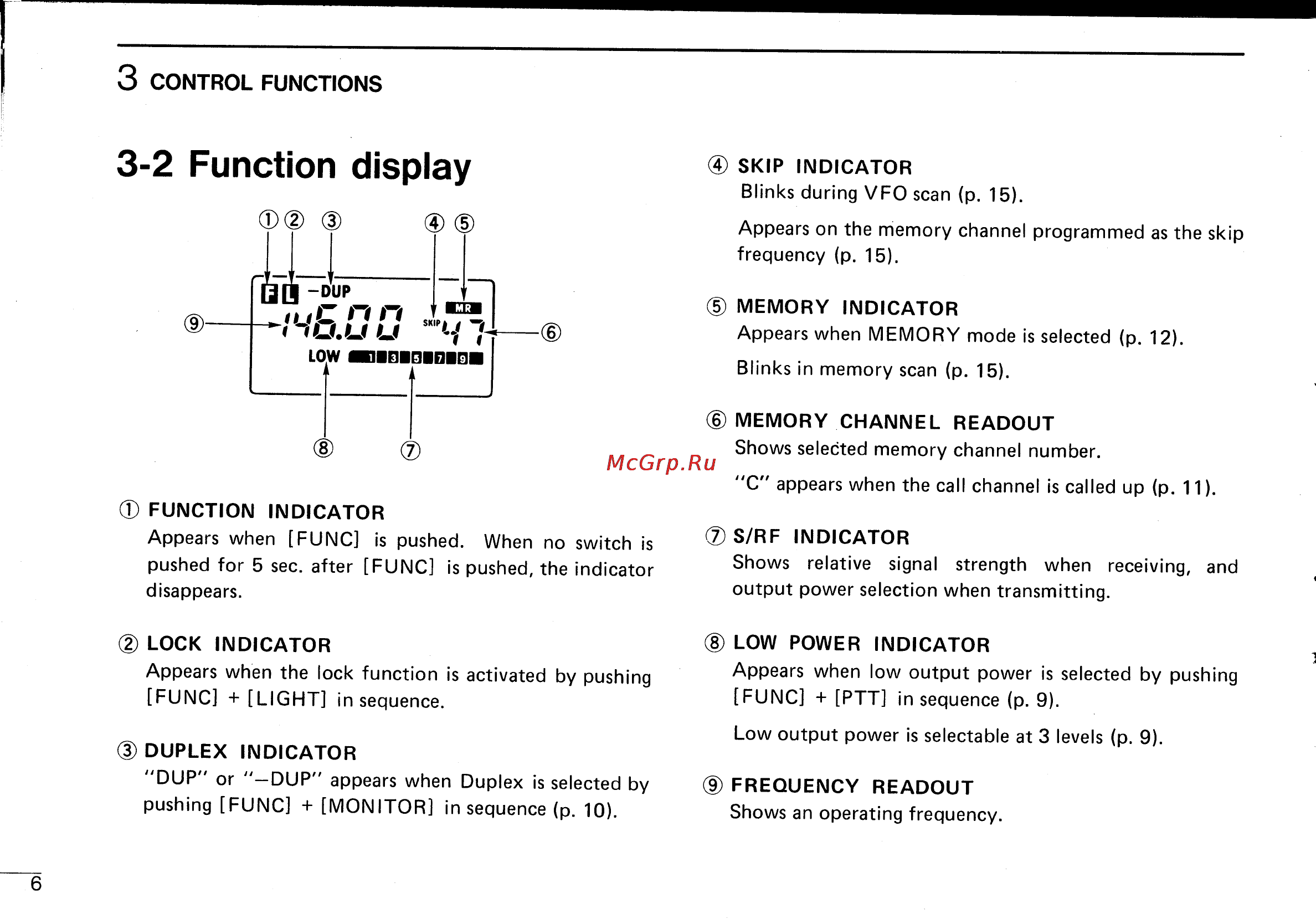

3 CONTROL FUNCTIONS 3 2 Function display QB DUP Hn nO lj U SKIP INDICATOR Blinks during VFO scan p 15 Appears on the memory channel programmed as the skip frequency p 15 P KEB t SK u LOW ininanina MEMORY INDICATOR Appears when MEMORY mode is selected p 12 Blinks in memory scan p 15 MEMORY CHANNEL READOUT Shows selected memory channel number appears when the call channel is called up p 11 FUNCTION INDICATOR Appears when FUNC is pushed When no switch is pushed for 5 sec after FUNC is pushed the indicator disappears LOCK INDICATOR Appears when the lock function is activated by pushing FUNC LIGHT in sequence DUPLEX INDICATOR DUP or DUP appears when Duplex is selected by pushing FUNC MONITOR in sequence p 10 S RF INDICATOR Shows relative signal strength when receiving and output power selection when transmitting LOW POWER INDICATOR Appears when low output power is selected by pushing FUNC PTT in sequence p 9 Low output power is selectable at 3 levels p 9 FREQUENCY READOUT Shows an operating frequency
