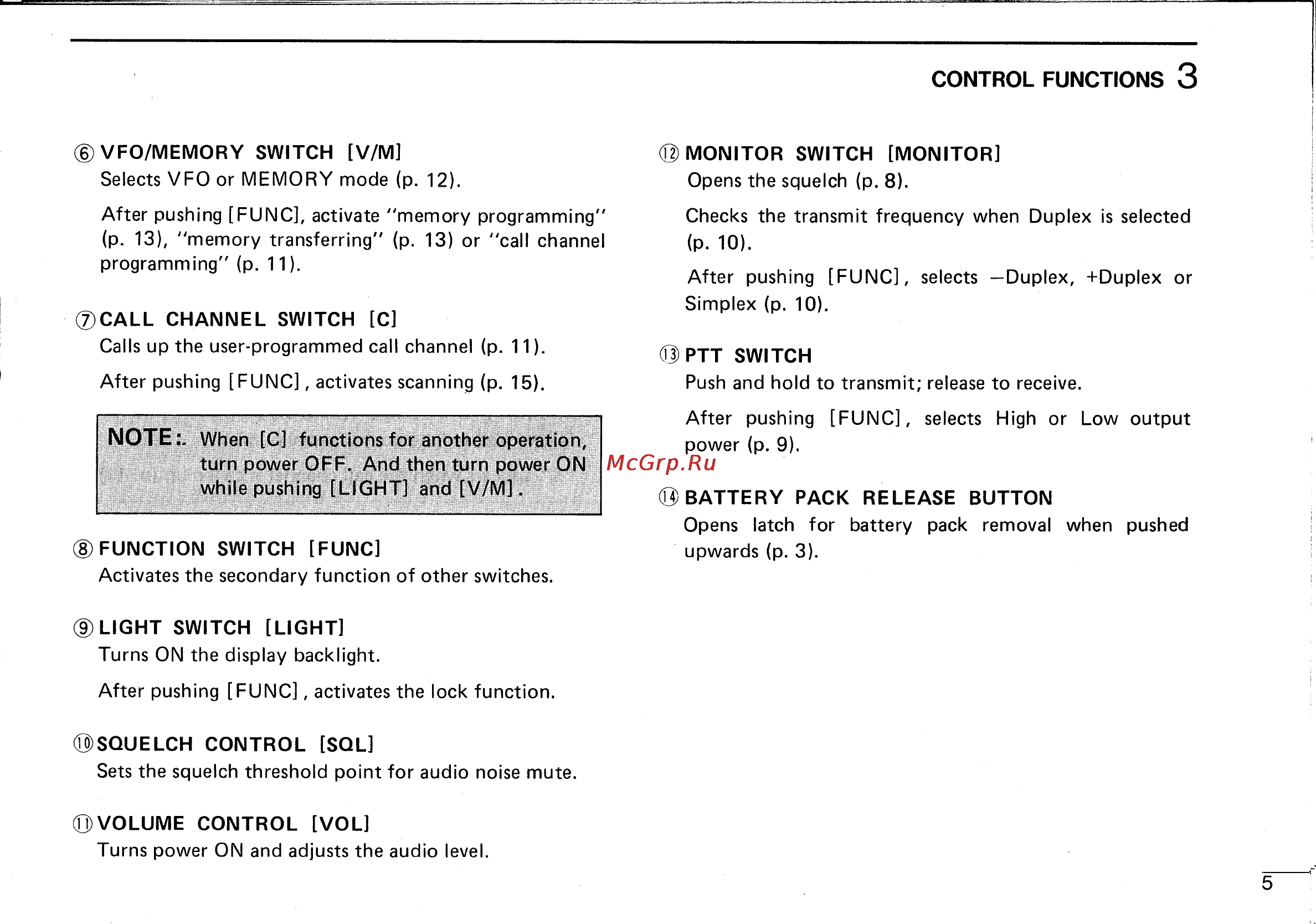

CONTROL FUNCTIONS 3 VFO MEMORY SWITCH V M Selects VFO or MEMORY mode p 12 After pushing FUNC activate memory programming p 13 memory transferring p 13 or call channel programming p 11 CALL CHANNEL SWITCH C Calls up the user programmed call channel p 11 After pushing FUNC activates scanning p 15 NOTE When C functions for another operation turn power OFF And then turn power ON while pushing LIGHT and V M FUNCTION SWITCH FUNC Activates the secondary function of other switches MONITOR SWITCH MONITOR Opens the squelch p 8 Checks the transmit frequency when Duplex is selected p 10 After pushing FUNC selects Duplex Duplex or Simplex p 10 PTT SWITCH Push and hold to transmit release to receive After pushing FUNC selects High or Low output power p 9 BATTERY PACK RELEASE BUTTON Opens latch for battery pack removal when pushed upwards p 3 LIGHT SWITCH LIGHT Turns ON the display backlight After pushing FUNC activates the lock function SQUELCH CONTROL SQL Sets the squelch threshold point for audio noise mute VOLUME CONTROL VOL Turns power ON and adjusts the audio level 5
