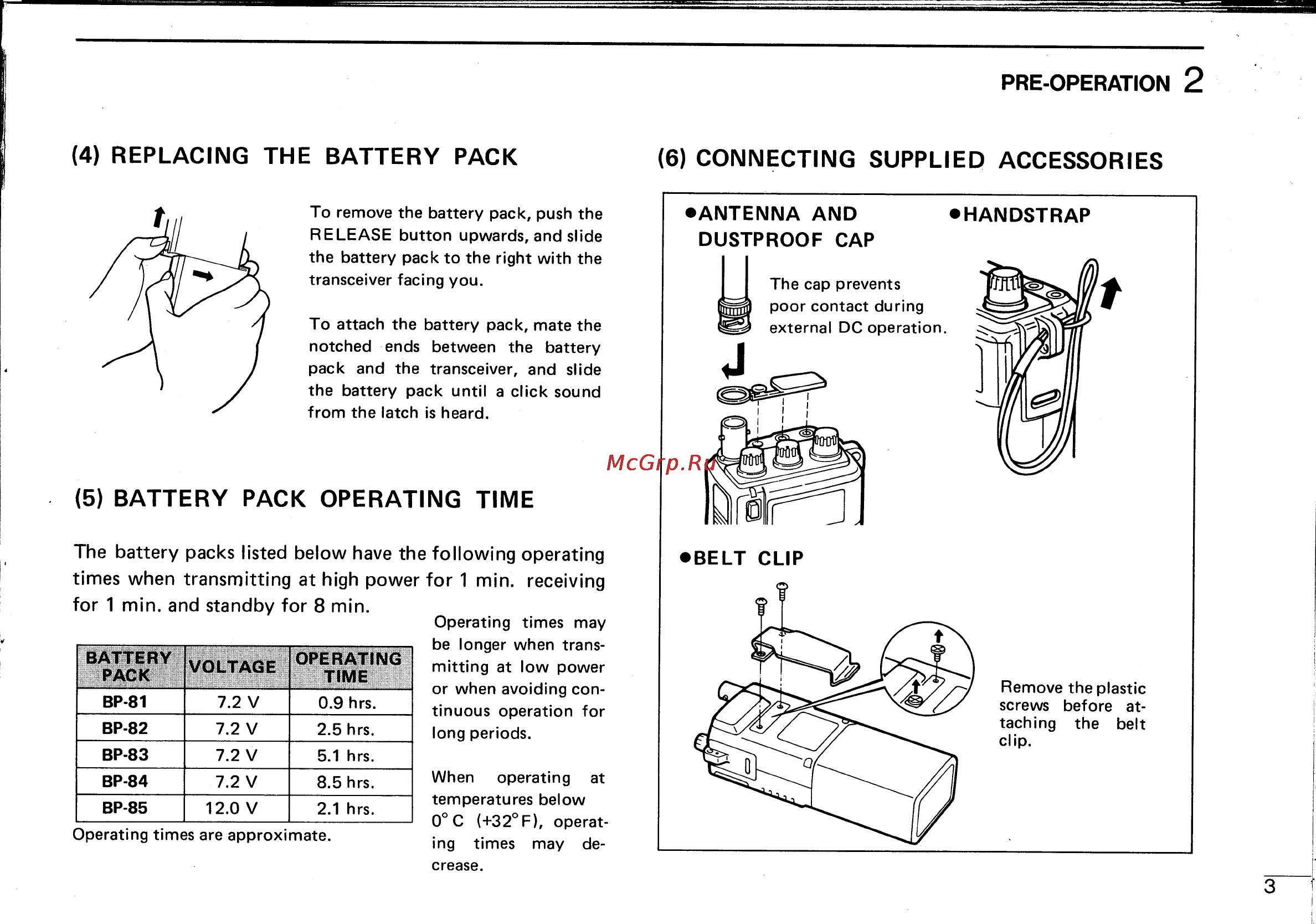

PRE OPERATION 2 4 REPLACING THE BATTERY PACK To remove the battery pack push the RELEASE button upwards and slide the battery pack to the right with the transceiver facing you 6 CONNECTING SUPPLIED ACCESSORIES ANTENNA AND DUSTPROOF CAP HANDSTRAP To attach the battery pack mate the notched ends between the battery pack and the transceiver and slide the battery pack until a click sound from the latch is heard 5 BATTERY PACK OPERATING TIME The battery packs listed below have the following operating times when transmitting at high power for 1 min receiving for 1 min and standby for 8 min BATTERY PACK VOLTAGE OPERATING TIME BP 81 7 2 V 0 9 hrs BP 82 7 2 V 2 5 hrs BP 83 7 2 V 5 1 hrs BP 84 7 2 V 8 5 hrs BP 85 12 0 V 2 1 hrs Operating times are approximate Operating times may be longer when trans mitting at low power or when avoiding con tinuous operation for long periods BELT CLIP Remove the plastic screws before at taching the belt clip When operating at temperatures below 0 C 32 F operat ing times may decrease 3
