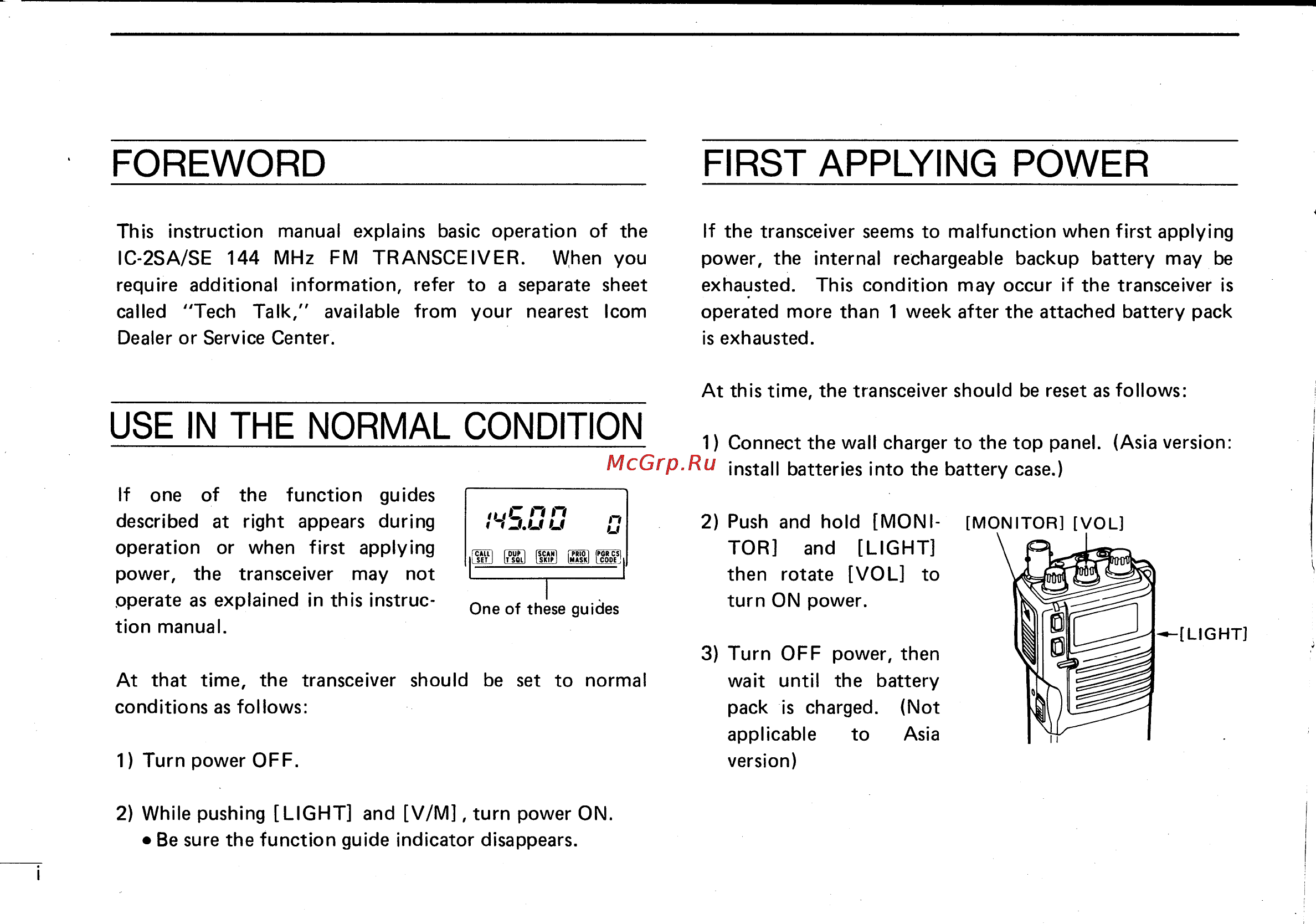

FOREWORD FIRST APPLYING POWER This instruction manual explains basic operation of the IC 2SA SE 144 MHz FM TRANSCEIVER When you require additional information refer to a separate sheet called Tech Talk available from your nearest Icom Dealer or Service Center If the transceiver seems to malfunction when first applying power the internal rechargeable backup battery may be exhausted This condition may occur if the transceiver is operated more than 1 week after the attached battery pack is exhausted At this time the transceiver should be reset as follows USE IN THE NORMAL CONDITION If one of the function guides described at right appears during operation or when first applying power the transceiver may not operate as explained in this instruc tion manual One of these guides At that time the transceiver should be set to normal conditions as follows 1 Turn power OFF 2 While pushing LIGHT and V M turn power ON Be sure the function guide indicator disappears 1 Connect the wall charger to the top panel Asia version install batteries into the battery case 2 Push and hold MONI TOR and LIGHT then rotate VOL to turn ON power 3 Turn OFF power then wait until the battery pack is charged Not applicable to Asia version
