SiBE18-821 Indoor Unit (RA Models)
Function 93
7.9 2 AREA INTELLIGENT EYE (FTXS-G)
The following functions can be performed by a human motion sensor (INTELLIGENT EYE).
1. Reduces the capacity when there is no human in the room in order to save electricity.
(energy saving operation)
2. Divides the room into plural areas and detects existence of humans in each area.
Shifts the airflow direction to the area having no human automatically to avoid direct airflow
on humans.

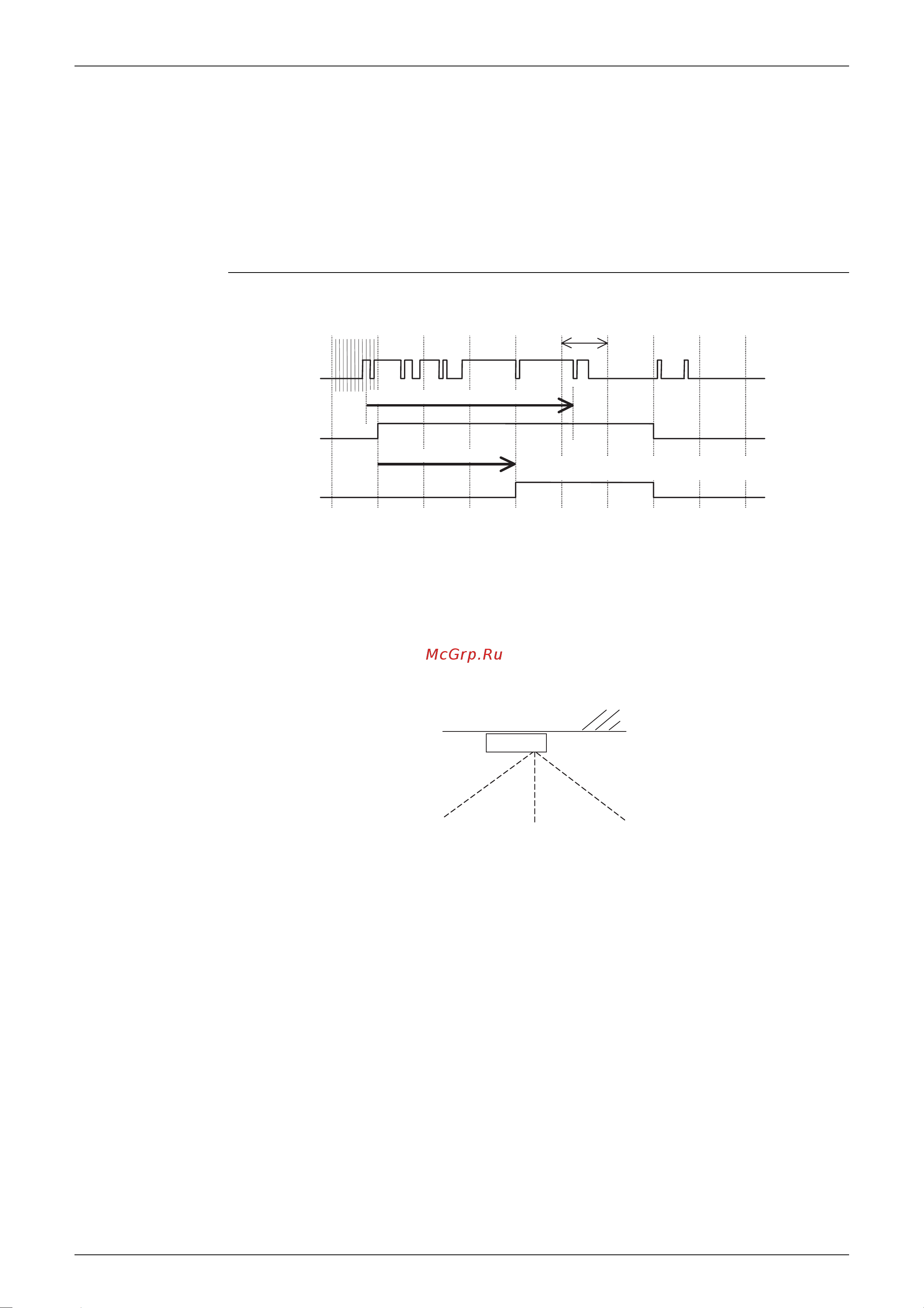

Processing 1. Detection method by INTELLIGENT EYE
This sensor detects human motion by receiving infrared rays and displays the pulse wave
output.
A microcomputer in an indoor unit carries out a sampling every 20 msec. and if it detects 10
cycles of the wave in one second in total (corresponding to 20msec.× 10 = 200msec.), and
when the ON signal continues 3 sec., it judges human is in the room as the motion signal is
ON
INTELLIGENT EYE sensor is divided into 2 areas and detects humans in each area.
.
If the sensor detects the outputs 10 times/sec.
or more, it judges humans exist.
1sec
sampling (20msec)
High
Low
ON
OFF
Sensor output
(Human motion)
Human detection
signal
ON
OFF
Detection signal
from the sensor
(R2821)
(Condition of 10 times or more output)
(Continue 3 sec.)
If the detection signal (ON) continues 3 sec. or more,
it judges humans exist.
Image of 2 AREA INTELLIGENT EYE
Top view
(R3854)
Indoor unit
Wall
Area AArea B
· A microcomputer judges human existence in
area A and B by the sensor signal from each
