Troubleshooting for Outdoor Unit SiBE18-821
316 Troubleshooting
7.13 Malfunction of Thermistor (R7T) for Outdoor Unit Liquid
Pipe
Remote
Controller
Display
J7
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Malfunction is detected from the temperature detected by the liquid pipe thermistor.
Malfunction
Decision
Conditions
When a short circuit or an open circuit in the heat exchange thermistor is detected.
Supposed
Causes
Defect of thermistor (R7T) for outdoor unit liquid pipe
Defect of outdoor unit PCB (A1P)

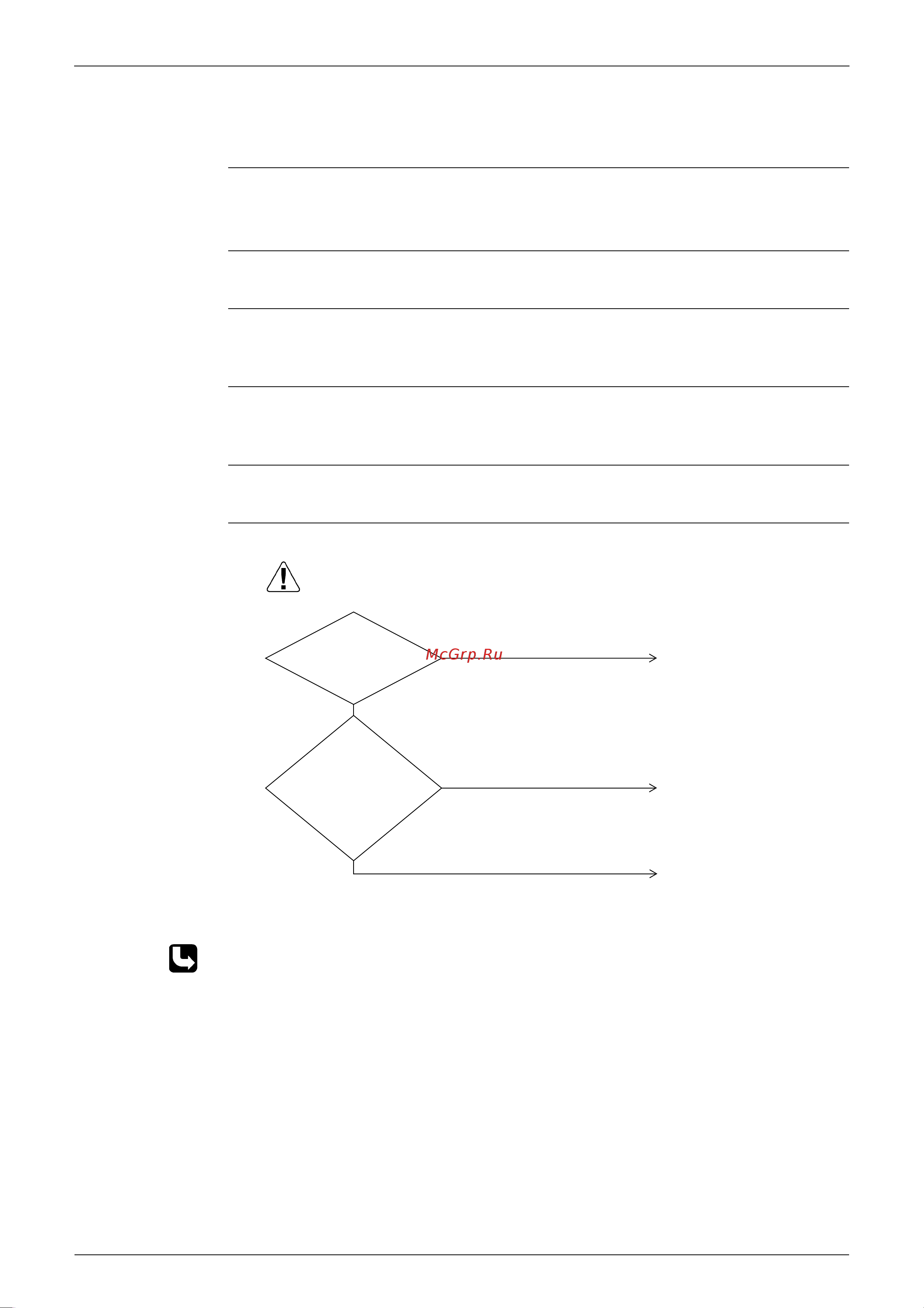

Troubleshooting
∗
Refer to thermistor resistance / temperature characteristics table on P349.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Connector is
connected to outdoor unit
PC board (A1P).
Resistance
is normal when
measured after
disconnecting the thermistor
(R7T) from the outdoor
unit PC board.
(3.5kΩ~
360kΩ)
Replace outdoor unit PC
board (A1P).
(Q0561)
Connect the thermistor
and turn on again.
NO
Replace the thermistor
(R7T).
NO
YES
YES
