SiBE18-821 Field Setting for SkyAir Indoor Unit
Test Operation 161
Multiple Settings
A/b
When the indoor is being operating by outside control (central remote controller, etc.), it
sometimes does not respond to ON/OFF and temperature setting commands from this remote
controller. Check what setting the customer wants and make the multiple setting as shown
below.

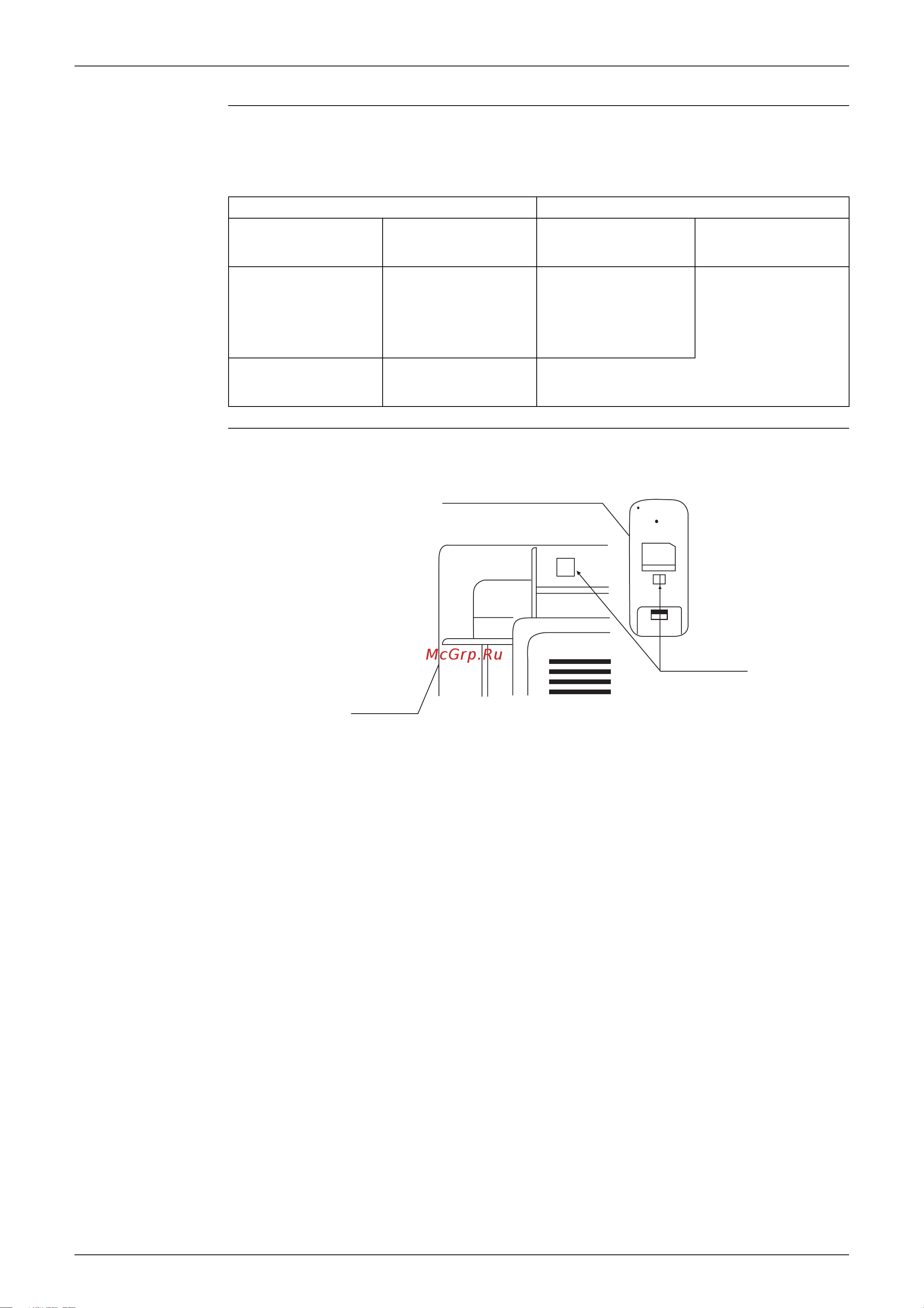

After Setting Stick the Unit No. label at decoration panel air discharge outlet as well as on the back of the
wireless remote controller.
PRECAUTIONS
Set the Unit No. of the receiver and the wireless remote controller to be equal. If the settings
differ, the signal from the remote controller cannot be transmitted.
Remote Controller Indoor Unit
Multiple Setting Remote Controller
Display
Controlled by other Air
Conditioners and
Devices
For other than on Left
A: Standard All items Displayed. Commands other than
ON/OFF and
Temperature Setting
Accepted. (1 LONG
BEEP or 3 SHORT
BEEPS Emitted)
b: Multiple display Operations set only is
displayed shortly after
execution.
All Commands Accepted (2 SHORT BEEPS)
Wireless remote controller
Unit No. label
Decoration
panel
1
