SiBE18-821 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 25
1.1.3 Noise Filter PCB (A3P)
Connectors 1) LA, NA Terminal for X1M (Power Supply)
2) LB, NB Terminal for Main PCB (A1P)
3) E Terminal for Earth
Note: Other Designation
1) F1U Fuse (250V 6.3A)

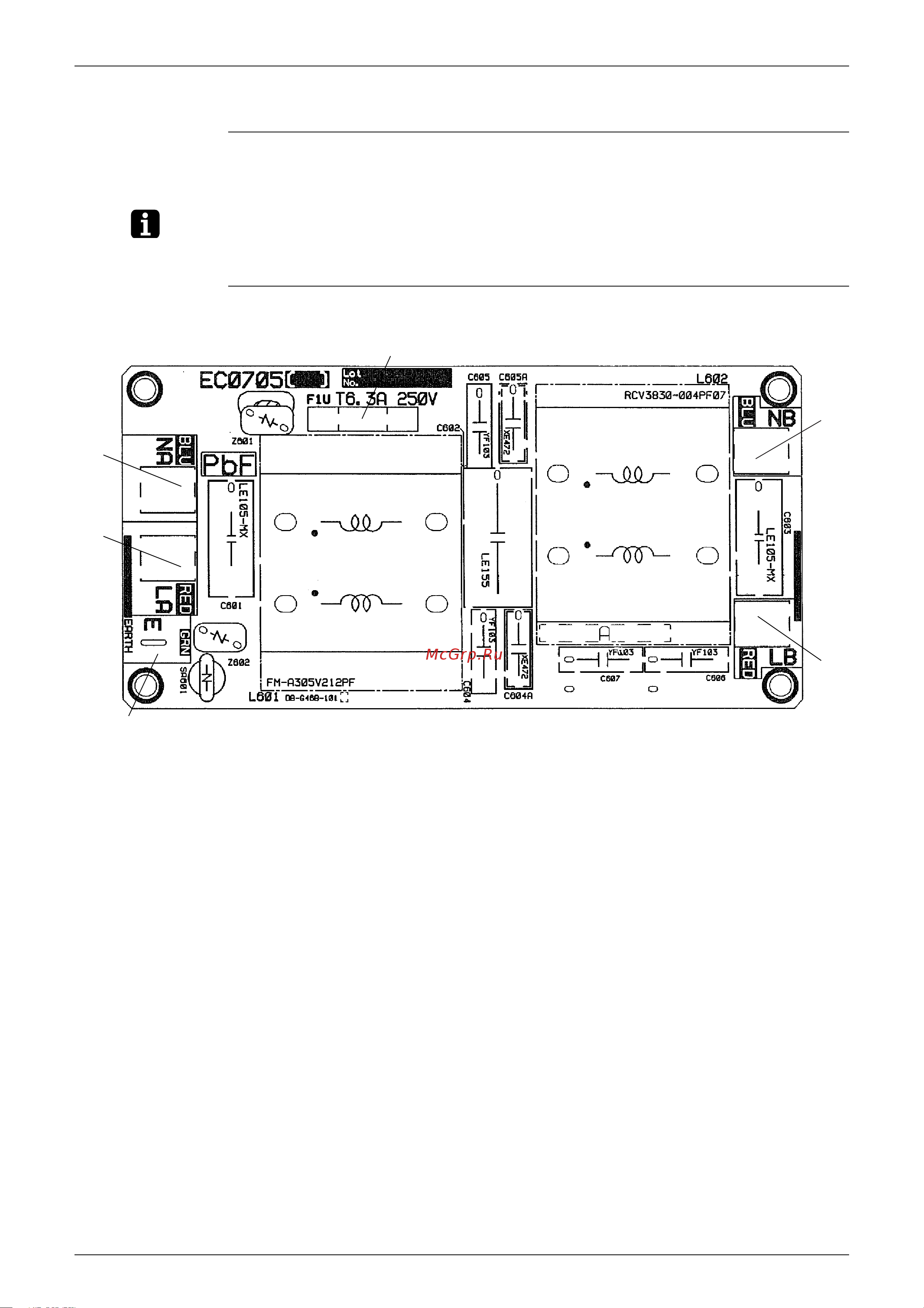

PCB Detail Noise Filter PCB (A3P)
NB
F1U
NA
LA
E
LB
3P210455
