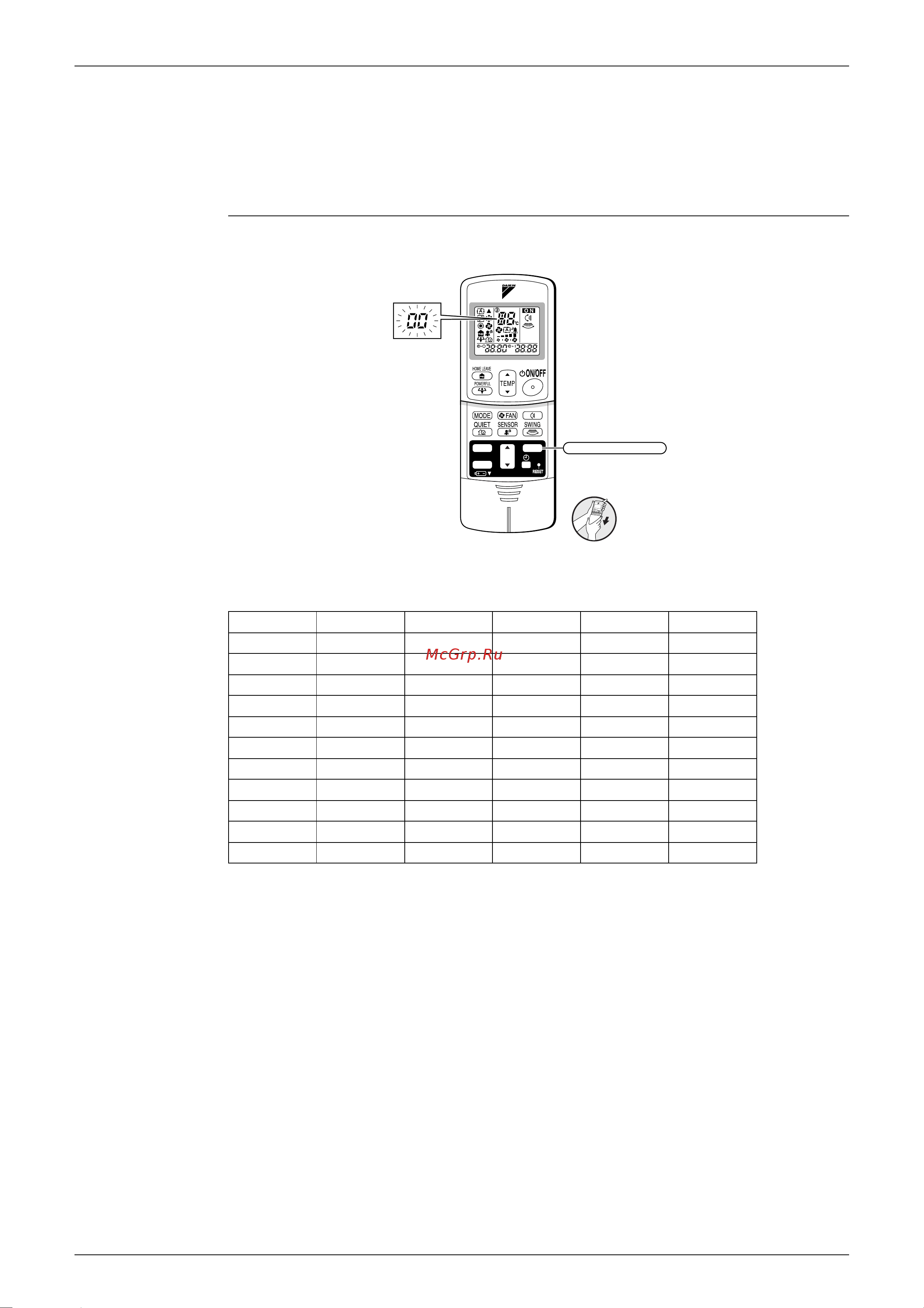

SiBE18-821 Service Check Function
Troubleshooting 247
2. Service Check Function
2.1 RA Indoor Unit Wireless Remote Controller
In the ARC433 series remote controller, the temperature display sections on the main unit
indicate corresponding codes.
Check Method 1 1. When the timer cancel button is held down for 5 seconds, a “
00
” indication flashes on the
temperature display section.
2. Press the timer cancel button repeatedly until a continuous beep is produced.
The code indication changes in the sequence shown below, and notifies with a long beep.
No. Code No. Code No. Code
1 00 12 C7 23 H0
2 U4 13 H8 24 E1
3 F3 14 J3 25 P4
4 E6 15 A3 26 L3
5 L5 16 A1 27 L4
6 A6 17 C4 28 H6
7 E5 18 C5 29 H7
8 F6 19 H9 30 U2
9 C9 20 J6 31 UH
10 U0 21 UA 32 EA
11 E7 22 A5 33 AH
<
ARC433B70, 71
>
(R6849)
TIMER
ON
CANCEL
OFF
TIMER CANCEL button
