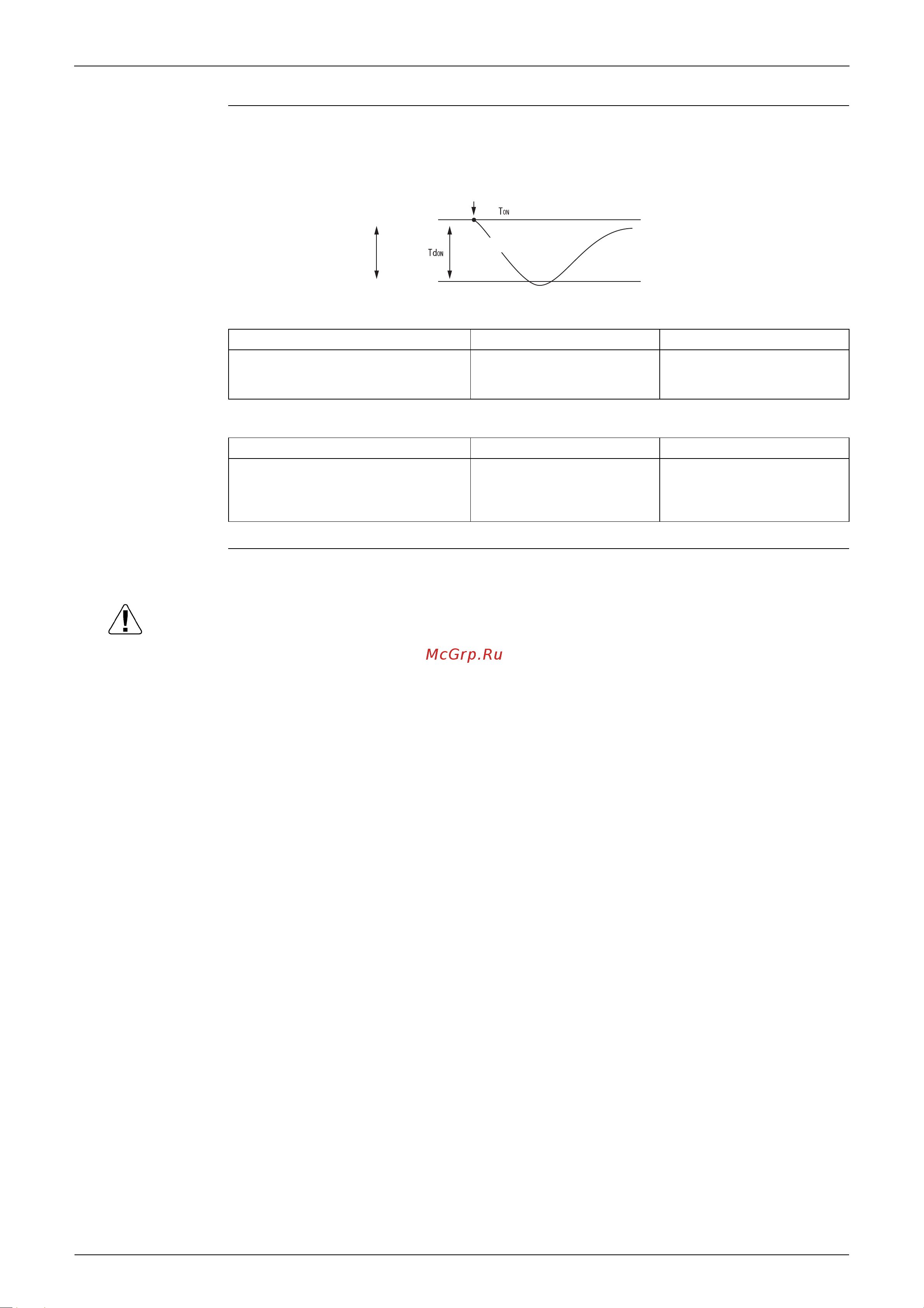

Indoor Unit (SkyAir Models) SiBE18-821
110 Function
Program Dry
Operation
Function
The points of thermostat ON or OFF are determined according to the suction air temperature at
the startup of unit operation.
The set temperature and flow rate are not displayed on remote controller.
1. Thermostat ON point (T
ON
) according to suction air temp. (T
S
).
2. Operation condition
Auto-restart
Function
If there is a power cut when the unit is operating, it will automatically resume the same operating
mode when the power is restored.
Caution When performing maintenance and the power supply is to be shut off, be sure to turn the remote
controller’s ON/OFF switch OFF first.
Shutting the power supply switch off while the ON/OFF switch is still ON is dangerous because
the “power failure automatic reset function” will cause the indoor fan to start turning
immediately, or the outdoor unit fan to automatically start turning 3 minutes after the power
supply is turned back on.
Suction air temp TON(°C) TdON(°C)
Ts>24°C
24°C≥ Ts>16°C
16°C≥ Ts
Ts
Ts
16°C
1.5
1.0
1.0
Compressor condition ON OFF
Setting of flow rate
Angle of flap
Airflow direction set with remote
controller
L operation
Set angle
Set angle
OFF
Set angle
Set angle
Operation startup
(Differential)
(S1120)
Thermostat
ON
Thermostat
OFF
Suction air temp. Ts
