SiBE18-821 Troubleshooting for Outdoor Unit
Troubleshooting 325
7.22 Malfunction of Transmission between Inverter and
Control PCB
Remote
Controller
Display
LC
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Check the communication state between inverter PCB and control PCB by micro-computer.
Malfunction
Decision
Conditions
When the correct communication is not conducted in certain period.
Supposed
Causes
Malfunction of connection between the inverter microcomputer and outdoor control
microcomputer
Defect of outdoor unit PCB
Defect of noise filter
External factor (Noise etc.)

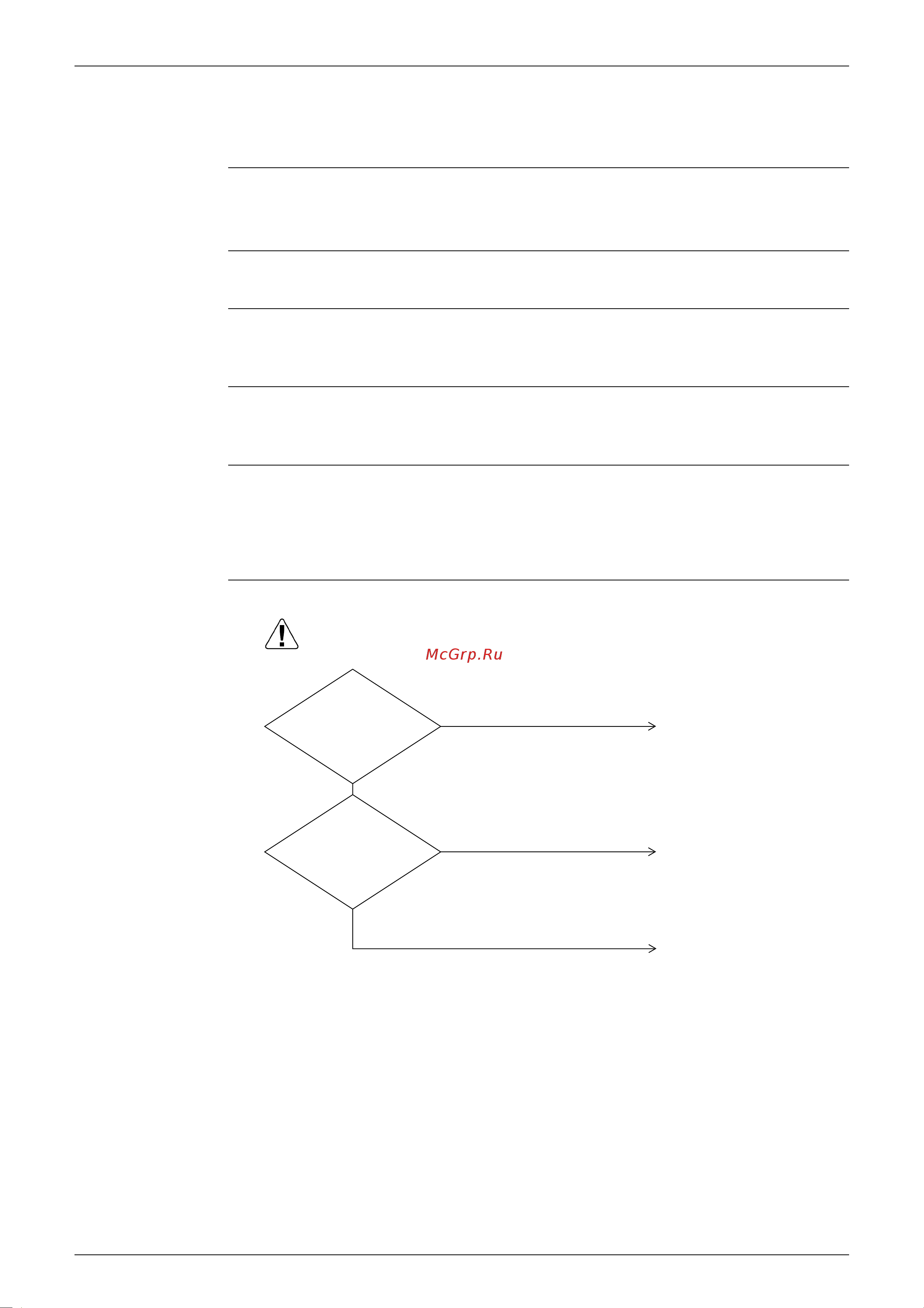

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
The
microcomputer
monitor (green) on the
outdoor unit PC board
(A1P) is blinking.
Check the noise filter
(A3P) for disconnection,
and check the power
supply wiring.
(Q0571)
Replace outdoor unit PC
board (A1P).
YES
The
voltage
between red and
white of X1A on the
inverter unit is the
power supply
voltage.
Replace outdoor unit PC
board (A1P).
↓
When the LC malfunction
occur again, replace
control PC board.
YES
NO
NO
