SiBE18-821 Instruction
Operation Manual 179

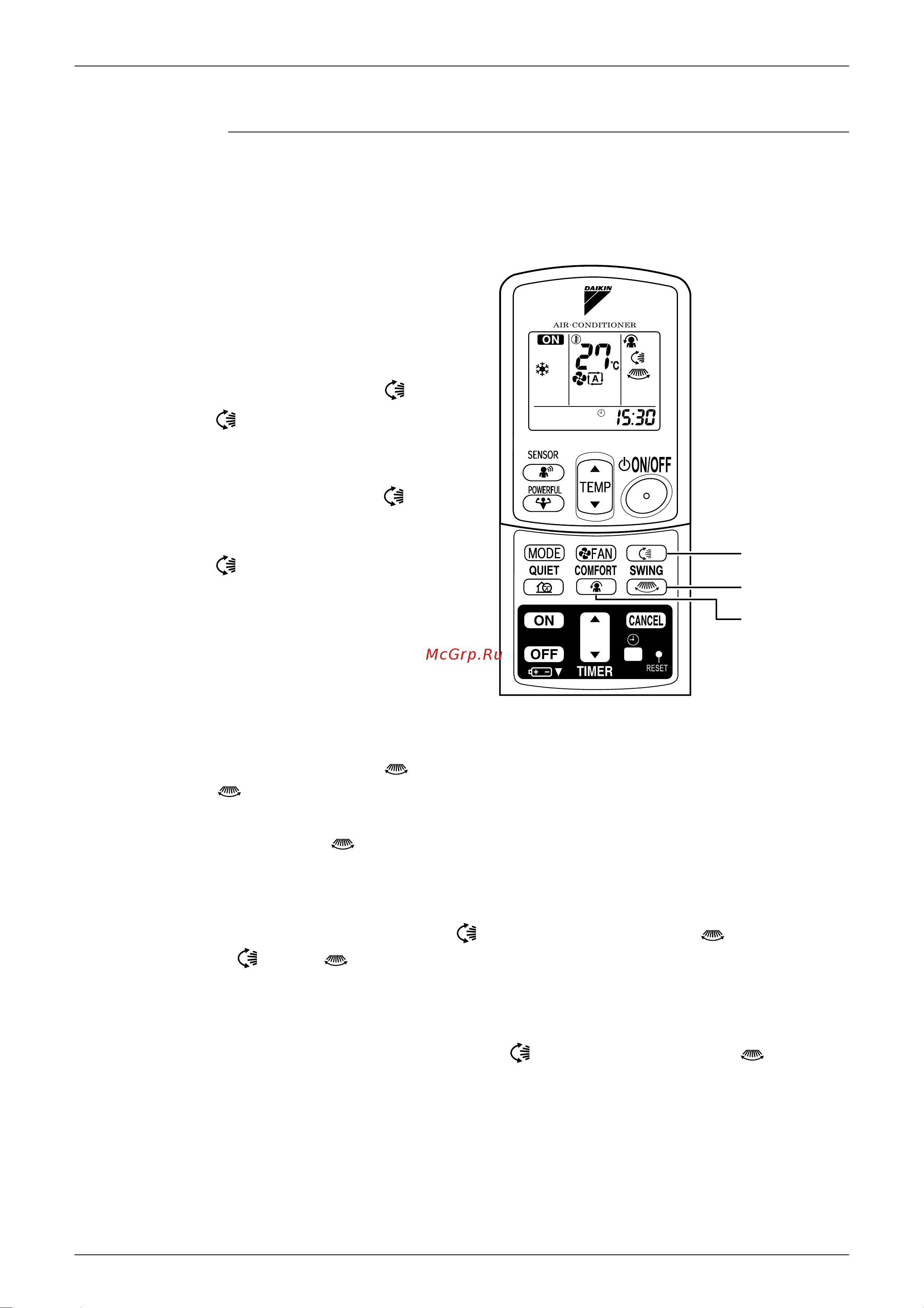

2.2.4 Adjusting the Airflow Direction
FTXG 25/35 E, CTXG 50 E
Adjusting the Airflow Direction
You can adjust the air flow direction to increase your
comfort.
To adjust the horizontal
blade (flap)
1. Press “SWING button ”.
• “ ” is displayed on the LCD.
2. When the flap has reached the
desired position,
press “SWING button ” once
more.
• The flap will stop moving.
• “ ” disappears from the LCD.
To adjust the vertical
blades (louvers)
3. Press “SWING button ”.
• “ ” is displayed on the LCD.
4. When the louvers have reached the desired position, press the
“SWING button ” once more.
• The louvers will stop moving.
To 3-D Airflow
1. 3. Press the “SWING button ” and the “SWING button ”:
the “ ” and “ ” display will light up and the flap and louvers will
move in turn.
To cancel 3-D Airflow
2. 4. Press either the “SWING button ” or the “SWING button ”.
1, 2
3, 4
5, 6
