Indoor Unit (SkyAir Models) SiBE18-821
104 Function
1-2 Operations when an occurrence of water level abnormality

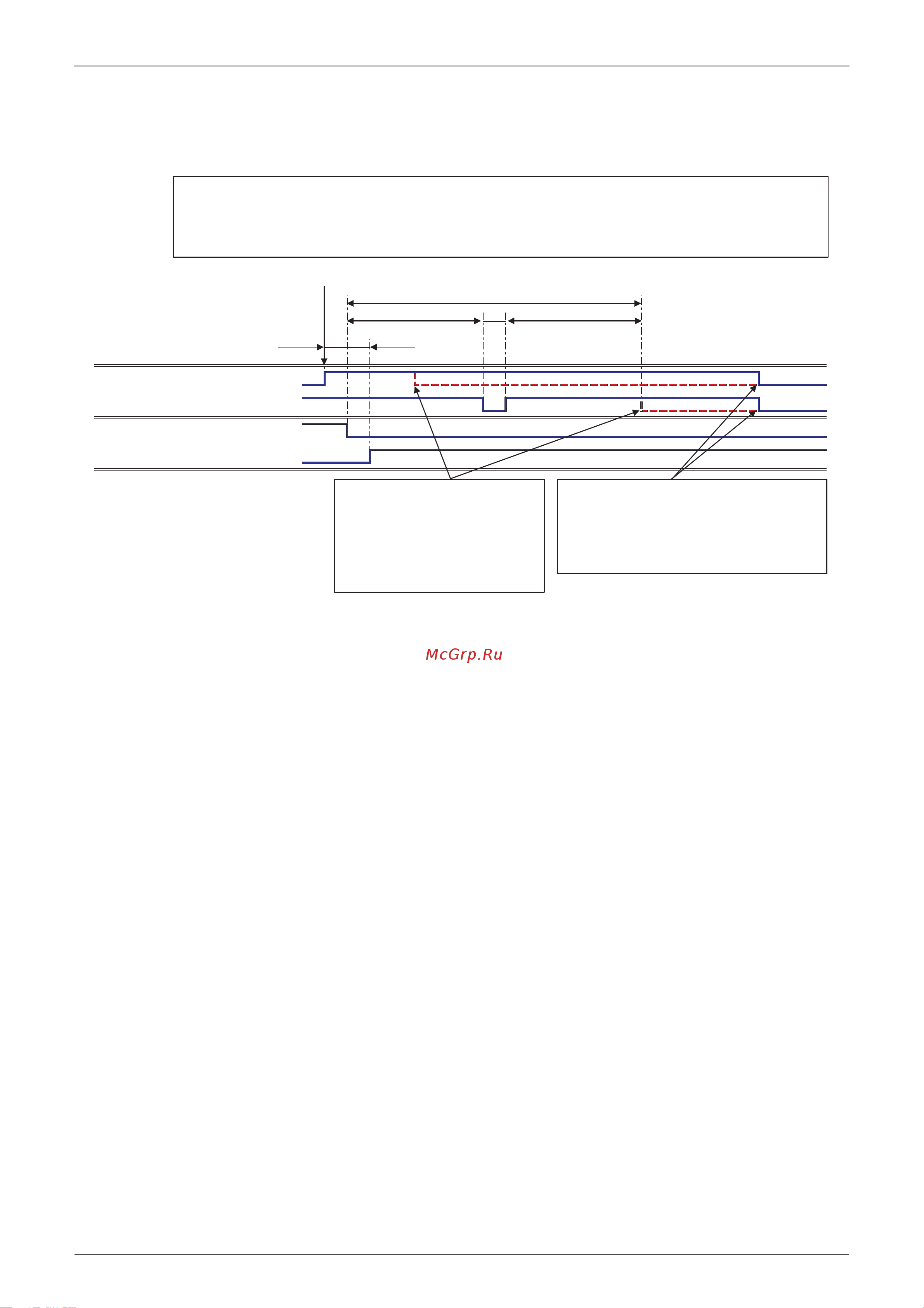

1-2-a) Behavior between occurrence and recovery of water level abnormality
Occurrence of drain water level abnormality
5
sec
A10
sec sec
Intermittent operation (*1)
5min 5min
Compressor
ON
OFF
Drain pan
Water level abnormality
Normal
Drain pump
ON
OFF
Error processing
Abnormal
Normal
After compressor stops due to water level abnormality, drain pump is operated intermittently, i.e. 5 min
ON, 5 sec OFF and 5 min ON. (*1) The intermittent operation is executed regardless of recovery of water
level abnormality during the intermittent operation. (*2) When the water level abnormality can not be
recovered, the latter 5 min ON operation is continued until recovery of the abnormality. (*3)
*2
Even though the water level
abnormality could be recovered
during intermittent operation, the
operation shall be carried out
without exception.
*3
If the abnormality could not be recovered
during intermittent operation, the latter 5
min ON operation is continued until
recovery of the abnormality.
