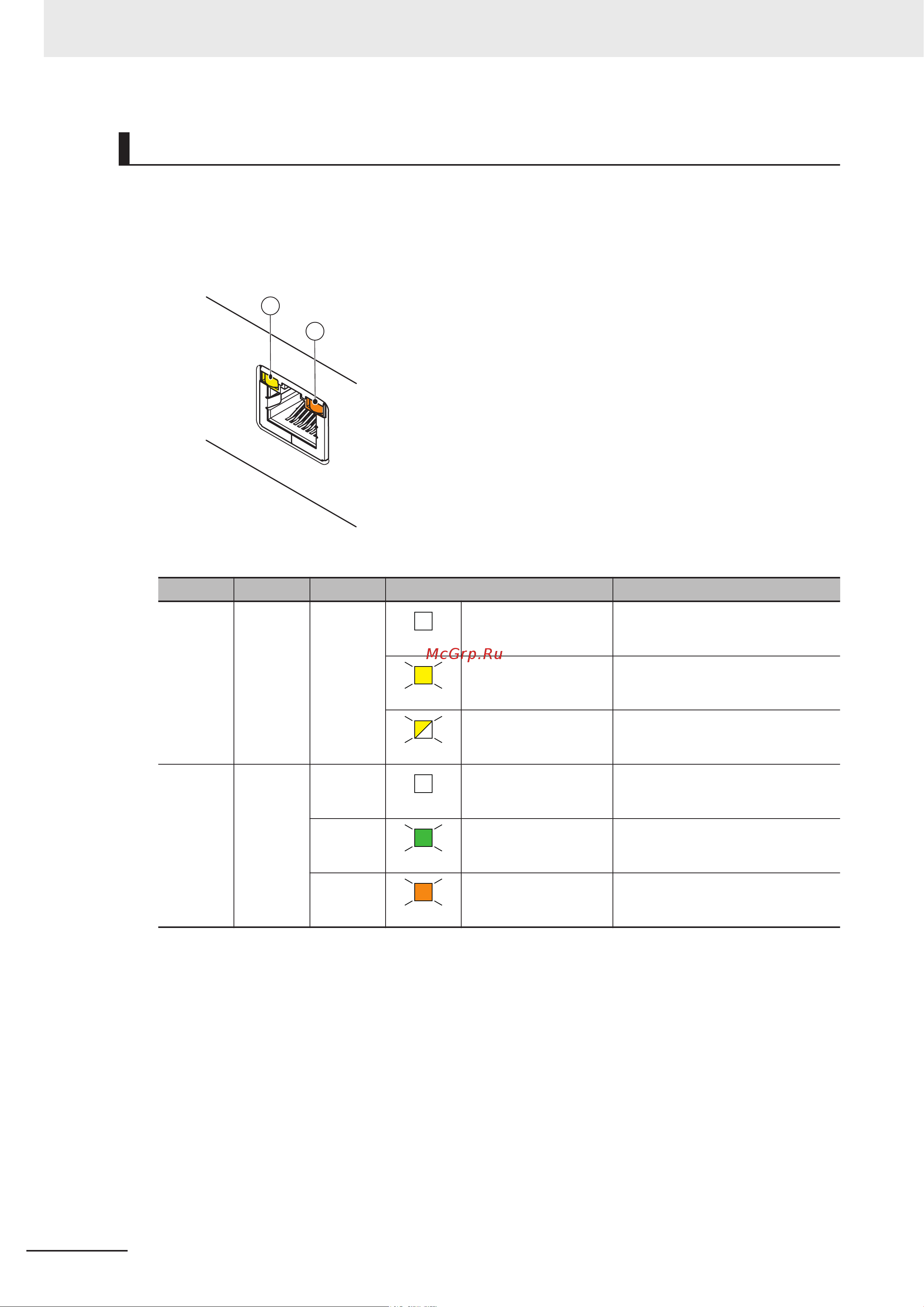

Ethernet Connector LED Indicators
Details of the RJ45 Ethernet connectors in the base layer are provided below.
Each connector has LED indicators that display the link, activity and speed status.
A
B
Item Indicator Color Status Description
A Link/Act Yellow Not lit No link
Lit Link
Flashing Link and activity
B Speed Not lit
Not lit 10 Mbps or no link
Green Lit 100 Mbps link
Orange Lit 1 Gbps link
4 Specifications
4-26
NY-series Industrial Box PC Hardware User's Manual (W553)
