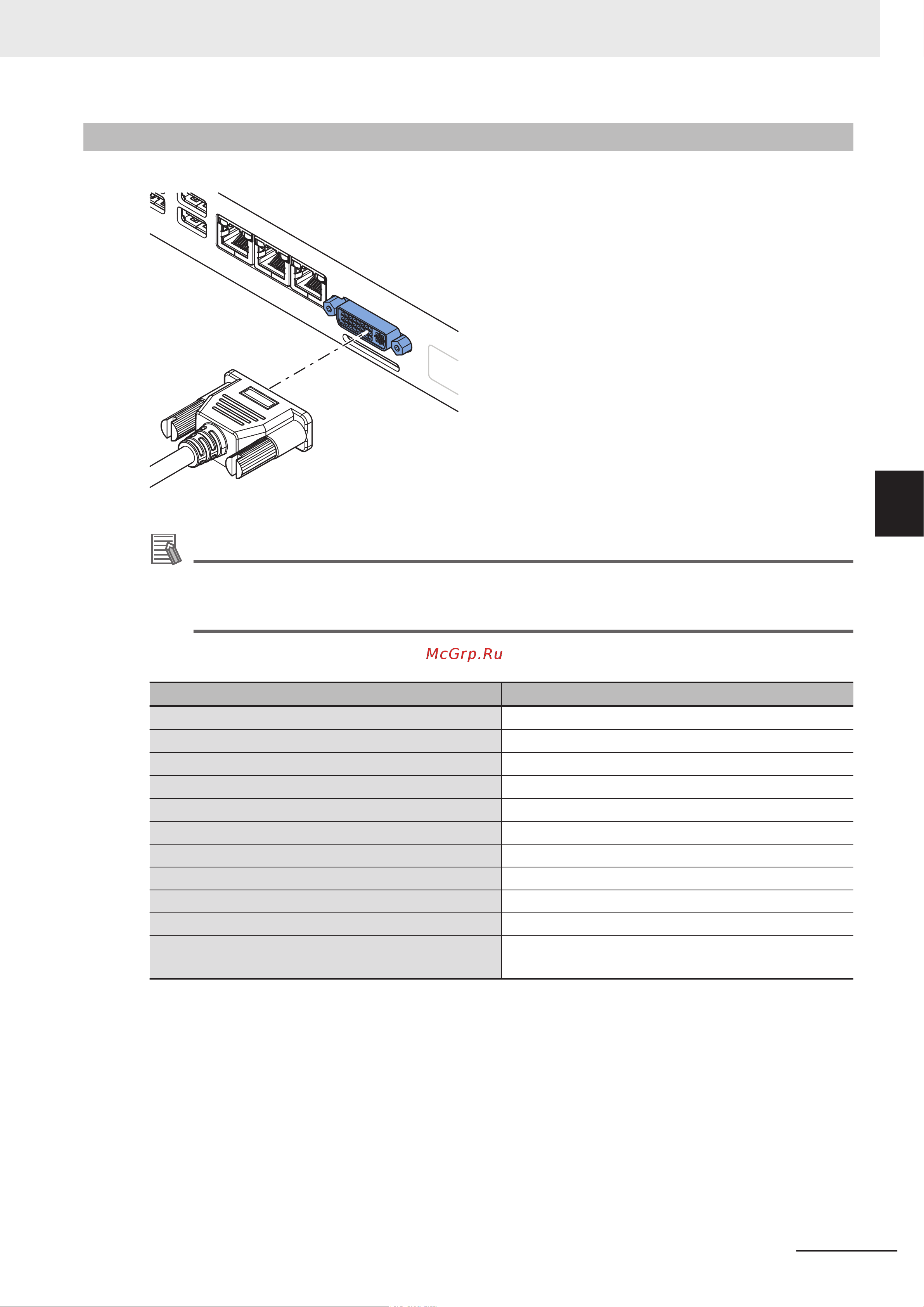

4-2-5
DVI Connector Specifications
DVI is the standard video interface for the Box PC.
Additional Information
• Refer to 4-1-5 CPU Specifications on page 4-6 for graphics controller details.
• Refer to
5-4-2 Ground on page 5-29 for grounding details.
• Refer to A-2 DVI Connector Pin Details on page A-67 for pin details.
The DVI Card specifications depend on the CPU and thus on the product configuration.
Item Specifications
Video interface NY£1C
Digital only
Video interface NY£1E
Digital or Analog
Video interface NY£17
Digital or Analog
Video interface NY£2A
Digital only
Video interface NY£2C
Digital only
Video interface NY£25
Digital only
Video interface NY£27
Digital or Analog
Video interface NY£35
Digital only
Resolution Up to 1920 x 1200 pixels at 60 Hz
Type Dual link
Maximum DVI cable length Dependent upon connected monitor type and resolu-
tion
4 Specifications
4-27
NY-series Industrial Box PC Hardware User's Manual (W553)
4-2 Connector Specifications
4
4-2-5 DVI Connector Specifications
