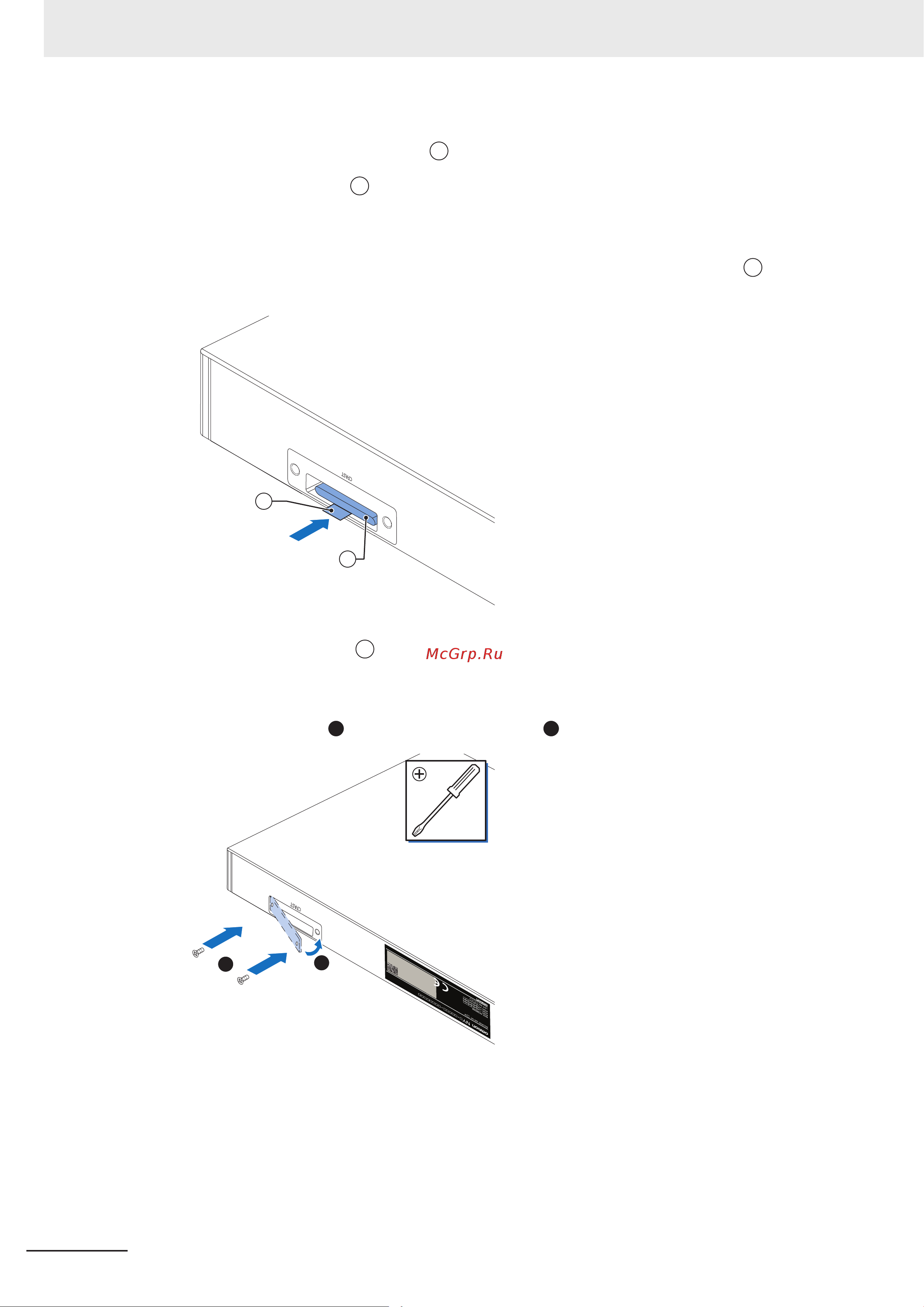

4 Insert the replacement CFast Card
A
into the slot of the Box PC.
Ensure the CFast Card
A
is completely in the Box PC with an extra push using the CFast
Card slot cover.
If the CFast Card can not go in completely then the CFast Card orientation is incorrect. Re-
move the CFast Card, turn it upside down and reinsert it. Ensure the CFast Card
A
is com-
pletely in the Box PC with an extra push using the CFast Card slot cover
.
A
B
Fold the plastic Pull Tab
B
up so it stays inside the slot area.
5 Mount the CFast Card slot cover.
Place the slot cover
1
and then mount the screws
2
.
CUSTOM
ID
Corporation Ky
oto
, 600-8530 JAPAN
MADE IN TH
E N
ETHERLANDS
PRODUCT NAME
1
2
6 Restore the drive data from a backup.
Refer to NY-series Operating Systems and Software Utilities Manual (Cat. No. W616) for de-
tails.
The CFast Card is replaced.
7 Maintenance
7-22
NY-series Industrial Box PC Hardware User's Manual (W553)
