7-2-7
Replace the CFast Card
Use the following procedure to replace the CFast Card.
Prepare the new CFast Card.
Additional Information
• Refer to 1-4 Product Configuration Box PC on page 1-5 for the installed CFast Card model.
• Refer to
3-10-4 CFast Cards on page 3-24 for the available CFast Card models.
• Refer to CFast Card Specifications on page 4-13 for specification details.

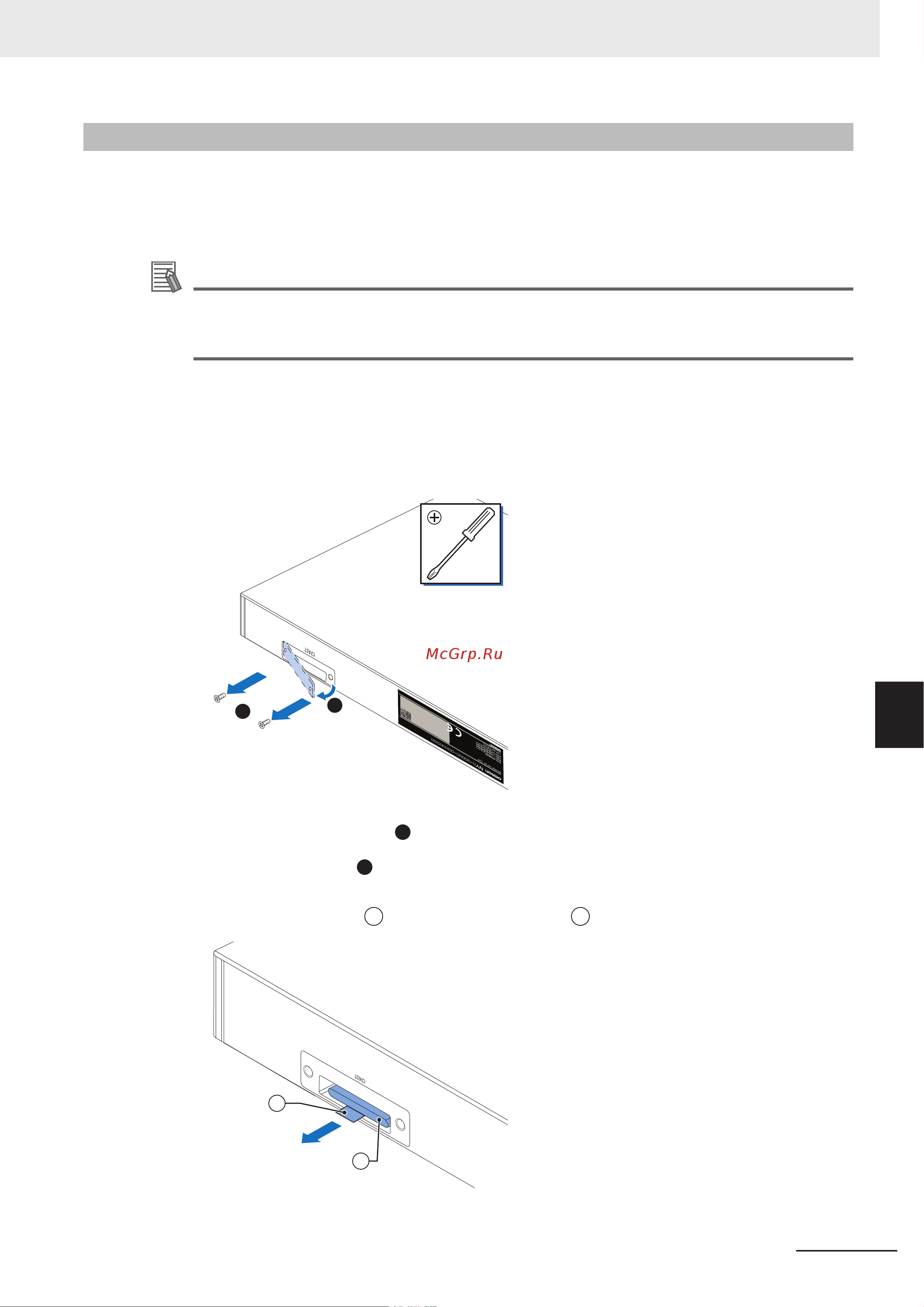

To replace the CFast Card:
1 Power OFF the Box PC.
2 Remove the CFast Card slot cover.
CUSTOM ID
Corporatio
n
Kyoto, 600-8530 JA
PAN
MADE IN TH
E NETHERLANDS
PRODUCT NAME
1
2
1) Remove the two screws
1
.
2) Remove the cover
2
.
3 Pull the plastic Pull Tab
A
to remove the CFast Card
B
from the Box PC.
B
A
7 Maintenance
7-21
NY-series Industrial Box PC Hardware User's Manual (W553)
7-2 Corrective Maintenance
7
7-2-7 Replace the CFast Card
