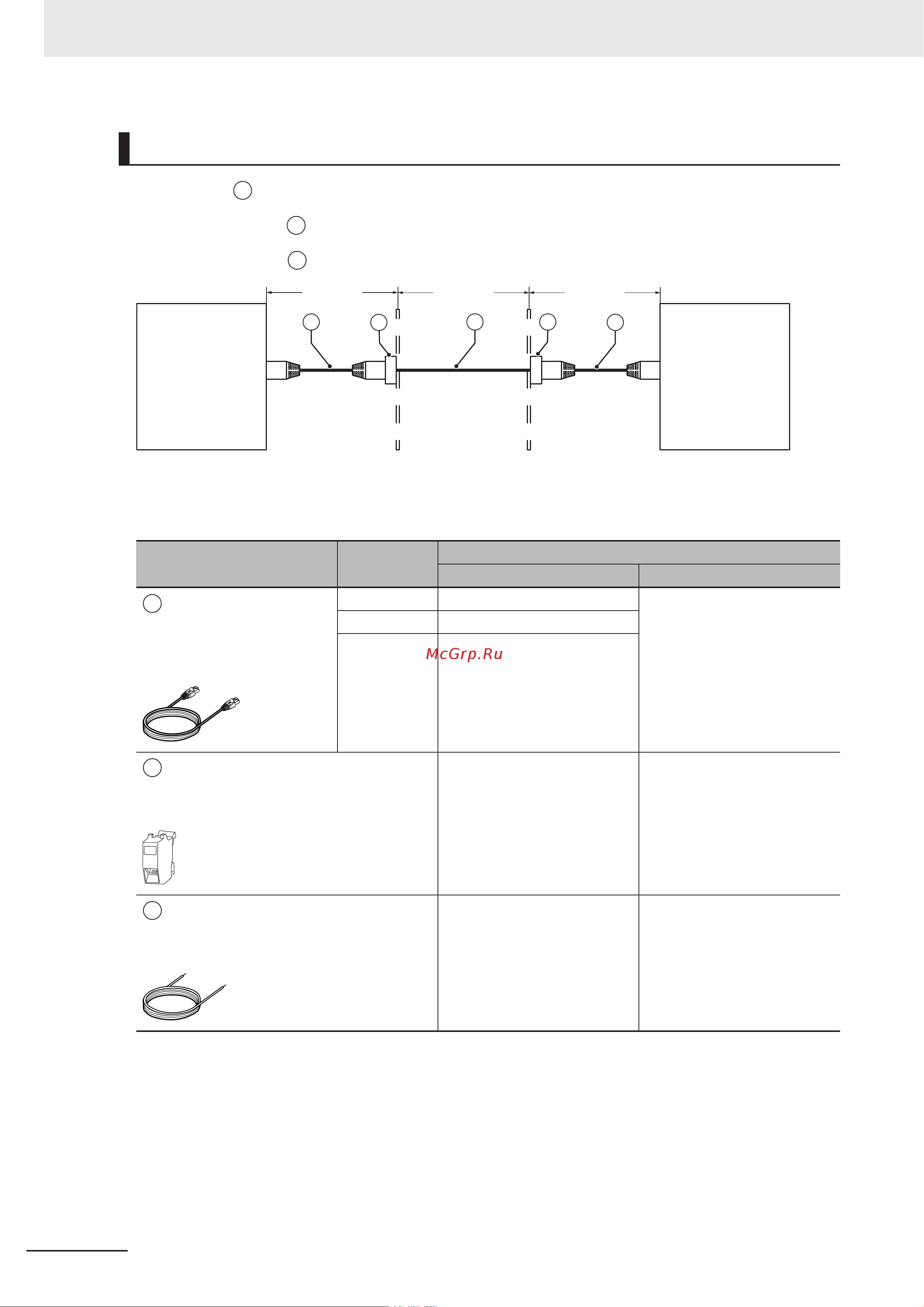

NYML Recommendations up to 100 m
Patch Cables
A
with different lengths can be used.
Use a DIN rail socket
B
when connecting patch cables to infrastructures.
Use installation cable
C
inside infrastructures.
Max 5 m
PC MonitorInfrastructure
A
C
B
B
A
Max 5 m
Max 90 m
The following table lists the recommended cables and materials for the NY Monitor Link cable applica-
tions up to 100 m.
Item Length
Specifications
ID Details
A
Patch Cable with straight con-
nectors
Manufacturer: Weidmuller
1.5 m IE-C6FP8LB0015M40M40-B Industrial Ethernet cable:
RJ45 IP 20, RJ45 IP 20,
Cat.6A /Class EA (ISO/IEC
11801 2010), LSZH, UL,
Molded Connector. Qualified
for 10Gb/s, S/FTP
3 m IE-C6FP8LB0030M40M40-B
5 m IE-C6FP8LB0050M40M40-B
B
D- DIN rail socket
Manufacturer: Weidmuller
IE-XM-RJ45/IDC Mounting rail outlet, RJ45
module design according to
IEC 60603-7-51, for wires with
diameters up to 1.6 mm UL
C
Installation Cable
Manufacturer: Lapp
ETHERLINE ® PN Cat.6A
FLEX
Industrial Ethernet cable
ETHERLINE PN Cat.6A FLEX
Cat.6A for flexible use, 4
pairs, PVC or FRNC outer
sheath UL 4x2xAWG23/7
Qualified for 10Gb/s
NY Monitor Link Cable Clearance
Ensure to prevent excessive strain on the connector and cable assembly.
The minimum clearance from the connector entry consists of the sum of:
•
Connector length
•
Maximum bending radius of the cable in a fixed position
3 Hardware
3-28
NY-series Industrial Box PC Hardware User's Manual (W553)
