iCSPSA2 Installation Instructions

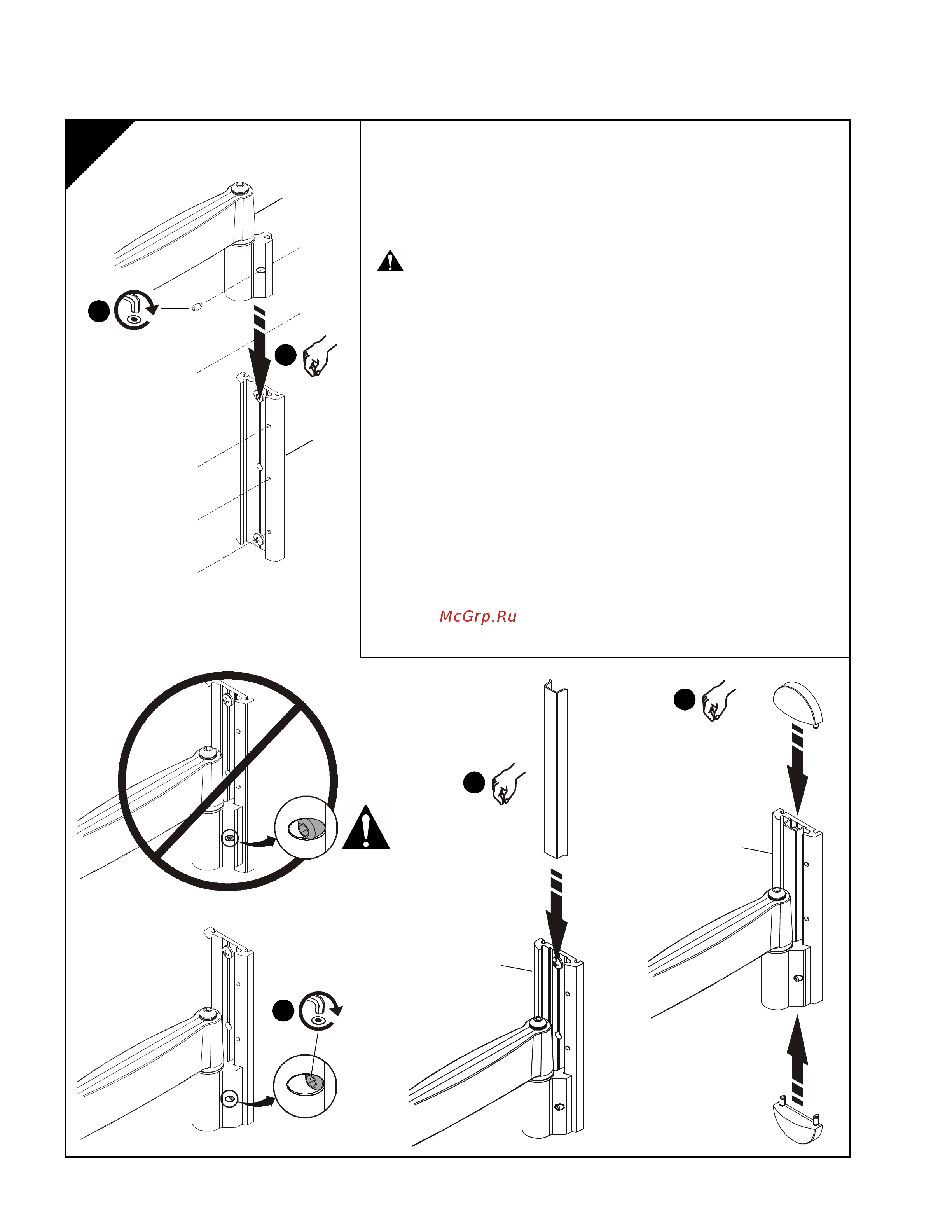

INSTALL ARM ASSEMBLY TO WALL PLATE

IMPORTANT! If installing a display with recessed mounting holes, then

proceed to "INSTALL DISPLAY TO ARM ASSEMBLY" before installing arm

assembly to wall plate.

1. Align arm assembly (A) with wall plate (B) and slide into position.

WARNING: Failure to align hex head screw with hole in wall plate (B)

may allow arm assembly (A) to fall, resulting in serious personal injury or

damage to equipment! Hex head screw should fully recede into arm

assembly hole after tightening.

2. Using hex key (T), tighten hex head screw in arm assembly (A) ensuring

that screw engages one of three holes in wall plate (B).

NOTE: Three holes are provided in wall plate (B) to provide height

adjustment.

3. Align cover (C) with grooves in wall plate (B) and slide into position.

4. Align caps (D) with holes in wall plate (B) and slide into position.

D x2
