iCSPSA2 Installation Instructions
26
INSTALAR A PLACA NA PAREDE
Instalação em perne de madeira
ATENÇÃO: Se não for proporcionado apoio
estrutural adequado a este componente podem
ocorrer graves lesões pessoais ou danos no
equipamento! É da responsabilidade do instalador
certificar-se de que a estrutura à qual este
componente é ligado pode suportar cinco vezes
o peso combinado de todo o equipamento. Reforce
a estrutura conforme necessário antes de instalar
o componente.

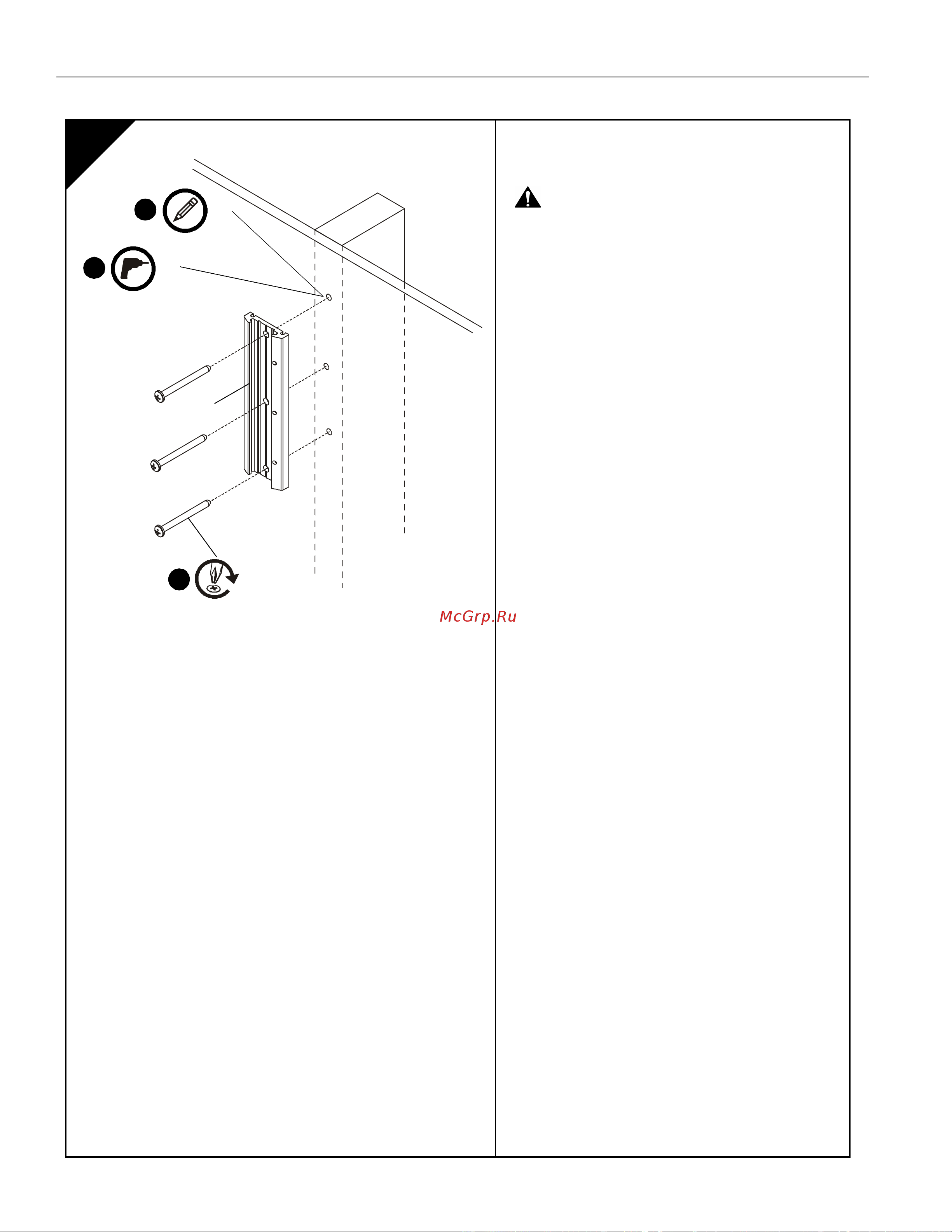

1. Nivele a placa de parede (B) e assinale os locais
para os furos piloto.
2. Faça furos piloto de 3,2 mm (1/8") no perne
de madeira.
3. Instale os parafusos (G) através da placa
de parede (B) no perne de madeira.
1a
1
3,2 mm (1/8")
1
x3
2
x3
3
G x3
B
