Nord Stage EX v6.x 2. Overview: About Knobs & Buttons
Page 9
THE BUTTONS
There are three types of buttons for editing sounds on the Nord Stage EX:
S
ELECTOR BUTTONS

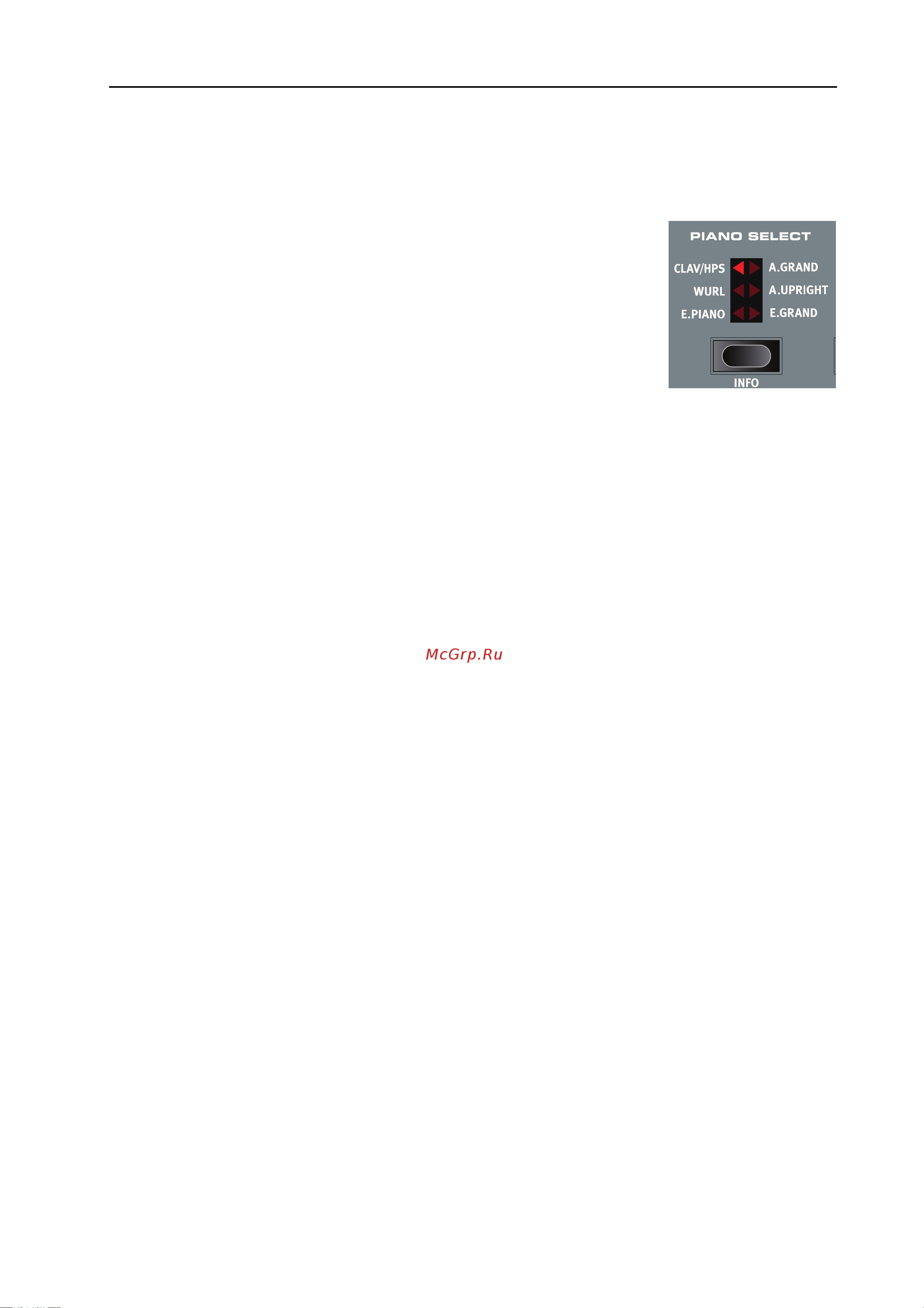

Press the SELECTOR button repeatedly to select between options printed
next to the corresponding triangular LED (see figure).
O
N/OFF BUTTONS
The ON/OFF buttons have a LED next to them to indicate the status.
D
RAWBAR BUTTONS
The DRAWBAR buttons are special in the way that they auto-increment/decrement the corresponding
parameter when held. I.e. if you hold a D
RAWBAR button the corresponding drawbar parameter will
continue to increment or decrement (within its range) until you release the button.
THE SHIFT BUTTON
Many buttons and knobs have a second function, printed in darker text just below the button or knob.
You access these additional functions and parameters by holding S
HIFT while pressing a button or
turning a knob.
The S
HIFT button is also an EXIT button, used for example to exit menus and store operations.
