Nord Stage EX v6.x 5. The Program section: Overview
Page 17

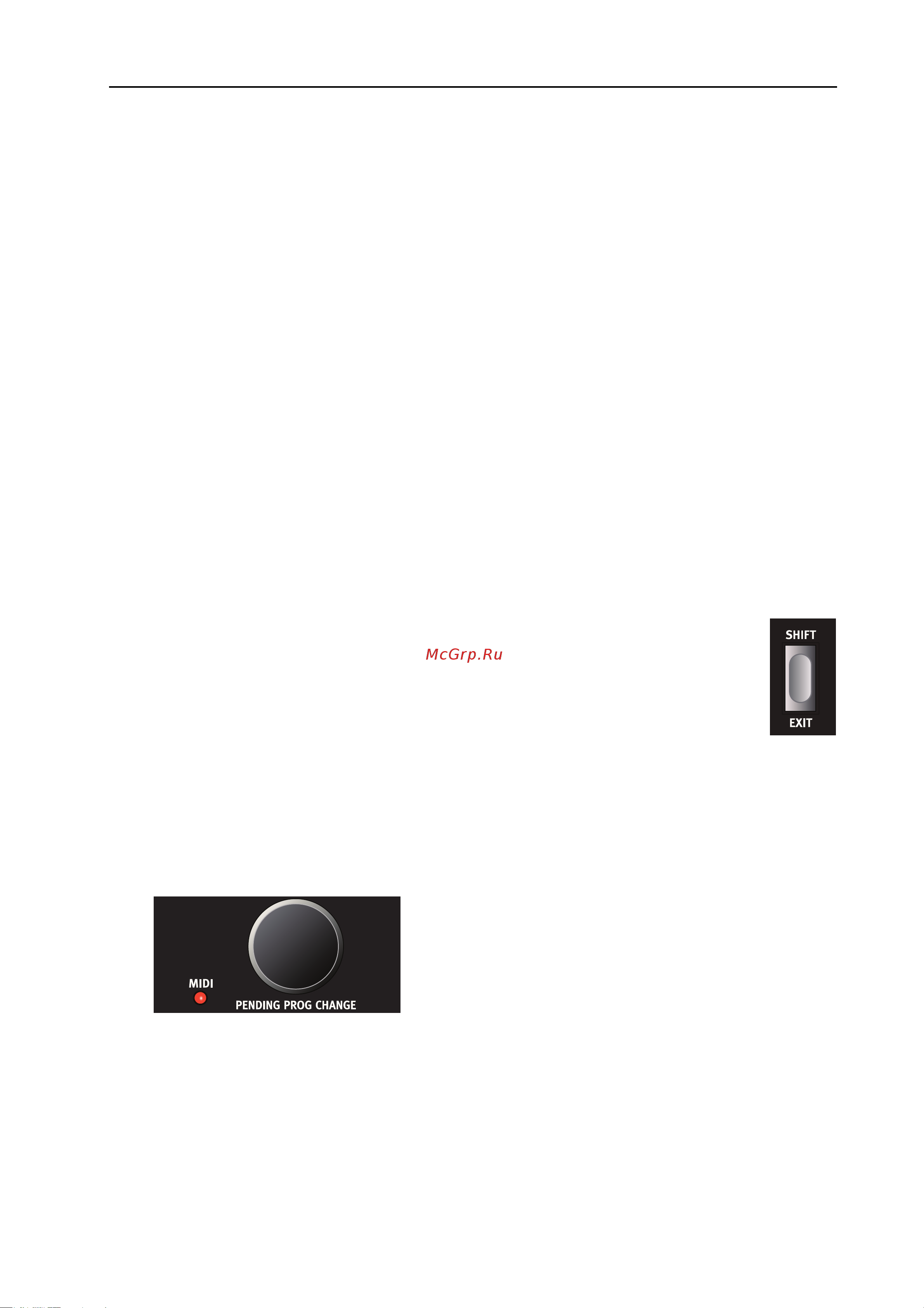

PENDING PROGRAM CHANGE
Normally a program is loaded the same moment you press a PROGRAM button, or as soon as you turn
the V
ALUE DIAL. Sometimes you may want to browse through the programs without leaving the cur-
rent program, for example while still playing with the other hand. Then you can use the “pending pro-
gram change” feature:
• While pressing S
HIFT, turn the VALUE DIAL until you see the program you want to load in the
D
ISPLAY. Release the SHIFT button. The corresponding PROGRAM BUTTON will flash to show
you that it is ready to load. Press the flashing button to load the program.
• If you change your mind, press E
XIT (SHIFT) to cancel the operation.
PAGE -/+ BUTTONS
The PAGE -/+ buttons are used to select Program Pages and to navigate between System menu pages.
Hold either button to browse quickly through the pages.
When combined with the S
HIFT button, the PAGE buttons step through all the 121 available Pro-
grams.
DISPLAY
The MAIN DISPLAY normally shows the name of the currently selected Program, but is also used for
displaying various system parameters and messages.
THE SHIFT / EXIT BUTTON
Many buttons and knobs have secondary functions that you can access by holding down
S
HIFT and pressing the button or turning the knob. The Shift induced functions are always
printed below the corresponding button or knob. For example, pressing S
HIFT + PRO-
GRAM 3 button will allow you to access the MIDI system parameters.
In a few cases, the “shift” functionality can be achieved by double-clicking a button. This works pri-
marily with Keyboard Zone assignments and Effect source selects.
The S
HIFT button is also an EXIT button, for example when you want to exit a menu, or cancel a Store
operation.
VALUE DIAL
The VALUE DIAL to the right of the DISPLAY is used to select Program locations, to set system pa-
rameter values and to “type” in Program names.
When used with the S
HIFT button, the VALUE DIAL selects a Program, but does not load it until you
press the corresponding, blinking P
ROGRAM button. See “Pending program change” above.
