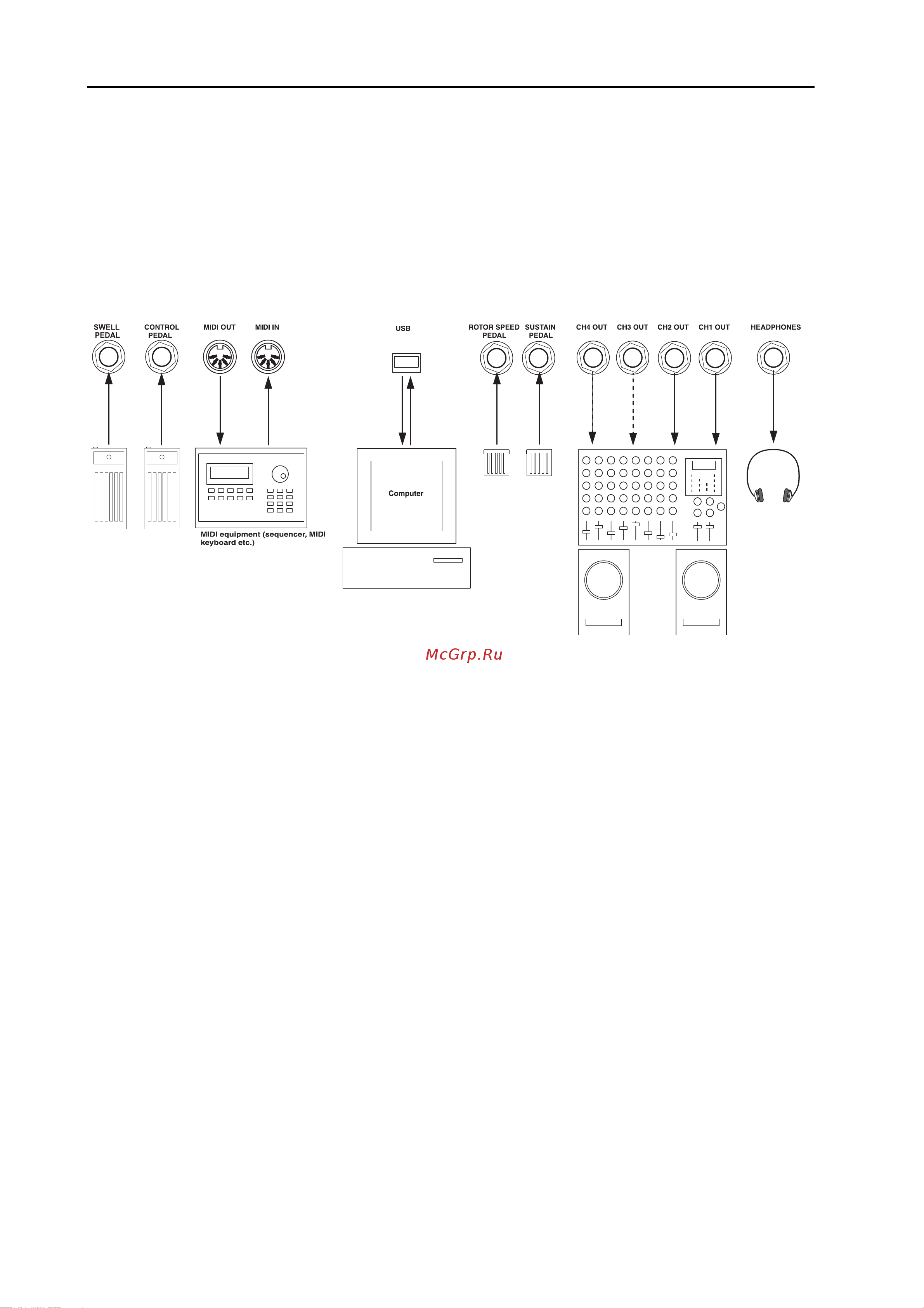

3. Connections: Nord Stage EX rear panel Nord Stage EX v6.x
Page 10
3. CONNECTIONS
NORD STAGE EX REAR PANEL
AUDIO CONNECTIONS
• Make all audio connections before turning on your power amplifier!
• All signal cables used with the Nord Stage EX must be shielded.
• The four audio outputs (CH O
UT 1-4)) are line level and unbalanced.
• If you wish to connect the Nord Stage EX in stereo to your audio equipment, you should use CH1
O
UT in pair with CH2 OUT.
• You can also route individual instruments to CH O
UTPUTS 3 & 4 either in stereo or as two mono
channels. This is done on the System page - see page 66.
MIDI CONNECTIONS
• If you are using a Nord Stage EX together with a MIDI keyboard, connect a MIDI cable from
MIDI Out on the keyboard to MIDI I
N on the Nord Stage EX.
• If you are using Nord Stage EX to control an external MIDI instrument, connect a MIDI cable
from MIDI O
UT on the Nord Stage EX to the MIDI In connector on the other instrument.
