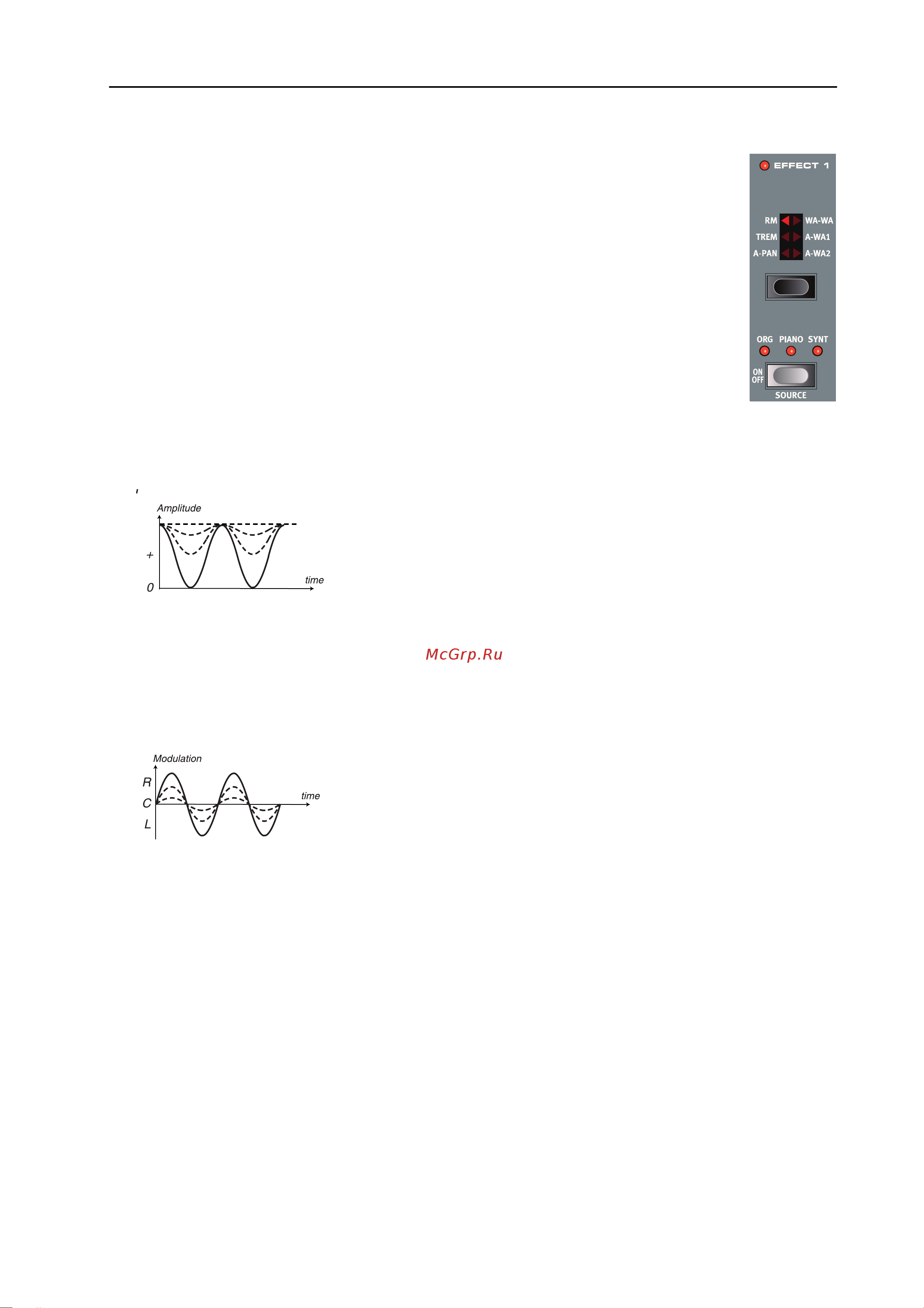

Nord Stage EX v6.x 7. The Effects: The Panel effects
Page 51
EFFECT 1
The Effect 1 section offers six different types of modulation. Use the SELECTOR button
to switch between the available modulation effects. The following effects are available:
RM (R
ING MODULATION)
Ring Modulation is a type of modulation where two signals are multiplied with each
other. The result is an inharmonic “bell like” sound. Herbie Hancock used this effect a
lot in the ‘70s. In the Nord Stage EX the instrument signal is multiplied with an addi-
tional sinewave.
When RM is selected you set the sinewave pitch with the R
ATE/TEMPO knob and the
amount of ring modulation with the A
MOUNT knob. This effect is mono in/out.
T
REM (TREMOLO)
Tremolo is basically volume modulation that continuously varies the output signal volume. Tremolo
is a commonly used modulation, especially for Wurlitzer electric pianos.
The Tremelo effect is stereo in/out.
Use the R
ATE/TEMPO and AMOUNT knobs to control the Tremolo rate and depth. Note that the out-
put volume is at maximum level at zero A
MOUNT setting.
A-P
AN (AUTO PAN)
The A-Pan is an auto panning modulation that smoothly pans the signal between the Left and Right
outputs.
You control the rate and amount of panning with the R
ATE/TEMPO and AMOUNT knobs. The Pan
effect is stereo in/out.
S
TATIC PAN CONTROL OF AN INSTRUMENT
Sometimes you may want absolute manual control of over the panning of an instrument. This can be
done with the A-Pan effect as follows:
• Enable Effect 1 for the instrument you want to pan, and select the A-Pan effect type.
• Set the R
ATE/TEMPO KNOB to zero. Then you can place the instrument anywhere in the stereo
field manually with the A
MOUNT knob, just like a pan control on a mixer.
W
AH-WAH
The Wah-Wah modulation is often used for electric guitars to get that characteristic “talking guitar”
sound. Wah-Wah can also be extremely useful on electric piano sounds. Try out the Clavinet sound
The filled curve indicates maximum AMOUNT value and the
dashed curves indicate lower
AMOUNT values. At zero
AMOUNT value the output level is constantly at maximum level
The filled curve indicates maximum AMOUNT value and the
dashed curves indicate lower
AMOUNT values. The signal
smoothly pans between the Left and Right outputs as indicat-
