Nord Stage EX v6.x 6. The Instruments: The Organ Section
Page 29
VIBRATO
The F-Type Model has two basic vibrato modes; “Light” and “Heavy”, with different rates for each
mode. Slow/Fast rate for the Light mode is set with the V1/V2 Selectors and C 1/C2 sets the rate for
Heavy mode. Note that the F-Type vibrato is common for both Panels if a dual manual organ is used.
SWELL CONTROL
Swell is the characteristic volume function that you control from an organs pedal. Swell is not only a
volume control - for the B3 it also changes the character of the sound in a special way. To use Swell
control on the Nord Stage EX, simply plug in a standard expression pedal to the O
RGAN SWELL input
on the rear panel (see “Connecting pedals” on page 11) and configure the pedal on the System Menu
(see page 66).
A expression pedal connected to the O
RGAN SWELL input will control Swell for all organ models.
If you have only one expression pedal, it can be used both as a generic Control Pedal and a Swell
Pedal. See “Control Pedal Use as Swell” on page 67.
ROTARY SPEAKER
The Rotor section (rotary speaker simulation) is logically placed next to the Organ section, but you
can also use it for Piano or Synth sounds, just like the other effects. The Rotor effect is described on
page 55.
ORGAN PRESET I & II
For each Organ Model, and separately for Panel A & B, you can store two organ Presets within a sin-
gle Program. This is a quick way of changing between two sound variations, without having to
change Programs.

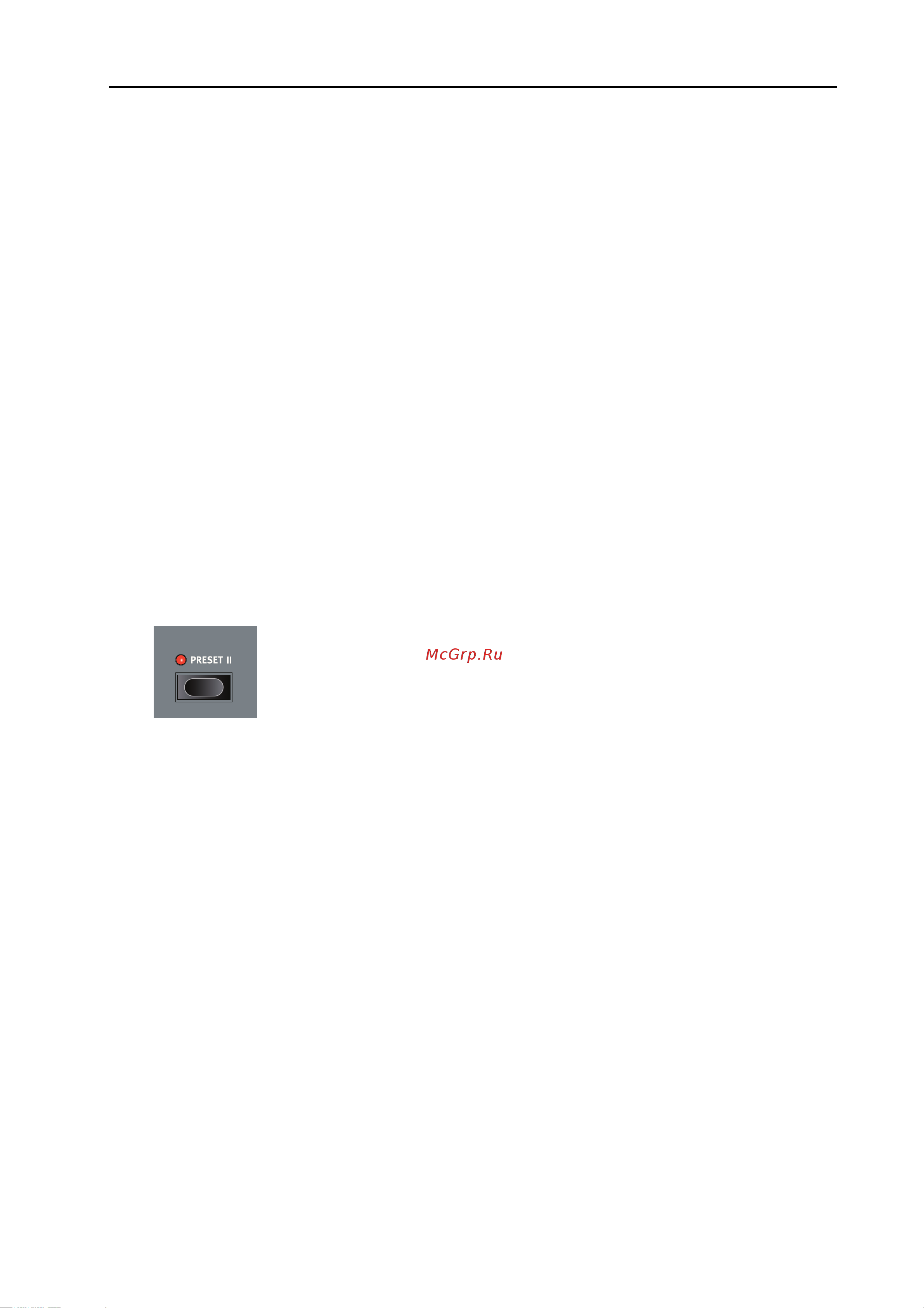

You change between Presets I & II by pressing the P
RESET II button. The drawbar settings and the
Vibrato/Percussion (on/off) settings are stored in a Preset.
ABOUT SPLIT ORGAN SETUPS
If you press SHIFT and the SPLIT ORGAN button you will activate a basic Split Organ setup, where
Both Panel A and B are active. In this mode the keyboard is split to play a “Lower” and an “Upper”
Manual organ. Panel A settings control the Lower Manual and Panel B the Upper Manual. By default,
the split point is set at middle C.
A blinking P
ANEL button indicates which Panel is edit active, i.e. which of the two Panel’s settings
are currently shown. To edit/show settings for the other Panel/Manual, press the corresponding P
AN-
EL button.
Each Panel/Manual can have their own drawbar, Vibrato (on/off) and Percussion (on/off) settings.
