Nord Stage EX v6.x 8. Keyboard Zones and Dual Panel setups: Keyboard Zones
Page 57
3. To assign the Organ instrument section to play on the lower Keyboard
Zone only, hold down S
HIFT and then press the KB ZONE SELECT
button for the Organ section until only the LO KB Z
ONE indicator is
lit.

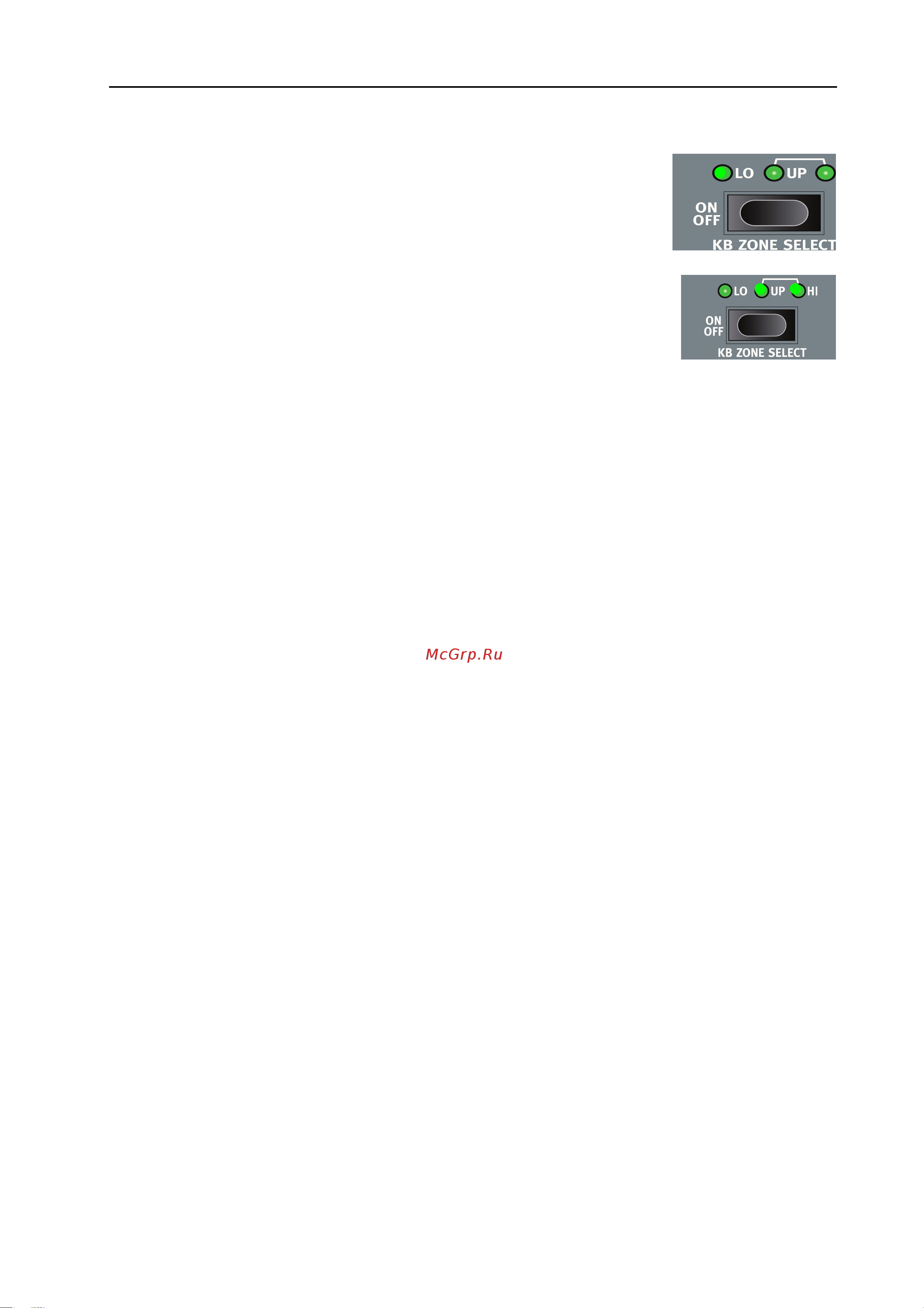

4. To assign the Piano instrument to play on the upper half of the keyboard
hold down S
HIFT and press the KB ZONE SELECT button for the Piano
section until both the UP/HI KB Z
ONE indicators are lit.
Now the lower half of the keyboard will play the organ sound, and the upper
half will play the piano!
You can also step through the different Keyboard Zone assignments by double-clicking the KB Z
ONE
S
ELECT button. This is convenient when you have only one hand free and cannot reach the SHIFT
button.
To activate all three Keyboard Zones, press the KB Z
ONES 3 button. Now the keyboard is split into
three Zones. Now if you press the S
HIFT + KB ZONE SELECT button (or double-click the KB ZONE
S
ELECT button) for an Instrument section, you can step through the following options:
• LO/UP/HI indicators lit - the corresponding instrument will play across all Zones 1-3.
• LO indicator lit - the corresponding instrument will play across Zone 1 only.
• LO/UP indicators lit - the corresponding instrument will play across Zones 1-2.
• UP indicator lit - the corresponding instrument will play across Zone 2 only.
• UP/HI indicators lit - the corresponding instrument will play across Zones 2-3.
• HI indicator lit - the corresponding instrument will play across Zone 3 only.
• No indicator lit - the instrument will not play at all from the internal keyboard, but only from
MIDI. This alternative is only available when an instrument has been assigned an individual MIDI
channel (see “MIDI menu” on page 68).
SETTING SPLIT POINTS TO CHANGE ZONE RANGES
You can set the split points for Zone 2 and 3 in the following way:
• Press S
HIFT and SET LO SPLIT button repeatedly. As you can see the green split indicator above
the keyboard alternates between the available split points. There are split points at C and F in each
octave.
• You use the same procedure but with S
ET HI SPLIT button to set the split point for Zone 3.
When using two zones, the split point is set with the S
ET LO SPLIT button.
Keyboard Zone split points are shared between Panel A and B.
LAYERING INSTRUMENTS
When two or three instruments are assigned the same keyboard zones, they’re layered, i.e. play at the
same time. You can freely select which instrument(s) should play in each Zone, e.g. you could have
a piano assigned on its own to the Upper Zone, but have piano layered with organ in the Hi Zone.
Another way to layer instruments is to activate both panels simultaneously (see “Dual Panel setups”
below).
