13. Nord Sound Manager: The Quick Tour Nord Stage EX v6.x
Page 78
DOWNLOAD A COMPLETE BANK OF SOUNDS FROM THE HARD DRIVE TO THE STAGE

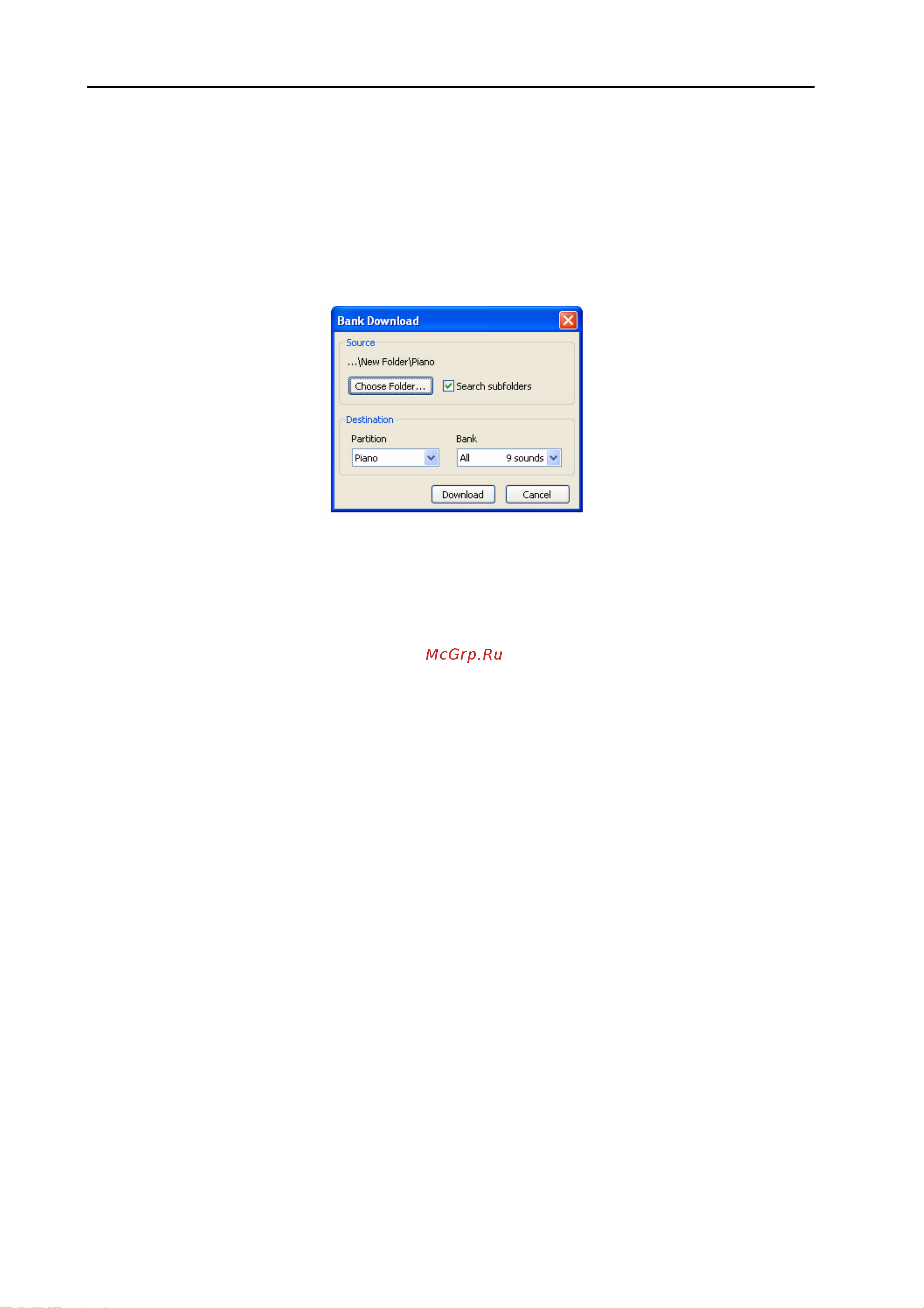

1. Click on the Bank Down tool, or select the File/Bank Download menu command (Ctrl-Shift-D).
2. Verify that the destination bank is correct and browse to the desired source folder on the compu-
ter hard drive.
• Note: When you click on Download a dialogue appears to inform you that the content of the desti-
nation bank in the Nord Stage will be replaced with that of the source file.
If you select All in the destination bank drop down, you can replace all the sounds in a partition with
those on a folder structure on the hard drive. If Search Subfolders is active, you can browse to the top
folder of a structure as the parent of the source files.
O
RGANIZE THE PROGRAM OR SYNTH PARTITIONS
By using drag and drop, you can organize the content of the Program and Synth partition.
1. Make sure that Dual View and Organize is activated in the View menu.
2. Select the banks you wish to use as the destination and the source.
3. Select and drag a sound from the destination bank to the source bank. If you drop a sound on a
free location, the sound will be moved from the source location. If you drop on a location that is
occupied, the two sounds will trade places.
S
EARCH BOX
1. By entering one or several characters in the Search Box, you can filter out the content that is pre-
sented in the lists.
This provides you with a quick way to find duplicate programs, all programs made by the mysterious
AD (Ake Danielsson) or all programs with e.g. the phrase “string” in their names.
A
UTO SELECT
By clicking on the Auto Select icon in the toolbar, you toggle the Auto Select function on or off.
When this is activated and you scroll through the Pianos, Program or Synth patch list using the com-
puter keyboard arrow keys, these will automatically be selected in the Nord Stage EX.
Double-clicking on a Piano, Program or Synth patch will also select it in the Electro 3.
