11. System functions: System menu Nord Stage EX v6.x
Page 66
11. SYSTEM FUNCTIONS

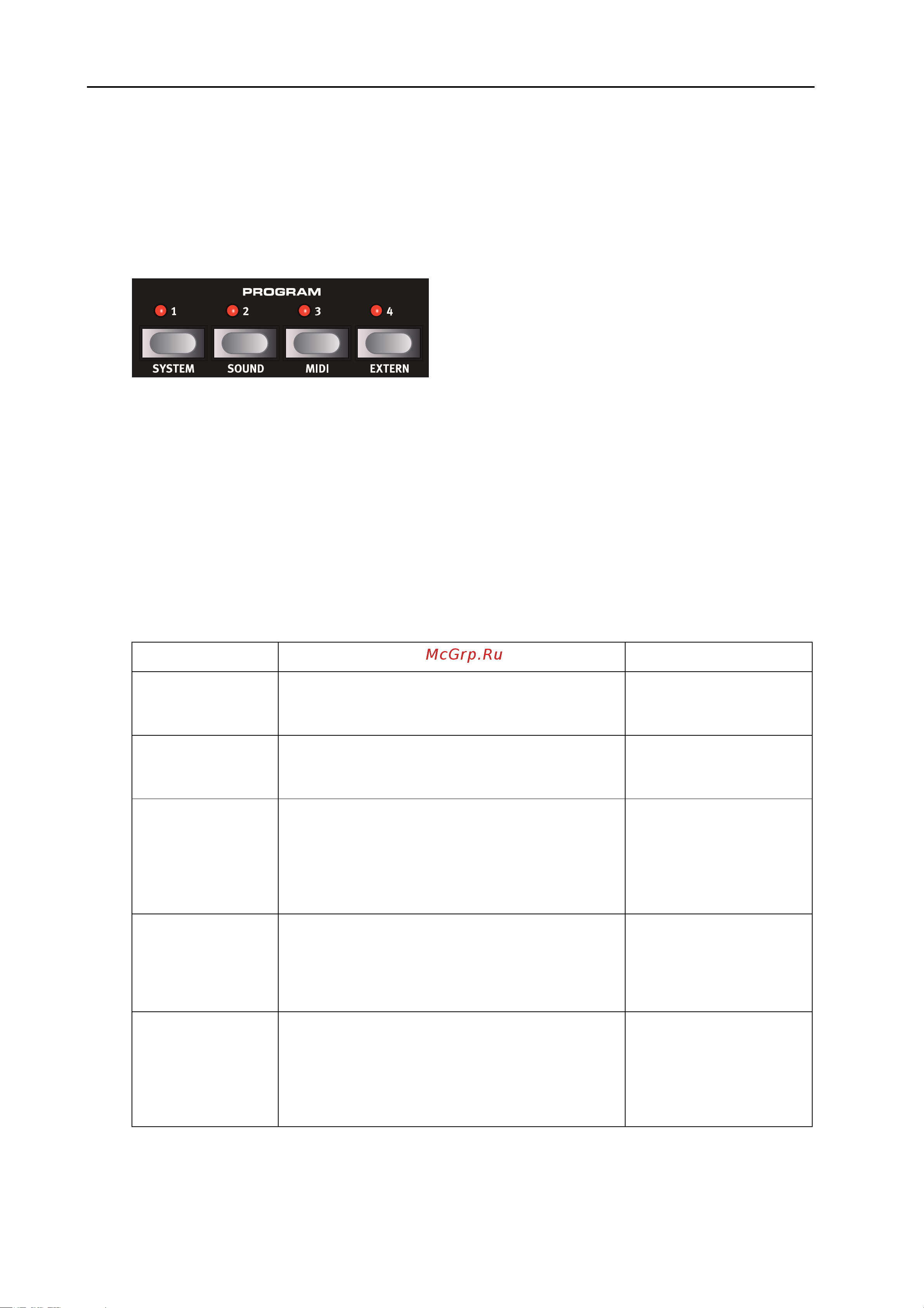

The System functions are divided into four menus; System, Sound, MIDI and Extern. Press SHIFT
and the corresponding button in the Program section to access the desired menu.
To leave a menu at any time, press the E
XIT (SHIFT) button briefly.
All changes you make to the system functions are automatically stored in Nord Stage EX, except the
Local On/Off setting, which is always set to Local On at power on.
SYSTEM MENU
Press SHIFT + SYSTEM to enter the System menu. Use the PAGE -/+ buttons to navigate between the
different pages. Push a P
AGE button once to step through the menu, or hold the button to scroll quick-
ly. Use the V
ALUE DIAL to change the settings. When you are done, press EXIT (SHIFT) briefly to
exit the menu.
The following items can be found on the System menu:
Function Description Range/Values
Transpose Transpose allows you transpose the pitch of instru-
ments up or down in semitone steps
.
-/+ 6 semitones (in steps of
1 semitone). Default value
is “0” (no transpose).
Fine Tune Fine Tune can be used to adjust the pitch of instru-
ments in finer increments.
+/- 50 Cents (half a semi-
tone). Default value is “0”
(no fine tune).
Audio Routing
Mode
The output routing of the instruments in the Nord
Stage can be determined in two different ways, glo-
bally, or independently for each program. When “Glo-
bal” is selected, the output routings will be the same
for all programs, and the global settings will override
the routings stored with each program.
Global (Default), Program
Organ Audio
Output
This allows you to set which channel output pairs (or
mono output) to use for the Organ section. Note that
you cannot have different routings for Organ A and B.
If the Audio Routing Mode (see above) is “Program”,
this setting will be saved with the program.
“1 & 2” (Default), ”3 & 4”,
”3” ,”4”
Piano Audio A/B
Output
This allows you to set which channel output pairs (or
mono output) to use for the Piano A and B sections.
Use the Panel A & B buttons to access the settings
for each panel. If the Audio Routing Mode (see
above) is set to “Program”, these settings will be
saved with the program.
“1 & 2” (Default), ”3 & 4”,
”3” ,”4”
