6. The Instruments: The Synth section Nord Stage EX v6.x

Page 36

WAVES IN THE ANALOG CATEGORY

The Analog category has ten waveforms to choose from, summarized in the chart below.

When you change waveform, the name of the currently selected waveform is shown briefly in the

AIN DISPLAY.

AWTOOTH

The sawtooth wave contains all harmonics and is the richest of the available waveforms. It is suitable

for all sorts of sounds.

The T

IMBRE knob does not have any effect on the sawtooth wave.

Wave display Waveform Explanation

S Sawtooth A plain sawtooth oscillator.

Sd Sawtooth detuned Two sawtooth oscillators with adjustable relative

pitch (Timbre knob) and detune (Unison knob).

S\ Sawtooth synced A sawtooth oscillator with adjustable pitch offset,

hard-synced by a second oscillator.

P Pulse One pulse oscillator

with variable pulse width.

PF Pulse fixed time One pulse oscillator with adjustable pulse width.

The pulse width is constant over the keyboard.

P\ Pulse synced A pulse oscillator with adjustable pitch offset,

hard-synced by a second oscillator.

t Triangle A plain triangle wave oscillator.

t\ Triangle synced A triangle oscillator with adjustable pitch offset,

hard-synced by a second oscillator.

C\ Cos synced A cosine oscillator with adjustable pitch offset,

hard-synced by a second oscillator.

n Noise A white noise generator.

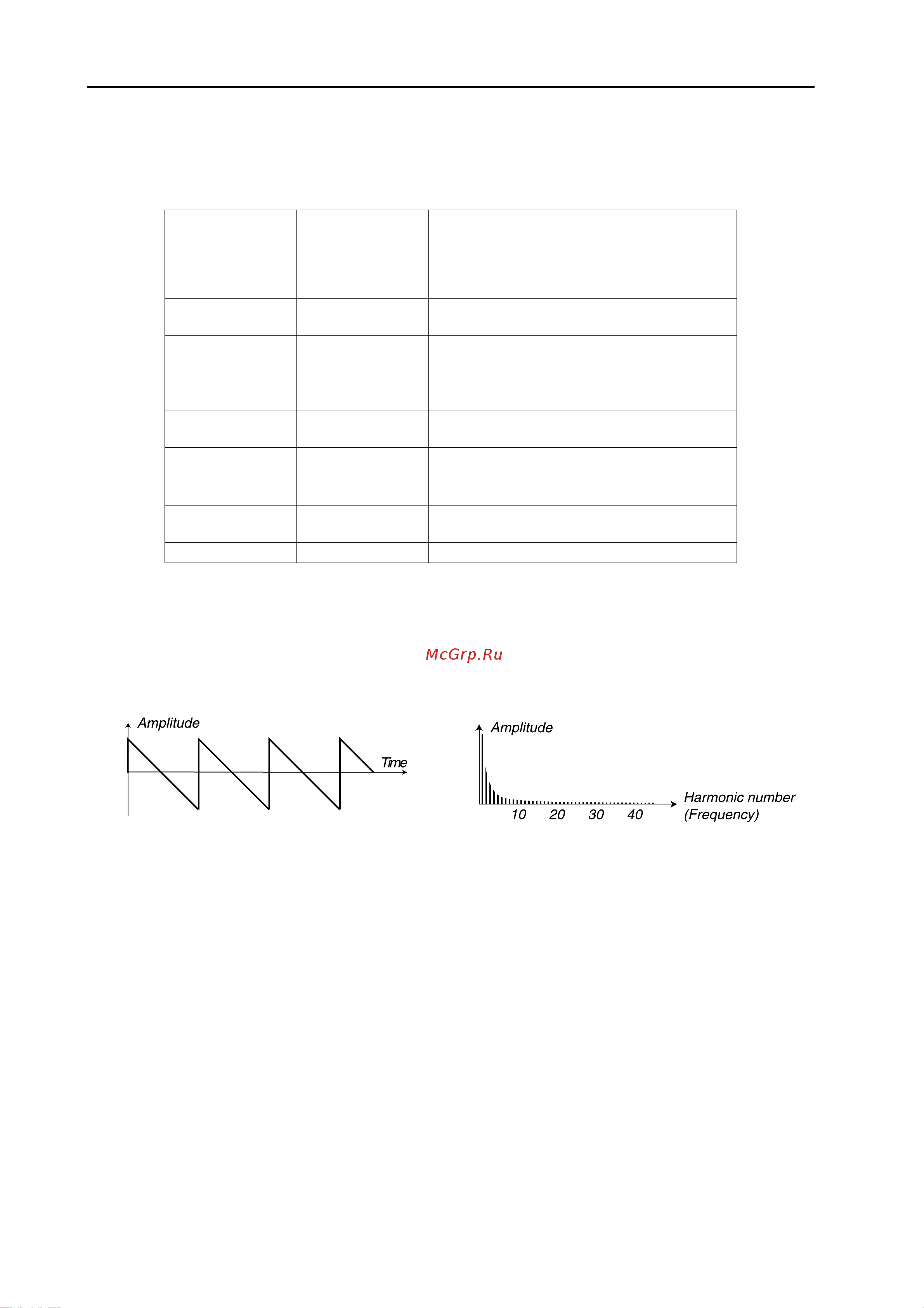

The sawtooth signal shape.

The sawtooth signal frequency spectrum.
