Nord Stage EX v6.x 10. The Extern section: About the Extern section
Page 63

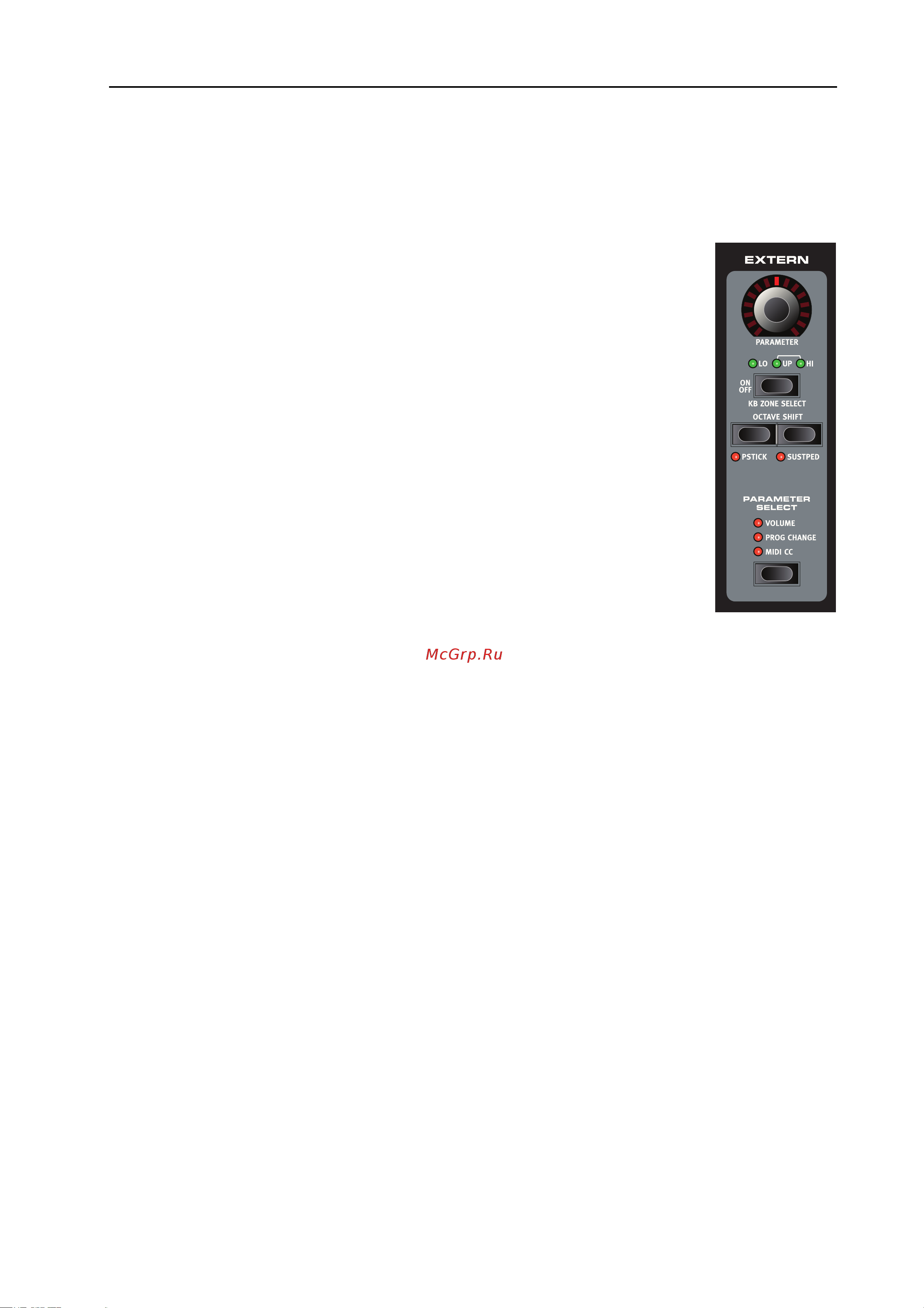

10. THE EXTERN SECTION
ABOUT THE EXTERN SECTION
When developing Nord Stage EX, Clavia aimed to make external control an inte-
grated feature of the instrument, where all the essential external MIDI control
functions would be as accessible and easy to use as the functions and parameters
for the built-in instruments. That’s what you get in the Extern section.
The Extern in most cases behaves like the internal instruments. For example, it is
enabled and assigned a keyboard zone in the same way. It has a multi-purpose Pa-
rameter knob, which is used to send MIDI Volume, Program Change and Contin-
uous Controller messages. You select the current Parameter focus with the
P
ARAMETER SELECT button. Detailed settings for MIDI Channel, Program
Change and Continuous Controllers, among other things, are accessed through the
Extern Menu (see page 70).
SETTING UP
1. Connect a MIDI cable from Nord Stage EX’s MIDI Out to the MIDI In on the
external device.
2. Press S
HIFT and the EXTERN button to access the Extern menu.
3. Use The P
AGE buttons to access the “Extern MIDI A/B Channel” page.
4. Use the V
ALUE DIAL to select the MIDI channel (1-16) you would like to transmit over. Use the
P
ANEL A and B buttons to access the channel setting for each panel. Press the EXIT (SHIFT) but-
ton briefly to exit the menu.
5. Set the external instrument to receive on the same MIDI channel.
USING THE EXTERN SECTION
ACTIVATING
Before Extern MIDI is sent out from Nord Stage EX, you have to activate the Extern section. This is
done by pressing the O
N button under the PARAMETER rotary encoder.
ABOUT KEYBOARD ZONES
There are two Extern sections, one for each panel. You can use Keyboard Zones to create splits and
layers just like for the internal instruments. If you set the Extern section to only play in the LO Zone,
the external instrument will only respond to notes played in this Zone. In other words, it works trans-
parently together with the built-in instruments!
