Zyxel GS-2024 EE [113/266] Link aggregation setting
![Zyxel GS-2024 EE [113/266] Link aggregation setting](/views2/1010653/page113/bg71.png)
Chapter 14 Link Aggregation
GS-2024 User’s Guide
113
14.4 Link Aggregation Setting
Click Advanced Application > Link Aggregation > Link Aggregation Setting to display
the screen shown next. See Section 14.1 on page 111 for more information on link
aggregation.

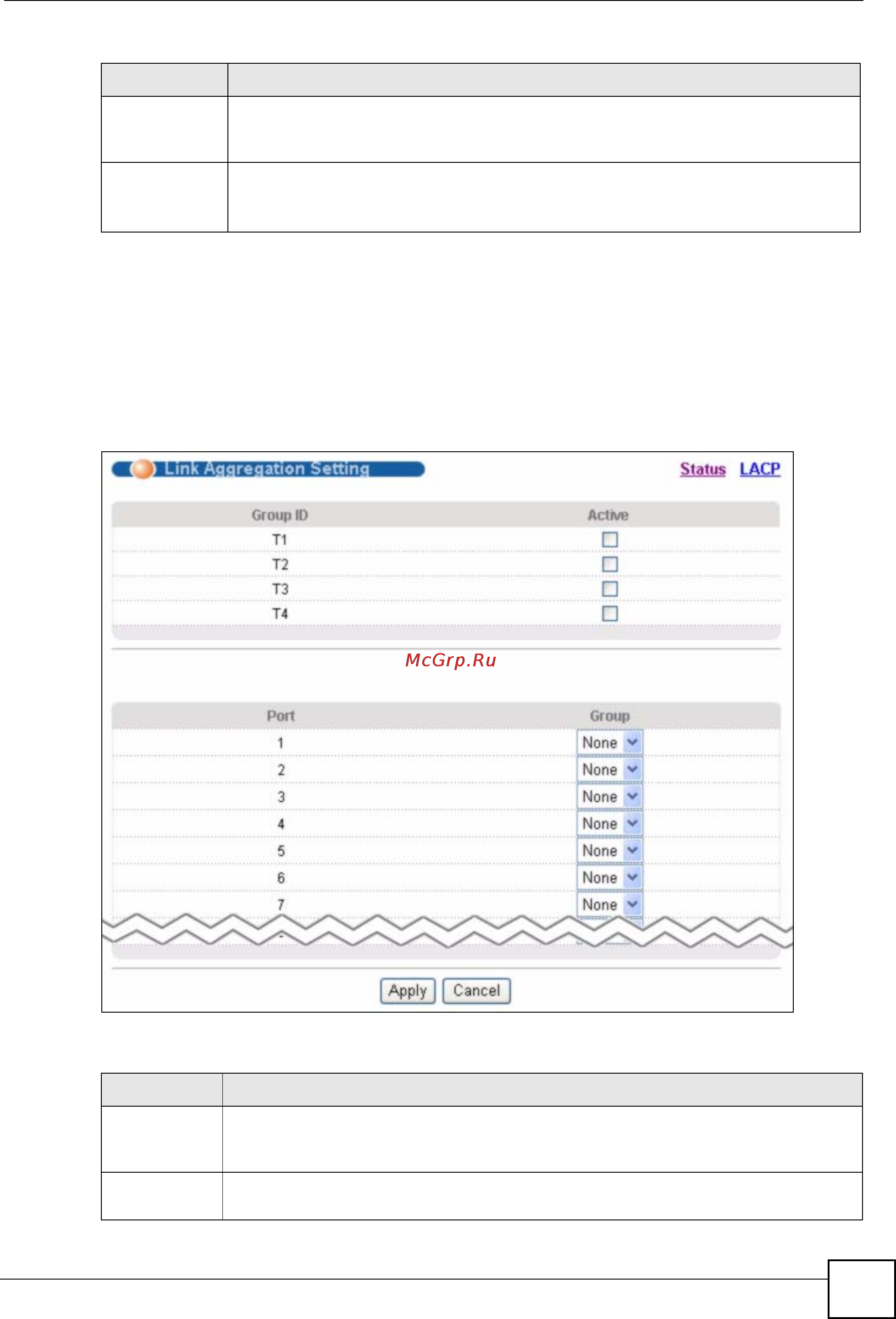

Figure 52 Advanced Application > Link Aggregation > Link Aggregation Setting
The following table describes the labels in this screen.
Aggregator ID Link Aggregator ID consists of the following: system priority, MAC address, key, port
priority and port number. Refer to Section 14.2.1 on page 112 for more information on
this field.
Status This field displays how these ports were added to the trunk group. It displays:
• Static - if the ports are configured as static members of a trunk group.
• LACP - if the ports are configured to join a trunk group via LACP.
Table 32 Advanced Application > Link Aggregation Status (continued)
LABEL DESCRIPTION
Table 33 Advanced Application > Link Aggregation > Link Aggregation Setting
LABEL DESCRIPTION
Link
Aggregation
Setting
This is the only screen you need to configure to enable static link aggregation.
Group ID The field identifies the link aggregation group, that is, one logical link containing
multiple ports.
