Chapter 25 Access Control
GS-2024 User’s Guide
186
25.3.4 Configuring SNMP
From the Access Control screen, display the SNMP screen. You can click Access Control to
go back to the Access Control screen.

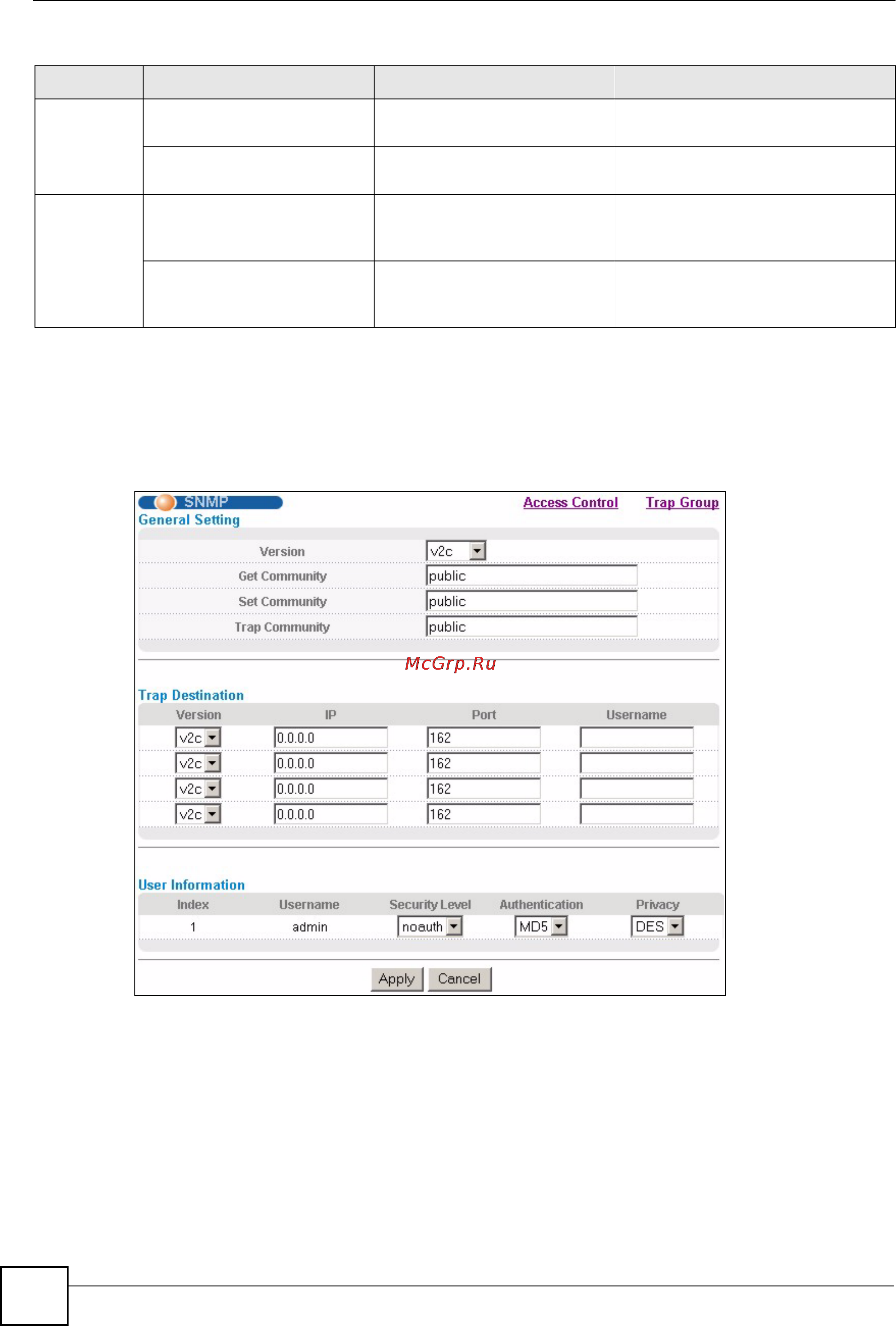

Figure 103 Management > Access Control > SNMP
mactable MacTableFullEventOn 1.3.6.1.4.1.890.1.5.8.15.28.2.1 This trap is sent when more than
99% of the MAC table is used.
MacTableFullEventClear 1.3.6.1.4.1.890.1.5.8.15.28.2.2 This trap is sent when less than
95% of the MAC table is used.
rmon RmonRisingAlarm 1.3.6.1.4.1.890.1.5.1.1.16.0.1 This trap is sent when a variable
goes over the RMON "rising"
threshold.
RmonFallingAlarm 1.3.6.1.4.1.890.1.5.1.1.16.0.2 This trap is sent when the variable
falls below the RMON "falling"
threshold.
Table 70 SNMP Switch Traps (continued)
OPTION OBJECT LABEL OBJECT ID DESCRIPTION
