Chapter 6 System Status and Port Statistics
GS-2024 User’s Guide
59

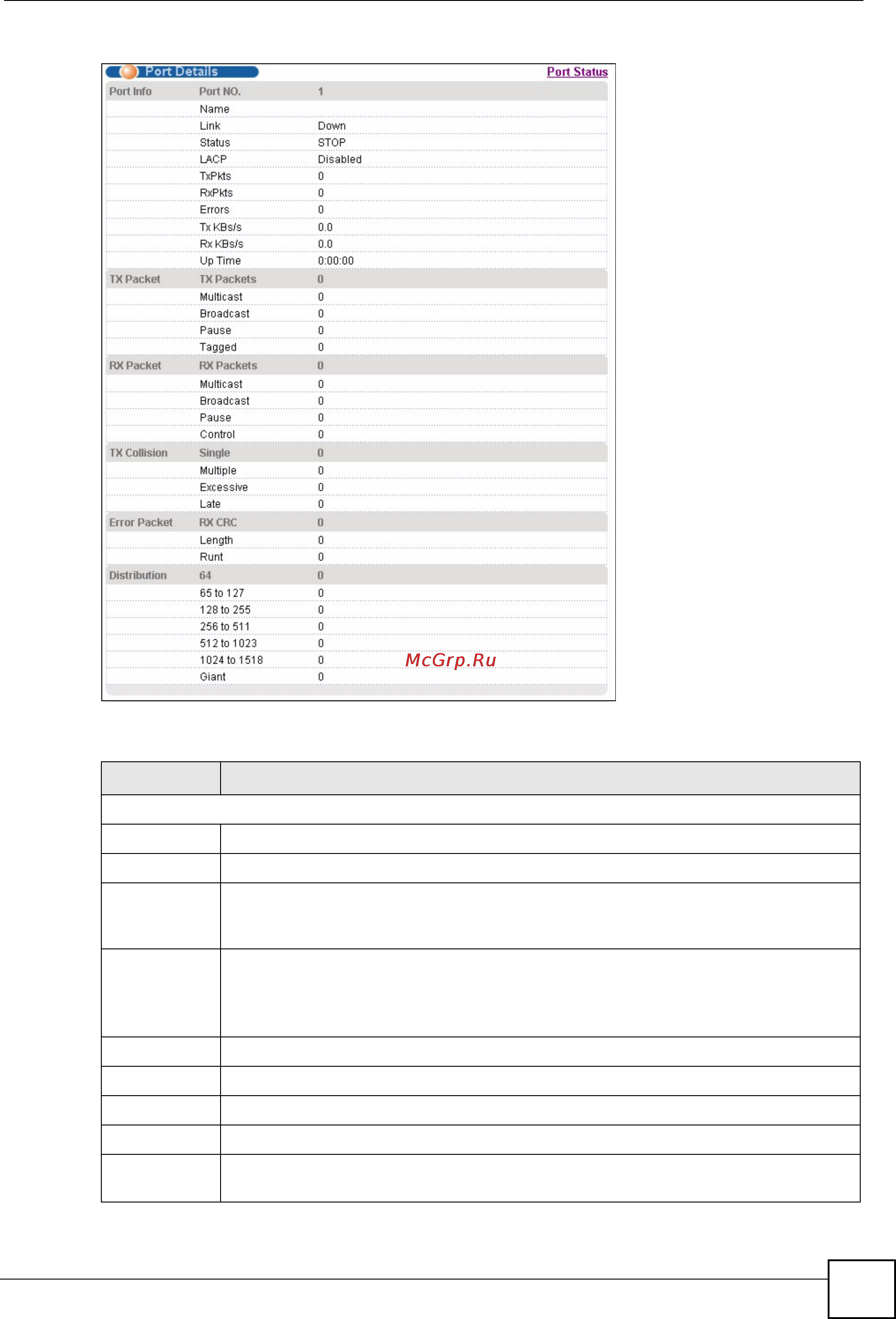

Figure 23 Status: Port Details
The following table describes the labels in this screen.
Table 7 Status > Port Details
LABEL DESCRIPTION
Port Info
Port NO. This field displays the port number you are viewing.
Name This field displays the name of the port.
Link This field displays the speed (either 10M for 10Mbps, 100M for 100Mbpsl, 1000M for
1000 Mbps, and 10G for 10 Gbps) and the duplex (F for full duplex or H for half
duplex). It also shows the cable type (Copper or Fiber).
State If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the
port. (See Section 10.1.3 on page 92 for more information.)
If STP is disabled, this field displays FORWARDING if the link is up, otherwise, it
displays STOP.
LACP This field shows if LACP is enabled on this port or not.
TxPkts This field shows the number of transmitted frames on this port
RxPkts This field shows the number of received frames on this port
Errors This field shows the number of received errors on this port.
Tx KB/s This field shows the transmission speed of data sent on this port in kilobytes per
second.
