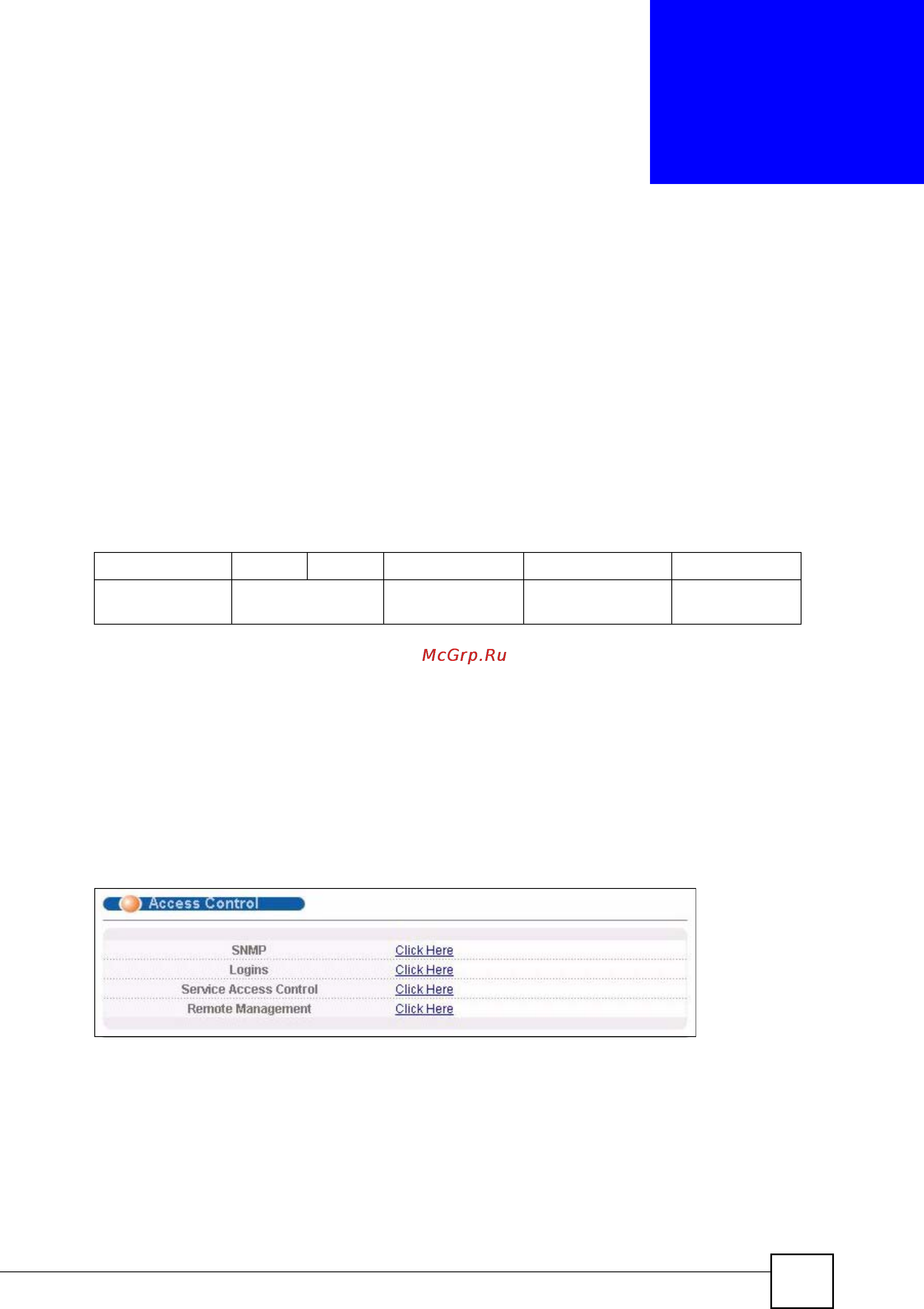

GS-2024 User’s Guide
181
CHAPTER 25
Access Control
This chapter describes how to control access to the Switch.
25.1 Access Control Overview
A console port and FTP are allowed one session each, Telnet and SSH share nine sessions, up
to five Web sessions (five different usernames and passwords) and/or limitless SNMP access
control sessions are allowed.
A console port access control session and Telnet access control session cannot coexist when
multi-login is disabled. See the CLI reference guide for more information on disabling multi-
login.
25.2 The Access Control Main Screen
Click Management > Access Control in the navigation panel to display the main screen as
shown.
Figure 101 Management > Access Control
Table 64 Access Control Overview
Console Port SSH Telnet FTP Web SNMP
One session Share up to nine
sessions
One session Up to five accounts No limit
