GS-2024 User’s Guide
53
CHAPTER 5
Initial Setup Example
This chapter shows how to set up the switch for an example network.
5.1 Overview
The following lists the configuration steps for the initial setup:
• Create a VLAN
• Set port VLAN ID
• Configure the switch IP management address
5.1.1 Creating a VLAN
VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can
do this with port-based VLAN or tagged static VLAN with fixed port members.
In this example, you want to configure port 10 as a member of VLAN 2.

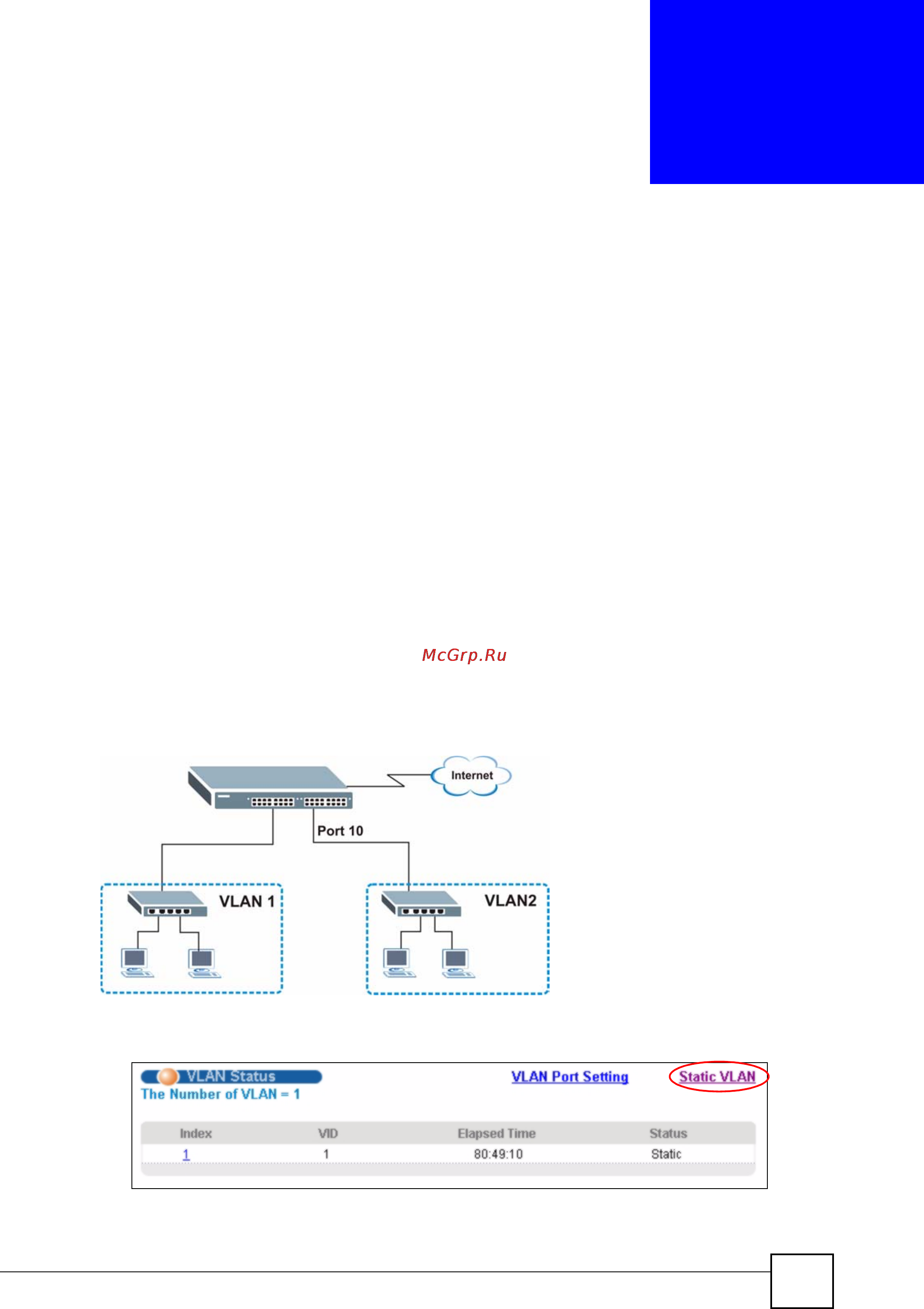

Figure 19 Initial Setup Network Example: VLAN
1 Click Advanced Application and VLAN in the navigation panel and click the Static
VLAN link.
