Chapter 25 Access Control
GS-2024 User’s Guide
195

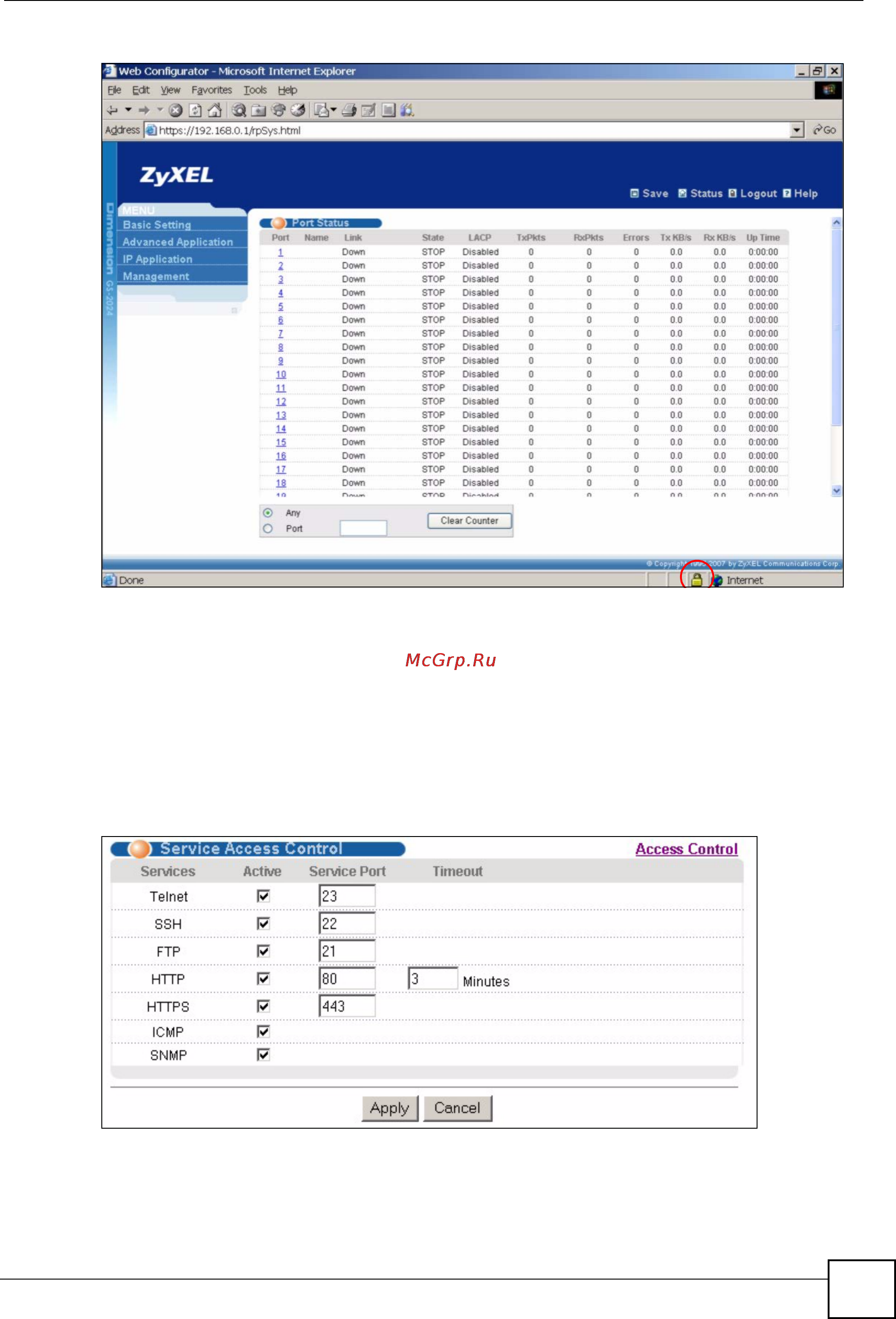

Figure 112 Example: Lock Denoting a Secure Connection
25.9 Service Port Access Control
Service Access Control allows you to decide what services you may use to access the Switch.
You may also change the default service port and configure “trusted computer(s)” for each
service in the Remote Management screen (discussed later). Click Access Control to go
back to the main Access Control screen.
Figure 113 Management > Access Control > Service Access Control
