Chapter 23 DHCP
GS-2024 User’s Guide
172
23.4.1 Example: DHCP Relay for Two VLANs
The following example displays two VLANs (VIDs 1 and 2) for a campus network. Two
DHCP servers are installed to serve each VLAN. The system is set up to forward DHCP
requests from the dormitory rooms (VLAN 1) to the DHCP server with an IP address of
192.168.1.100. Requests from the academic buildings (VLAN 2) are sent to the other DHCP
server with an IP address of 172.23.10.100.

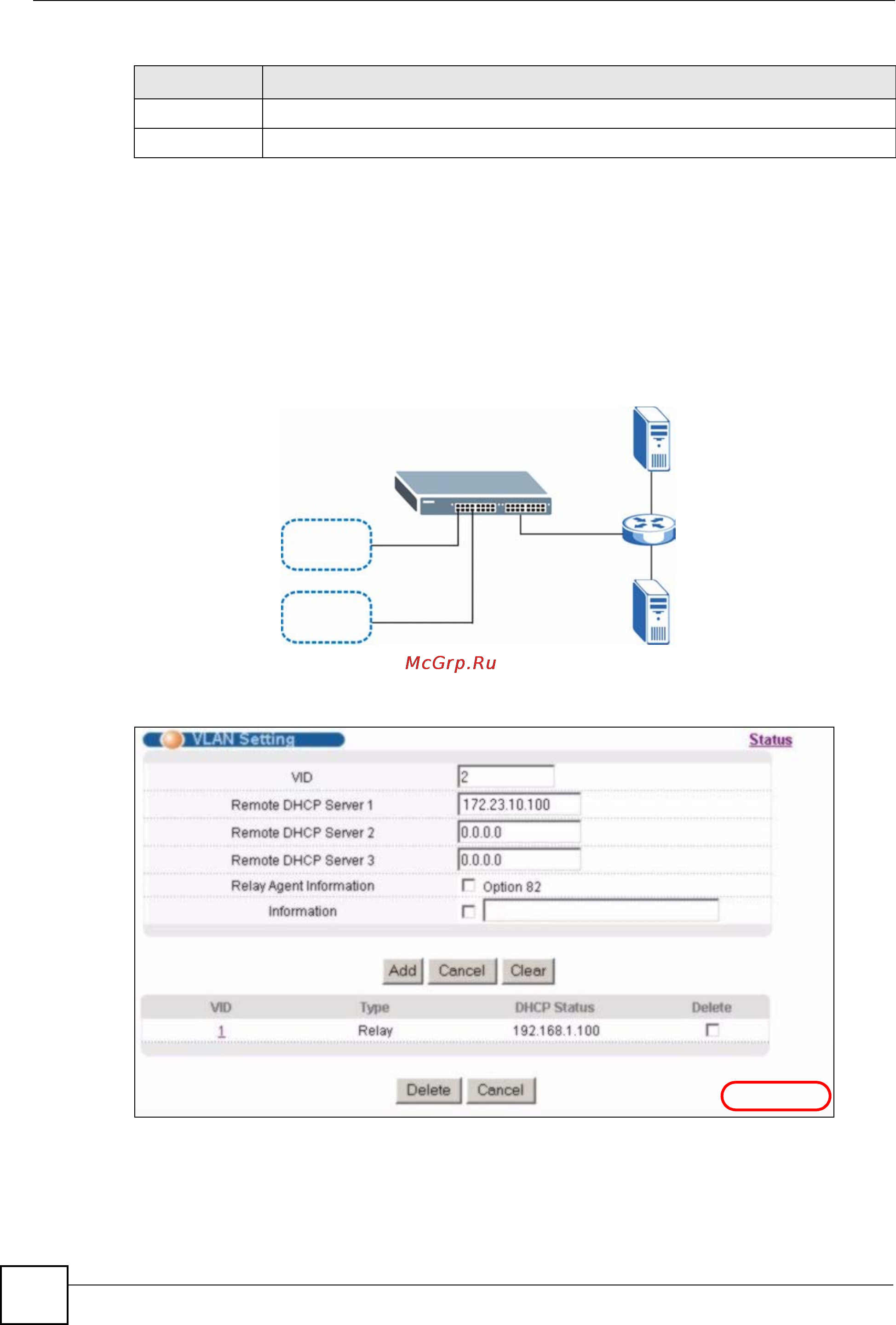

Figure 93 DHCP Relay for Two VLANs
For the example network, configure the VLAN Setting screen as shown.
Figure 94 DHCP Relay for Two VLANs Configuration Example
Delete Select the configuration entries you want to remove and click Delete to remove them.
Cancel Click Cancel to clear the Delete check boxes.
Table 60 IP Application > DHCP > VLAN (continued)
LABEL DESCRIPTION
VLAN 1
VLAN 2
DHCP:
192.168.1.100
DHCP:
172.23.10.100
example
