Chapter 25 Access Control
GS-2024 User’s Guide
190

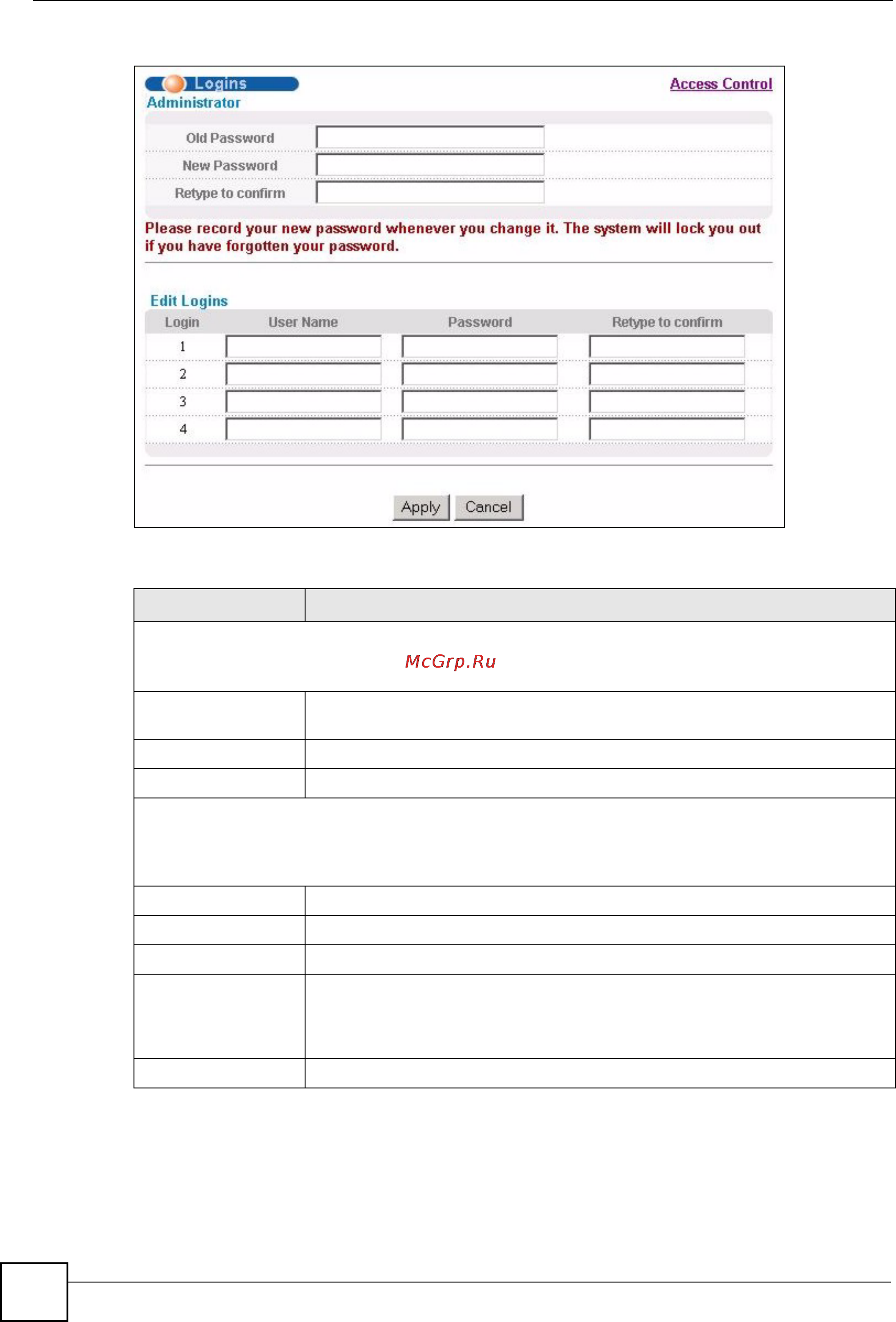

Figure 105 Management > Access Control > Logins
The following table describes the labels in this screen.
Table 73 Management > Access Control > Logins
LABEL DESCRIPTION
Administrator
This is the default administrator account with the “admin” user name. You cannot change the default
administrator user name. Only the administrator has read/write access.
Old Password Type the existing system password (1234 is the default password when
shipped).
New Password Enter your new system password.
Retype to confirm Retype your new system password for confirmation
Edit Logins
You may configure passwords for up to four users. These users have read-only access. You can give
users higher privileges via the CLI. For more information on assigning privileges see the CLI reference
guide.
User Name Set a user name (up to 32 ASCII characters long).
Password Enter your new system password.
Retype to confirm Retype your new system password for confirmation
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch
loses these changes if it is turned off or loses power, so use the Save link on
the top navigation panel to save your changes to the non-volatile memory when
you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
