Chapter 10 Spanning Tree Protocol
GS-2024 User’s Guide
95

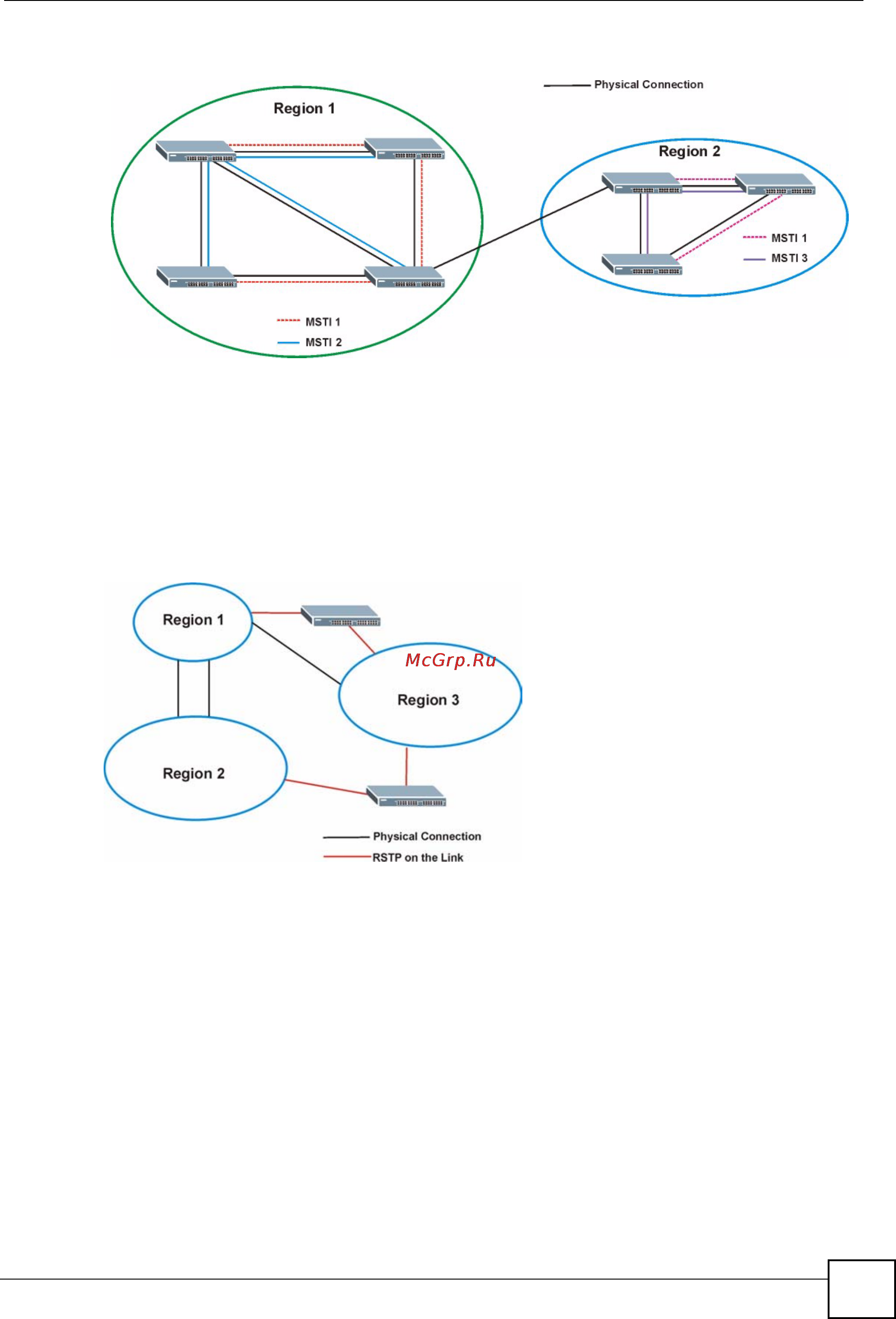

Figure 40 MSTIs in Different Regions
10.1.4.4 Common and Internal Spanning Tree (CIST)
A CIST represents the connectivity of the entire network and it is equivalent to a spanning tree
in an STP/RSTP. The CIST is the default MST instance (MSTID 0). Any VLANs that are not
members of an MST instance are members of the CIST. In an MSTP-enabled network, there is
only one CIST that runs between MST regions and single spanning tree devices. A network
may contain multiple MST regions and other network segments running RSTP.
Figure 41 MSTP and Legacy RSTP Network Example
10.2 Spanning Tree Protocol Status Screen
The Spanning Tree Protocol status screen changes depending on what standard you choose to
implement on your network. Click Advanced Application > Spanning Tree Protocol to see
the screen as shown.
