Zyxel GS-2024 EE [118/266] Port authentication configuration
![Zyxel GS-2024 EE [118/266] Port authentication configuration](/views2/1010653/page118/bg76.png)
Chapter 15 Port Authentication
GS-2024 User’s Guide
118

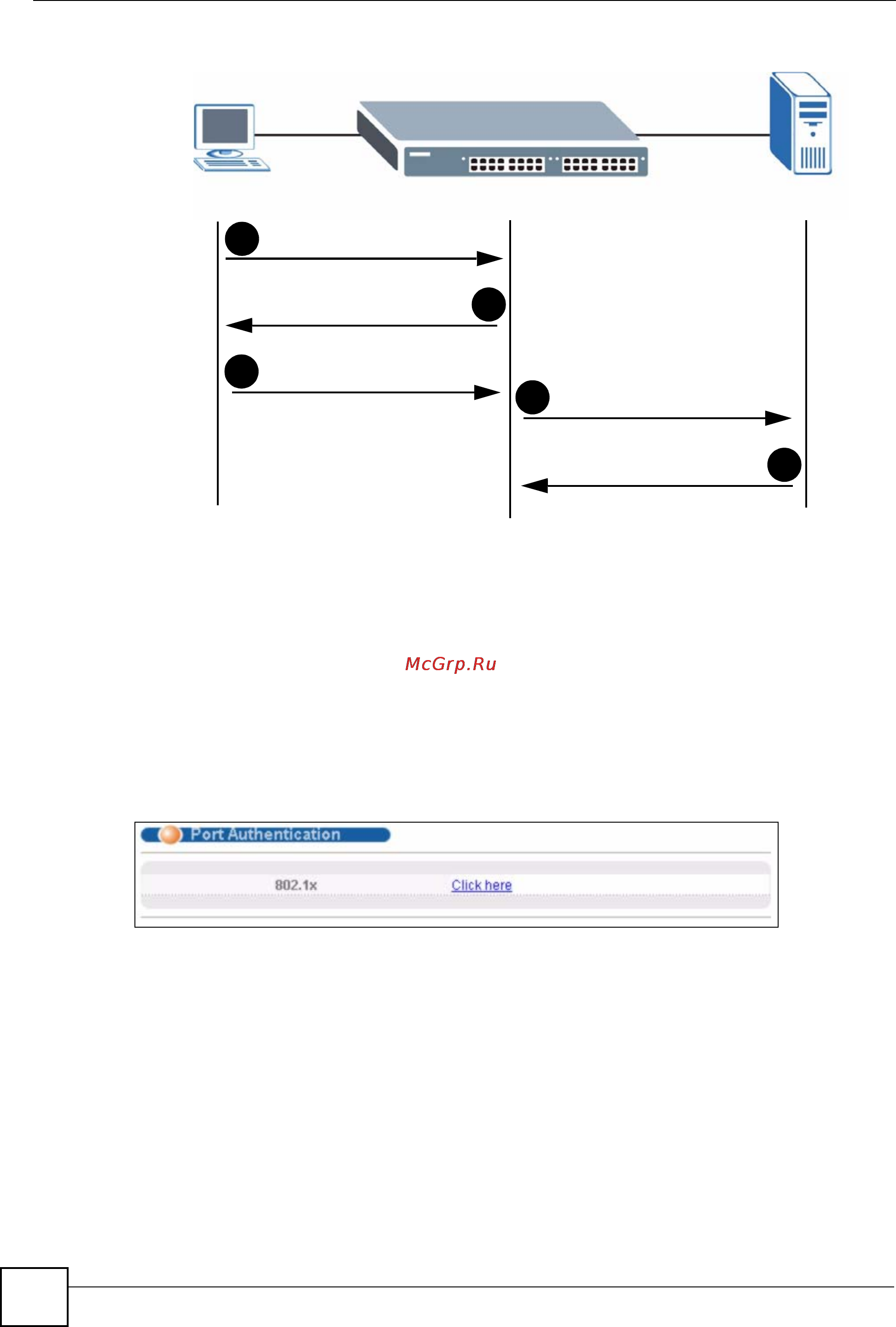

Figure 56 IEEE 802.1x Authentication Process
15.2 Port Authentication Configuration
To enable port authentication, first activate the port authentication method(s) you want to use
(both on the Switch and the port(s)), then configure the RADIUS server settings in the Auth
and Acct > Radius Server Setup screen.
To activate a port authentication method, click Advanced Application > Port Authentication
in the navigation panel. Select a port authentication method in the screen that appears.
Figure 57 Advanced Application > Port Authentication
15.2.1 Activate IEEE 802.1x Security
Use this screen to activate IEEE 802.1x security. In the Port Authentication screen click
802.1x to display the configuration screen as shown.
New Connection
Authentication Request
Authentication Reply
1
4
5
Login Credentials
Login Info Request
3
2
Session Granted/Denied
