Chapter 7 Basic Setting
GS-2024 User’s Guide
68

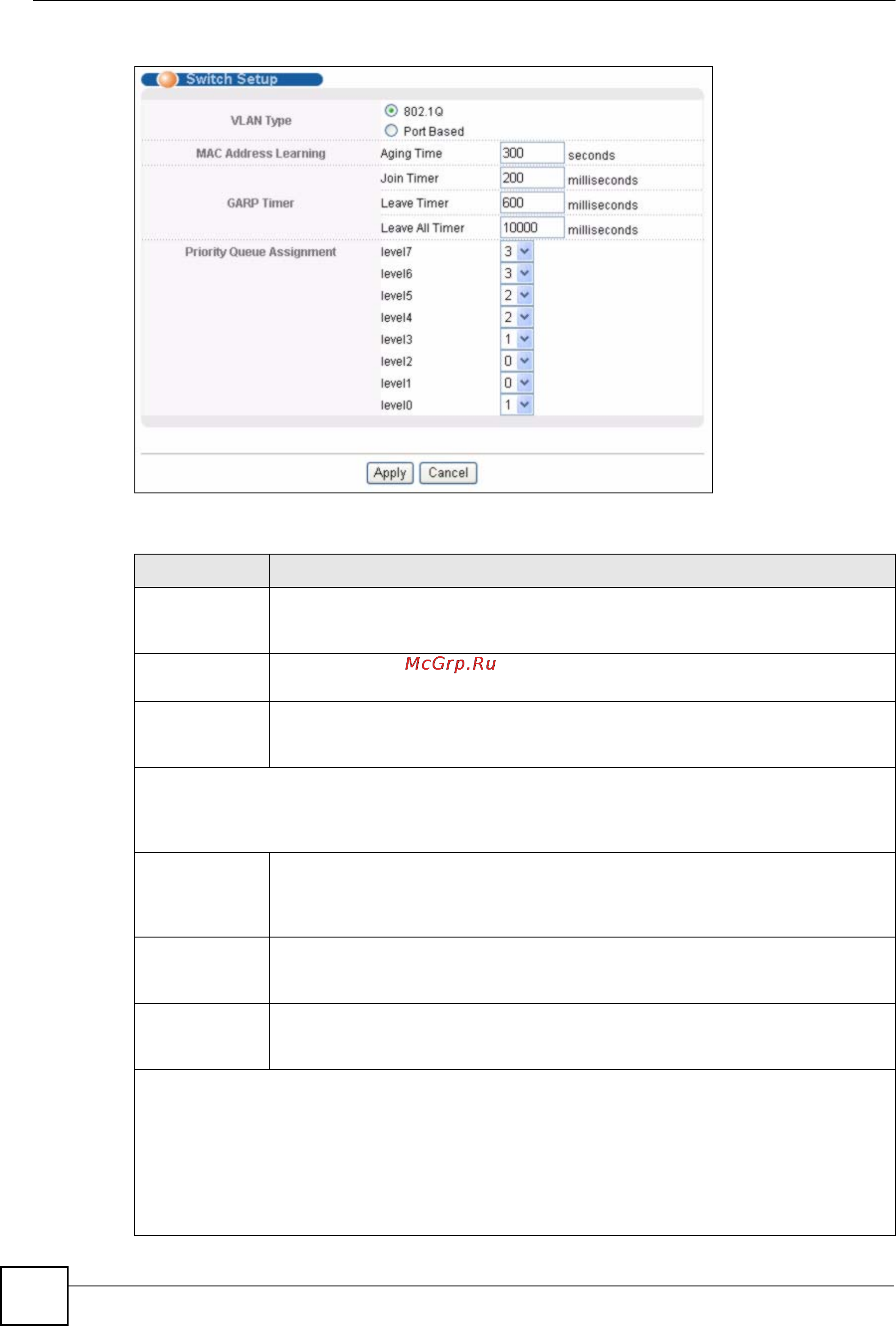

Figure 26 Basic Setting > Switch Setup
The following table describes the labels in this screen.
Table 10 Basic Setting > Switch Setup
LABEL DESCRIPTION
VLAN Type Choose 802.1Q or Port Based. The VLAN Setup screen changes depending on
whether you choose 802.1Q VLAN type or Port Based VLAN type in this screen.
See Chapter 8 on page 77 for more information.
MAC Address
Learning
MAC address learning reduces outgoing traffic broadcasts. For MAC address
learning to occur on a port, the port must be active.
Aging Time Enter a time from 10 to 3000 seconds. This is how long all dynamically learned MAC
addresses remain in the MAC address table before they age out (and must be
relearned).
GARP Timer: Switches join VLANs by making a declaration. A declaration is made by issuing a Join
message using GARP. Declarations are withdrawn by issuing a Leave message. A Leave All
message terminates all registrations. GARP timers set declaration timeout values. See Chapter 8 on
page 77 for more background information.
Join Timer Join Timer sets the duration of the Join Period timer for GVRP in milliseconds. Each
port has a Join Period timer. The allowed Join Time range is between 100 and
65535 milliseconds; the default is 200 milliseconds. See Chapter 8 on page 77 for
more background information.
Leave Timer Leave Time sets the duration of the Leave Period timer for GVRP in milliseconds.
Each port has a single Leave Period timer. Leave Time must be two times larger
than Join Timer; the default is 600 milliseconds.
Leave All Timer Leave All Timer sets the duration of the Leave All Period timer for GVRP in
milliseconds. Each port has a single Leave All Period timer. Leave All Timer must be
larger than Leave Timer.
Priority Queue Assignment
IEEE 802.1p defines up to eight separate traffic types by inserting a tag into a MAC-layer frame that
contains bits to define class of service. Frames without an explicit priority tag are given the default
priority of the ingress port. Use the following fields to configure the priority level-to-physical queue
mapping.
The Switch has four physical queues that you can map to the eight priority levels. On the Switch, traffic
assigned to higher index queues gets through faster while traffic in lower index queues is dropped if
the network is congested.
