Chapter 25 Access Control
GS-2024 User’s Guide
194
25.8.2 Netscape Navigator Warning Messages
When you attempt to access the Switch HTTPS server, a Website Certified by an Unknown
Authority screen pops up asking if you trust the server certificate. Click Examine Certificate
if you want to verify that the certificate is from the Switch.
If Accept this certificate temporarily for this session is selected, then click OK to continue
in Netscape.
Select Accept this certificate permanently to import the Switch’s certificate into the SSL
client.

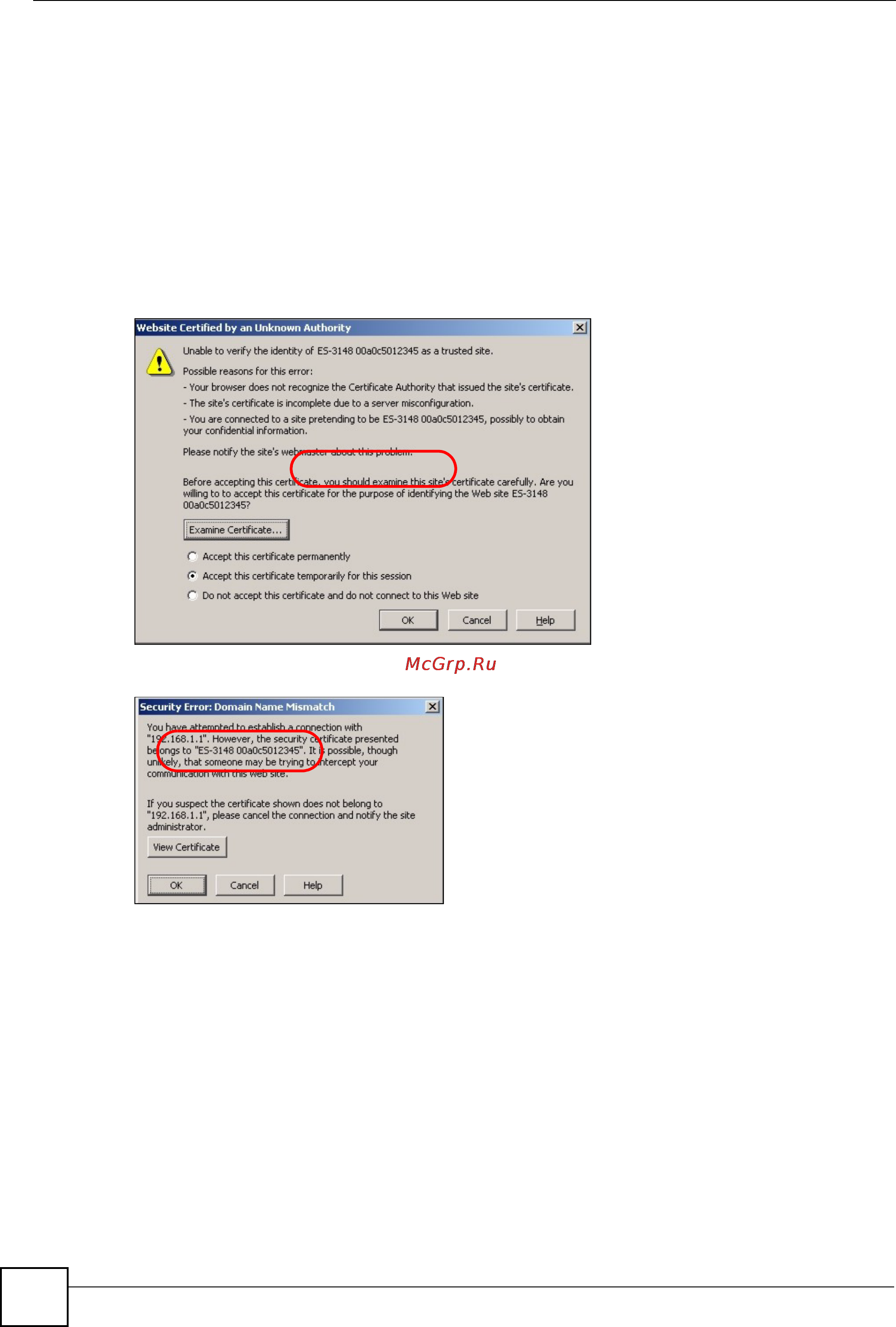

Figure 110 Security Certificate 1 (Netscape)
Figure 111 Security Certificate 2 (Netscape)
25.8.3 The Main Screen
After you accept the certificate and enter the login username and password, the Switch main
screen appears. The lock displayed in the bottom right of the browser status bar denotes a
secure connection.
