GS-2024 User’s Guide
199
CHAPTER 26
Diagnostic
This chapter explains the Diagnostic screen.
26.1 Diagnostic
Click Management > Diagnostic in the navigation panel to open this screen. Use this screen
to check system logs, ping IP addresses or perform port tests.

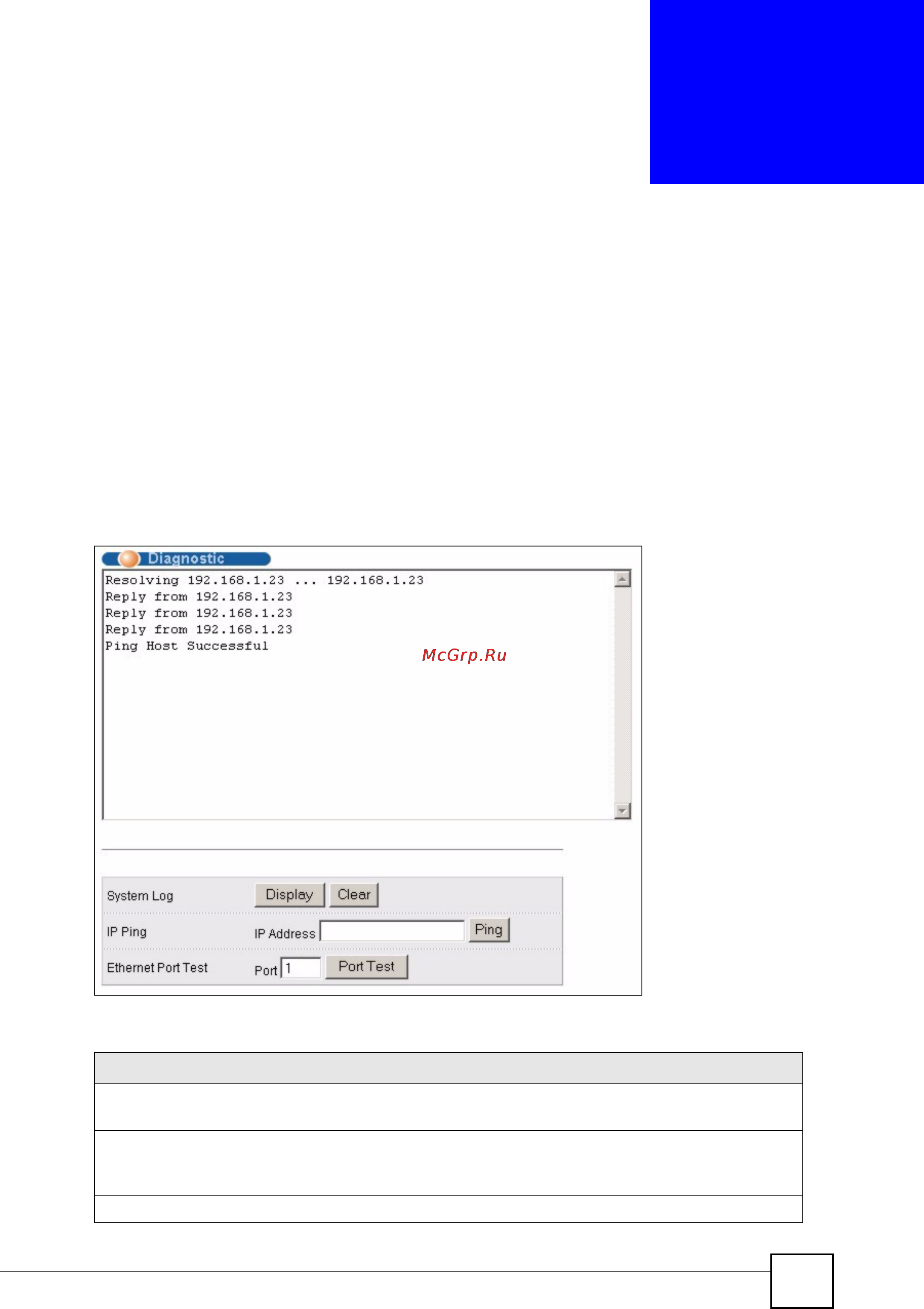

Figure 115 Management > Diagnostic
The following table describes the labels in this screen.
Table 76 Management > Diagnostic
LABEL DESCRIPTION
System Log Click Display to display a log of events in the multi-line text box.
Click Clear to empty the text box and reset the syslog entry.
IP Ping Type the IP address of a device that you want to ping in order to test a
connection.
Click Ping to have the Switch ping the IP address (in the field to the left).
Ethernet Port Test Enter a port number and click Port Test to perform an internal loopback test.
